spray balls for tank cleaning,rotating cip tank spray balls

 Tip: click the picture to enlarge.
    Rotating tank washing spray nozzle
    Model no.: D10





    Working Principle:
    Using the force and reaction force of cleaning liquid to generate self-rotation, through scientific nozzle design on the ball head, fan-shaped liquid surface is sprayed to the surface of tank to achieve the purpose of cleaning.




    Features & Benefits:
    Double bearing design, operation in every direction is possible;  self-cleaning and self-lubricating design, in line with sanitary requirements; unique opening design can achieve 360 ° coverage cleaning, especially the spray lance and the top of tank can also be thoroughly cleaned.




    Technical Data:

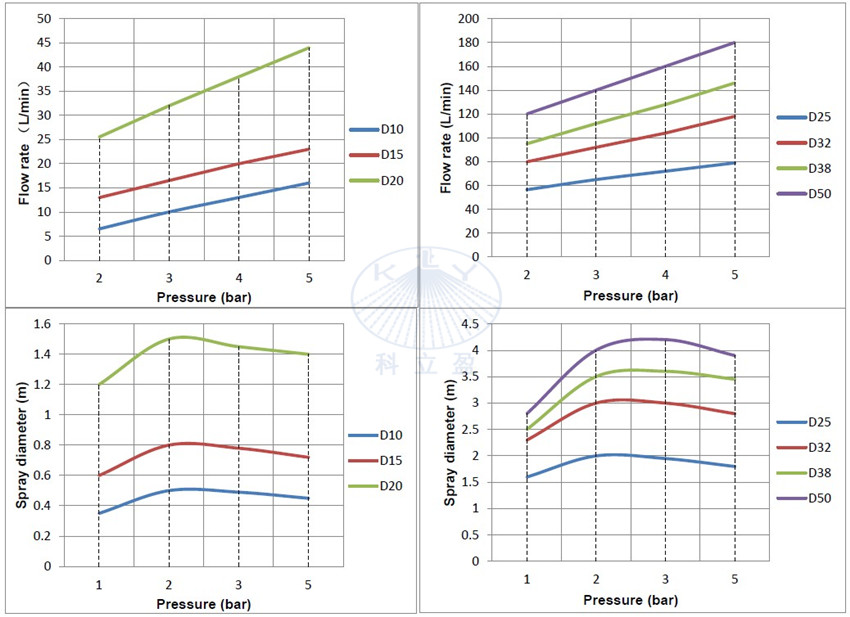

    Performance Curve:

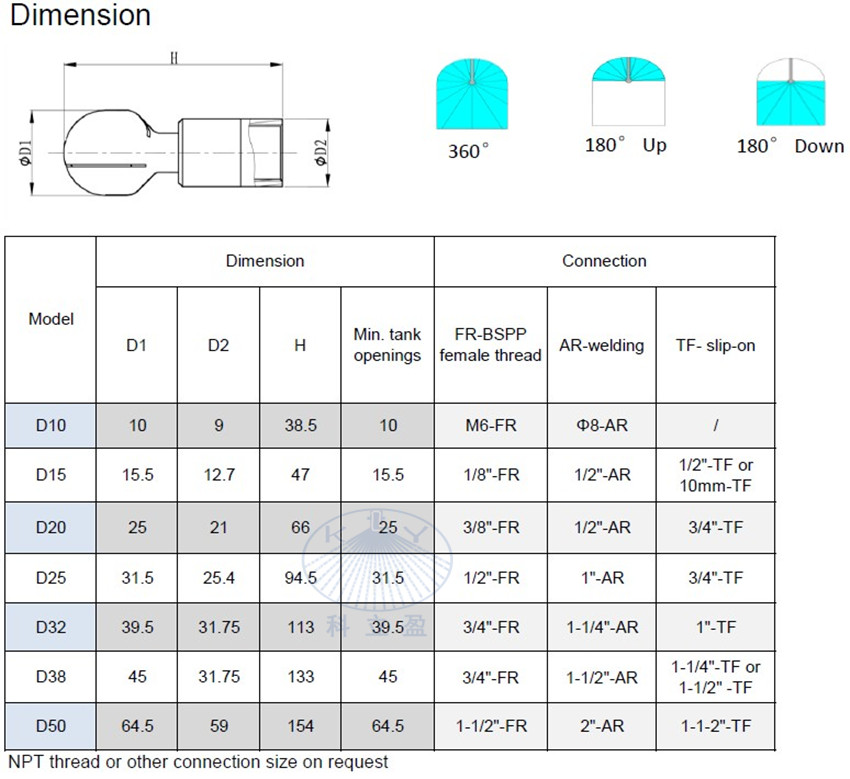

    Dimensions:

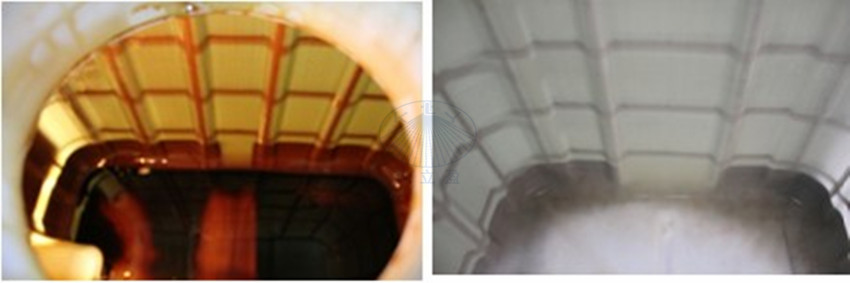

    Cleaning Effection ( Before & After ):





    Application:

    Rotating tank washing spray nozzle D10 micro whirly 360 spray cip spray nozzle ,spray balls for tank cleaning

    Rotary spray ball use the cleaning fluid itself to provide coverage and impact. The physical flow of the cleaning media causes the rotary spray ball to rotate, with fan jets laying out a swirling pattern across the inner surface of the vessel.

    These jets provide a combination of physical impact and a variable falling film of cleaning fluid that covers all the internal surfaces of the tank or reactor. The variable falling film has higher heat and mass transfer coefficients than the falling film produced by the static spray ball.

    The spray ball also are self-cleaning by directing the cleaning media through the rotating bearing track and onto the neck of the elongated head.

    Rotary spray balls are a cost-effective alternative to traditional static spray balls because they use only small volumes of cleaning fluid at low pressure.

    These rotary spray balls are suitable for virtually all kinds of industrial cleaning, including tanks, reactors, vessels and other containers.

    cleaning nozzle.jpg
