  1. Tank cleaning machine > Product >

portable twin nozzle fuel storage tank cleaning machine

 Tip: click the picture to enlarge.

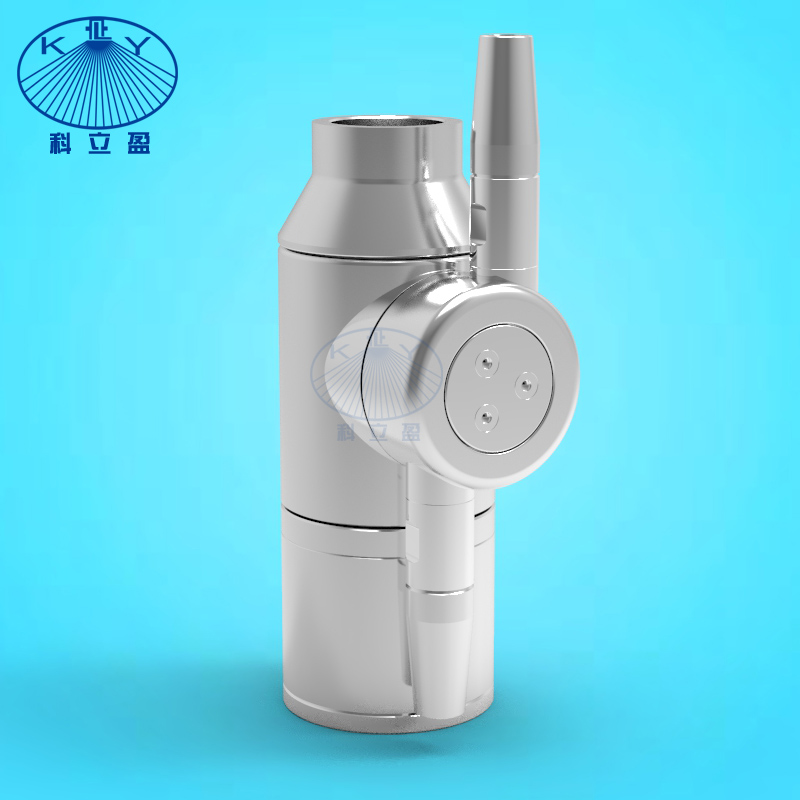

dg30 tank cleaning machine
  • Product introduction
  • Inquiry now

    High impact 3D rotary tank washer

    Model number: DG30 tank cleaning machine



    Working Principle:


    Impeller is driven by cleaning fluid and drives internal reduction mechanism. Gear mechanism operates according to set track to realize the revolution and the rotation, thereby achieving 360° thorough cleaning.




    Features & Benefits:



     ● Optimized structural design results in a water jet that produces greater impact

     ● Excellent sealing design, less than 3% leakage, thus saves cleaning fluid

     ● Independent gearbox design protects gear from damage and can work in poor water quality

     ● Adopt high hardness and wear resistant materials, long service life
     ● Design for large tanks and marine

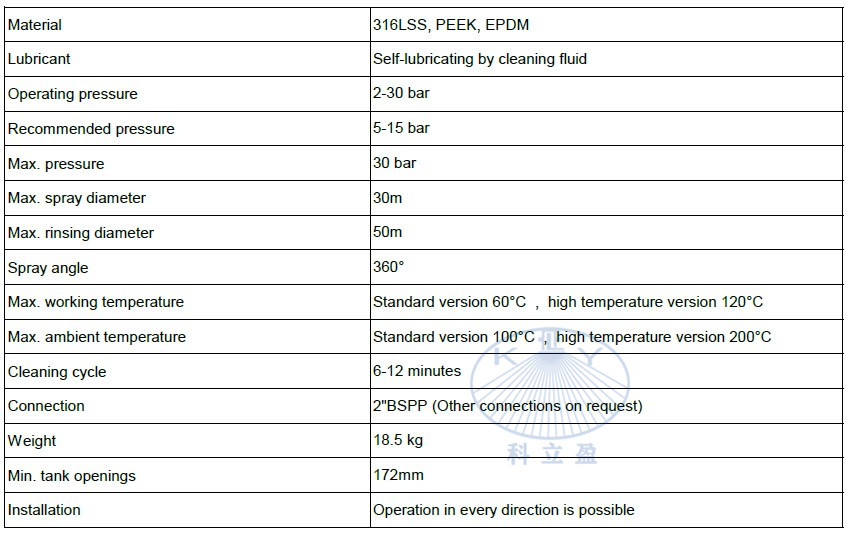

    Technical Data:

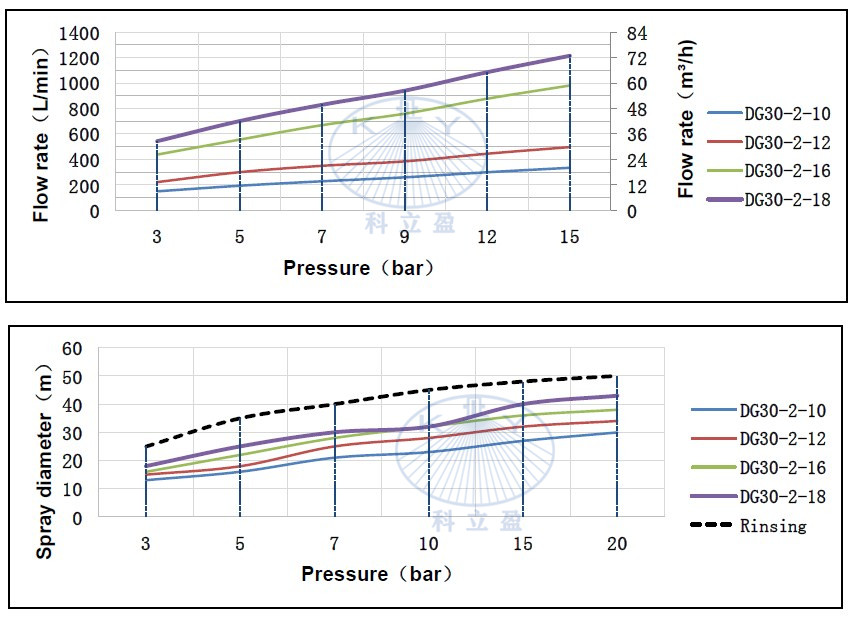

    Performance curve:

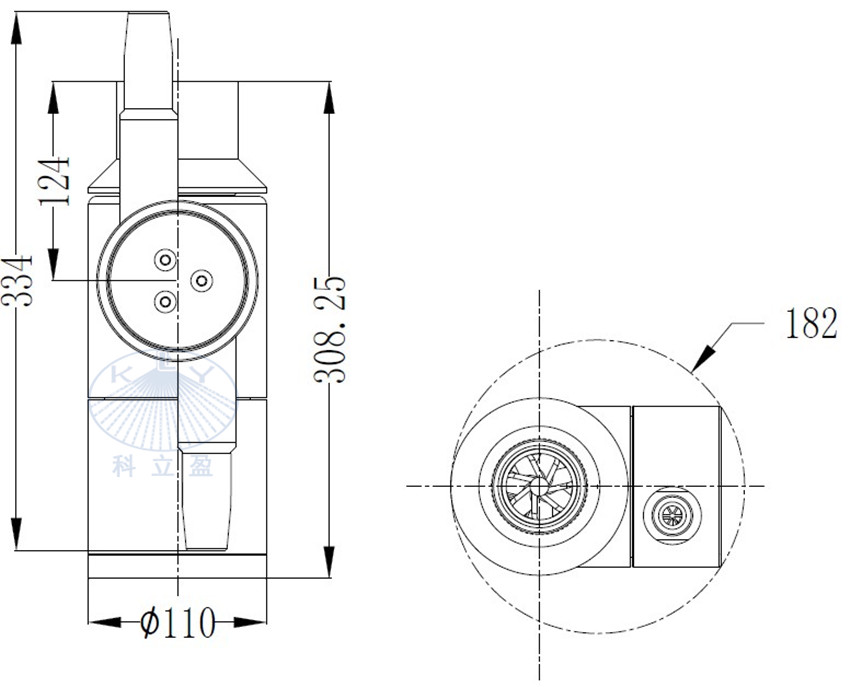

    Dimensions:



    Cleaning Effection ( Before & After ):








    Application:
    KLY DG30 rotary tank washer is suitable for 3D cleaning of medium to large sized tanks,vessel or machines. It is commonly used in beer industry, petroleum, beverage,fuel ethanol, chemical,industrial fermentation,marine and where a high cleaning performance is required.

    ● Cleaning tanker trucks
    ● Cleaning rail cars
    ● Cleaning petrochemical reactors
    ● Cleaning residues from chemical tanks
    ● Cleaning sewage tanks
    ● Cleaning silt from water supply tanks
    ● Cleaning pharmaceutical tanks
    ● Cleaning food processing tanks
    ● Cleaning pulp storage/processing tanks
    ● Cleaning blenders
    ● Cleaning storage tanks




Last：DG15-4 3D tank cleaning meachine,rotating tank cleaning nozzle Last：MP200 high pressure tank cleaning heads, Self-propelled Tank Cleaner

Recommended 推荐内容

Related products 产品

Contact Information
TEL: +86 02036269566
Fax: +86-020-36269969
Mob: +86 13725126489
E-mail: fiona@cleanspraying.com
E-mail:
E-mail:
Address: No.5,Nanling Industrial Zone, Longgui, Taihe Street,Taihe Town, Baiyun District, Guangzhou, 510445 Guangdong, China

Automated washing vs manual washing

●Improvement of the washing process: less time, less consumption and better and more reliable quality. The washing procedures can be inserted into the company quality system.
●safety of operators at the workplace.
●Need to reduce unskilled labor(KELIYING automatic washing machine : 2 to 5 minutes).
●Economic need to reduce the waste produced.
●Economic need for the reduction of the washing fluid in purchase.
●Increased washing quality.
●Increased control and measurement of production levels.

KELIYING vs other washing machines

●Highest quality Tank cleaning nozzles:KELIYING offers tank cleaning nozzles with 5 to1500 bar pressure for container or tank volume of 0.1 cubic to 10000 cubic meters.
●Customized Tank Cleaning and tank washing equipment products:We offer a total solution by providing onsite surveys, analysis, design, and engineering support for tank cleaning projects.
●Washing tests and consulting:Suitable machine configuration (type of pump and recommended options) to optimize consumption and achieve the required production quota.
●Service:"On-line" support and remote assistance also thanks to step-by-step video tutorials that allow the customer to perform maintenance activities.
