QMD pneumatic high pressure cleaner

 Tip: click the picture to enlarge.
  • Product introduction
  • Inquiry now

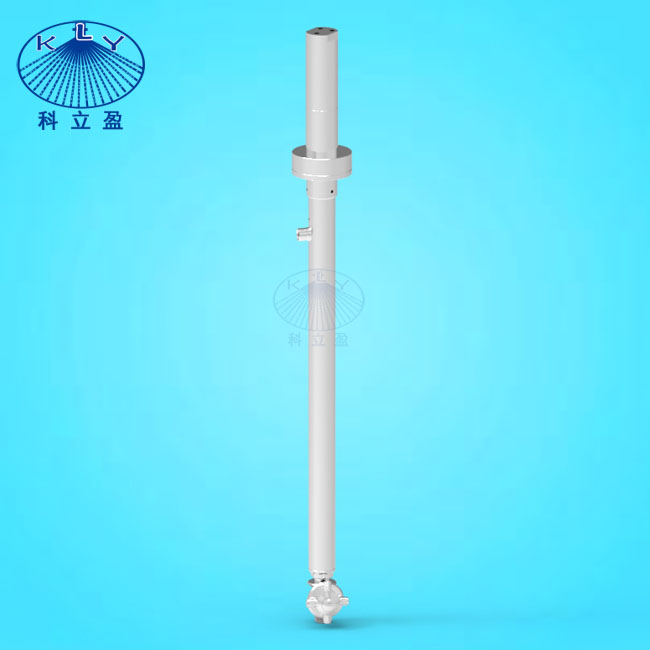

    QMD air motor driven high pressure tank cleaning machine

    This QMD air motor-driven three-dimensional cleaners are suitable for small to medium sized tanks and IBC totes, such as fuel ethanol, beer, chemical, industrial fermentation industries and occasions that require high-impact cleaning.



    Working Principle:


      This QMD series cleaner is driven by an external motor to drive cleaning head to rotate.
      The gear mechanism runs according to the set trajactory to realize rotation and revolution,
      thereby realizing 360 coverage impact indexed cleaning of the inside of tanks and process vessels.



    Features & Benefits:



     ● High Using dynamic seal at leakage point to reduce leakage (less than 3% leakage). thus saving cleaning fluid.
     ● The nozzle have a unique steady flow design which can make the jet be more concentrated and have great impact.

     ● Driven by an external air motor, used in explosion-proof applications. Much safer.

     ● Low consumption of fluid.

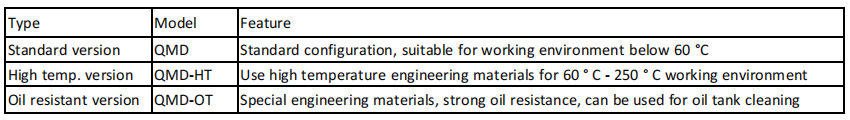

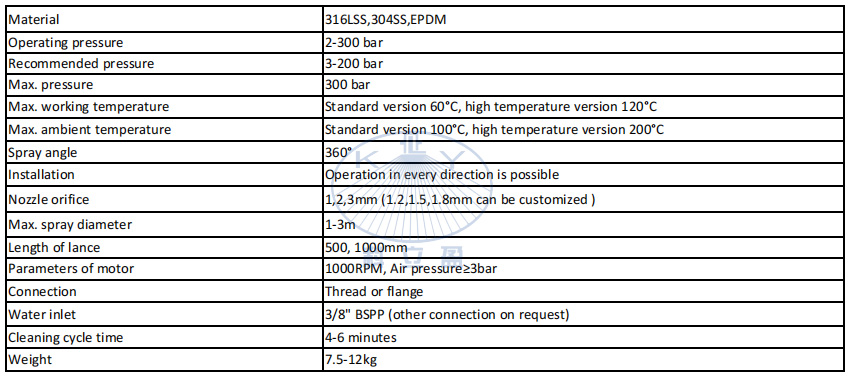

    Technical Data:

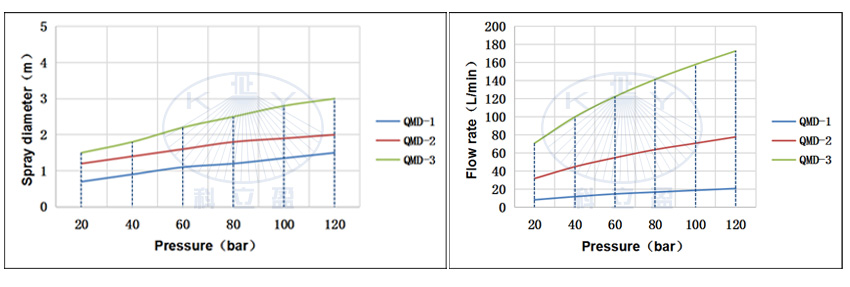

    Performance:

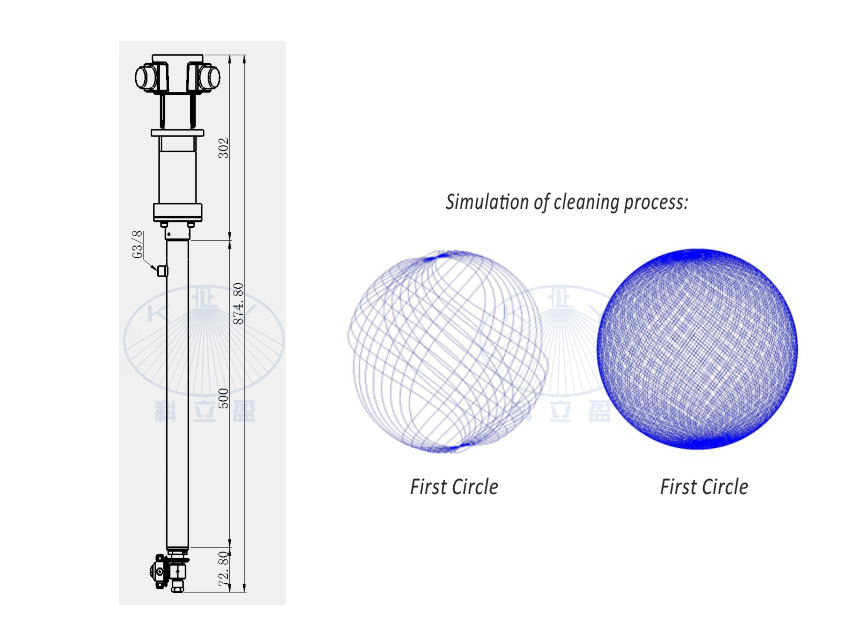

    Dimension & Simulation:

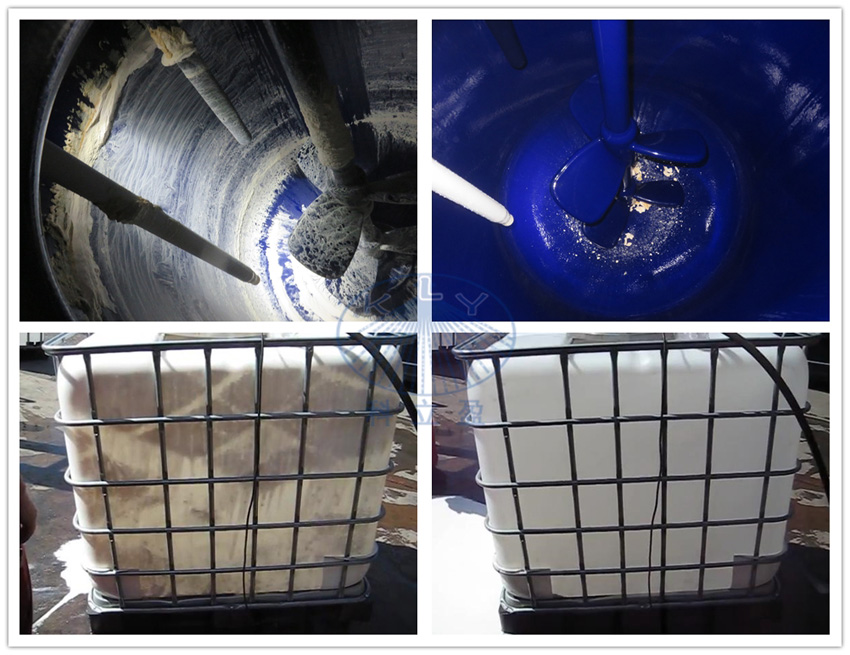

    Cleaning Effection ( Before & After ):





    Application:

    This QMD series high pressure motor-driven three-dimensional cleaners are suitable for small to medium sized tanks and IBC totes, such as fuel ethanol, beer, chemical, industrial fermentation industries and occasions that require high impact cleaning.
