ChineseD38 1" BSPP thread rotary spray ball
| Model | D38 rotary spray ball |
| Material | 316LSS |
| Connection | 3/4" , 1" , 1 1/4" Slip-on or 1 1/2" welding |
| Recommanded pressure | 1.5-3 bar |
| Temperature | 130° |
| Max. tank diameter | 3.5m |
| Application | rinsing and cleaning of tanks / containers |
| Filteration | Line strainer with a mesh size of 0,3 mm/50 mesh |
cip rotating balls design features :
1. Double bearing design with excellent rotation effects, and better stability and longer life bearing
2. Self-cleaning self-lubricating design
3. 360 degree self-rotating cleaning nozzle, cleaning every place of your containers
4. Low consumption of liquid, operating at low pressure
5. Driven and lubricated by the cleaning fluid
6. The compact and hygienic design meets requirements for use in CIP system
cip roaty spray balls common application:
- Soup kettles
- Yeast propagation tanks
- Batch processing vessels
- Ink and paint mixing vats
- Fluid bed dryers
- Brew kettles
- Storage tanks
- Spray dryers
- Commercial ovens
e.g: in food industry, beverage industry, pharmaceutical industry and chemical industry

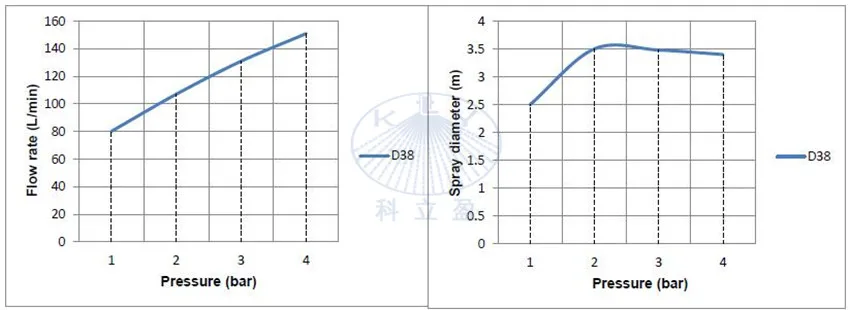

roating spray balls performance Data

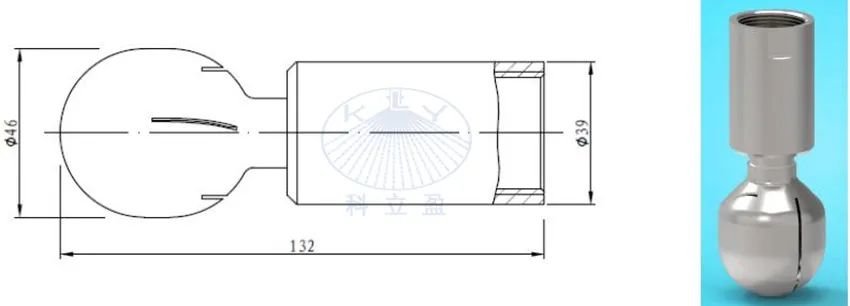

Dimension:
Application:
KLY spray balls manufacturer D38 rotary spray heads are used to rinse and clean tank to 3m diameter.
