D19 spray ball for 5 gallon water bottle cleaning

 Tip: click the picture to enlarge.

    D19 spray ball for 5 gallon water bottle cleaning

    Model D19 spray ball
    Material 316SS
    Connection 3/8" BSPP
    Recommanded pressure 2.5-3.5 bar
    Temperature 130°
    Max. tank diameter 1.2m
    Application rinsing and cleaning of tanks / containers
    Filteration Line strainer with a mesh size of 0,3 mm/50 mesh





    Design features :

    1. Double bearing design with excellent rotation effects, and better stability and longer life bearing

    2. Self-cleaning self-lubricating design

    3. 360 degree self-rotating cleaning nozzle, cleaning every place of your containers

    4. Low consumption of liquid, operating at low pressure

    5. Driven and lubricated by the cleaning fluid

    6. The compact and hygienic design meets requirements for use in CIP system






    Application:

    • - Soup kettles
    •  -Yeast propagation tanks
    •  -Batch processing vessels
    •  -Fluid bed dryers
    •  -Ink and paint mixing vats
    •  -Brew kettles
    • -Storage tanks
    • -Spray dryers
    • -Commercial ovens

    e.g: in food industry, beverage industry, pharmaceutical industry and chemical industry

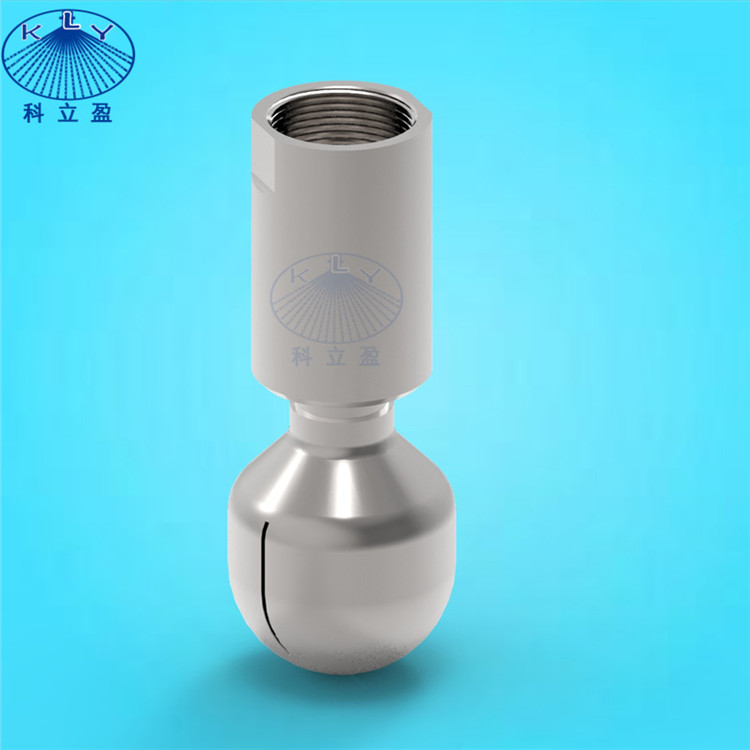

    Product photo:

    D19 spray ball for 5 gallon water bottle cleaning

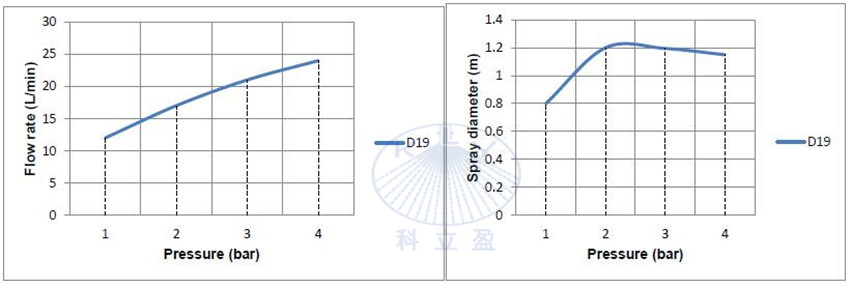

    Performance Data:

    D19 spray ball for 5 gallon water bottle cleaning

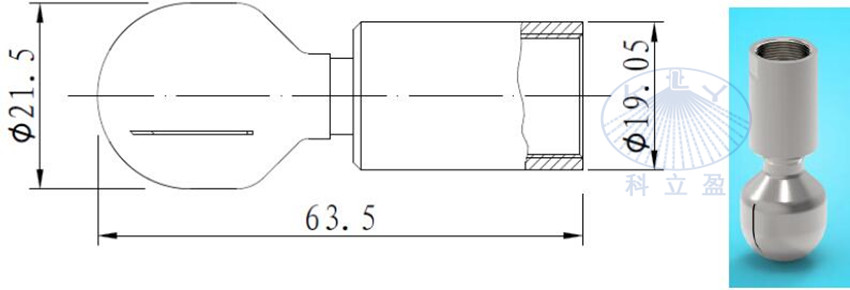

    Dimension:

    D19 spray ball for 5 gallon water bottle cleaning




    Application:

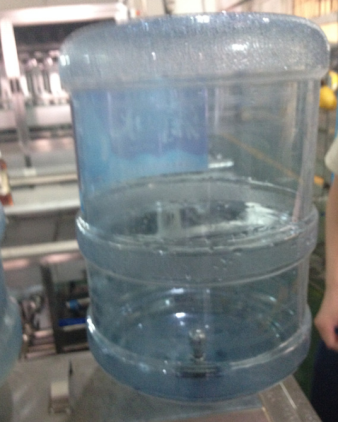

    D19 spray ball for 5 gallon water bottle cleaning
