Tank rinse nozzle, high impact rotary jet heads

 Tip: click the picture to enlarge.
    Rotary tank clean machine,tank rinse nozzle





    Model MG8 3D rotary tank rinse nozzles
    Material 316L ss
    Max. tank diameter  10m
    Operating pressure 4-20Bar
    Tempreture range 95°
    Installation Vertically facing downward
    Application

    Cleaning and rinsing of large tanks

    i.e. chemical industry,drink and food industry.



    The MG serires rotary jet head provides complete tank cleaning that is both thorough and cost-effective. It is fluid driven with external gears and was specifically designed to fit a 3″ (76.2 mm) opening, for cleaning of totes, IBCs and other limited access vessels.



    This model also incorporates a set of bevel gears which provide a complete 360-degree indexing pattern every 45 revolutions and has an effective cleaning diameter of 30 ft (9.2 m).



    It operates up to 300 psi (20.7 bar) and offers simplicity of design and ease of field maintenance.



    • Very high cleaning performance already at low pressure
    • Driven and lubricated by the cleaning fluid
    • Systematically cleans the entire tank interior(360°)
    • Robust, low-maintenance stainless steel construction



    Application:





    MG8 rotating tank cleaning nozzles are suitable for medium to large tanks, such as Dairy , Food, Pharmaceutical, Beer, Chemical, industrial fermentation industries and many others.





    Product Photos:

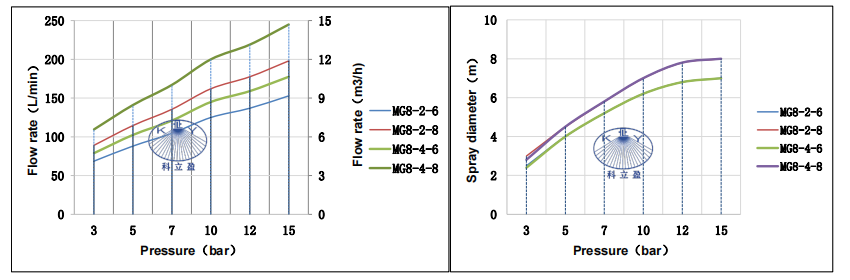

    tank rinse nozzles performance data:

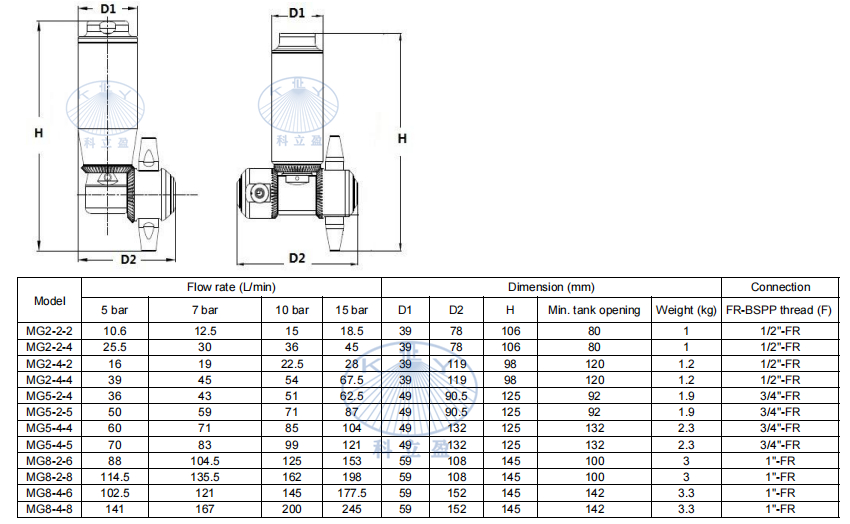

    Dimensions of MG series rotary jet head:





    Company information



    Guangzhou Cleaning-spray Equipment Co., Ltd is one of leading company in China specialized in manufacturing and selling tank cleaning nozzles, industrial spray nozzles and other spray product which are widely used in Pharmaceutical, Chemical, Food and Beverage and other industry. We can provide you with optimal solution according to your requirement.


    Application:
    3D rotary jet head for cleaning of IBC totes




    portable tank cleaning machine
