Sanitary 3D rotary jet head

 Tip: click the picture to enlarge.
  • Product introduction
  • Inquiry now
    KELIYING broad range of tank cleaning machines, reaction drives, static spray balls, and spray nozzles,rotary spray nozzles, 3D High impact tank cleaning nozzles give us the opportunity to provide the right solution to your most challenging tank cleaning issues.
    Below to visit the tank cleaning nozzles for specific information.


    High impact 3D rotary tank washer

    Model number: TG series sanitary degree rotary jet head

    Working Principle:

    KLY TG series rotary jet head drives impeller through cleaning liquid to drive internal deceleration mechanism to run at low speed, through the transmission mechanism, operate according to the set trajectory to realize revolution and rotation, so as to realize 360° coverage.
    Tank cleaning machine, tank cleaning nozzle, tank cleaning head, tank washing nozzle



    Features & Benefits:



     ● Sanitary design, self-cleaing and self-lubricating

     ● Water goes through every part of the tank washer and gearbox

     ● Gears are made of PEEK

     ● Optimized jet structure, strong impact force
     ●  Low consumption of liquid and energy saving
    Tank cleaning machine, tank cleaning nozzle, tank cleaning head, tank washing nozzle

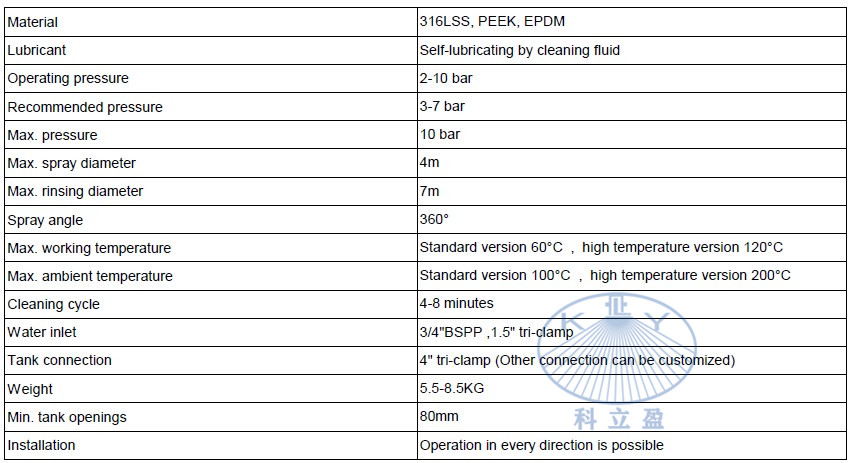

    Technical Data:

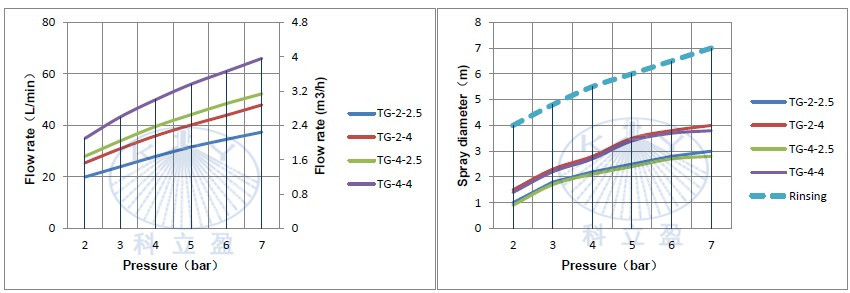

    Performance curve:

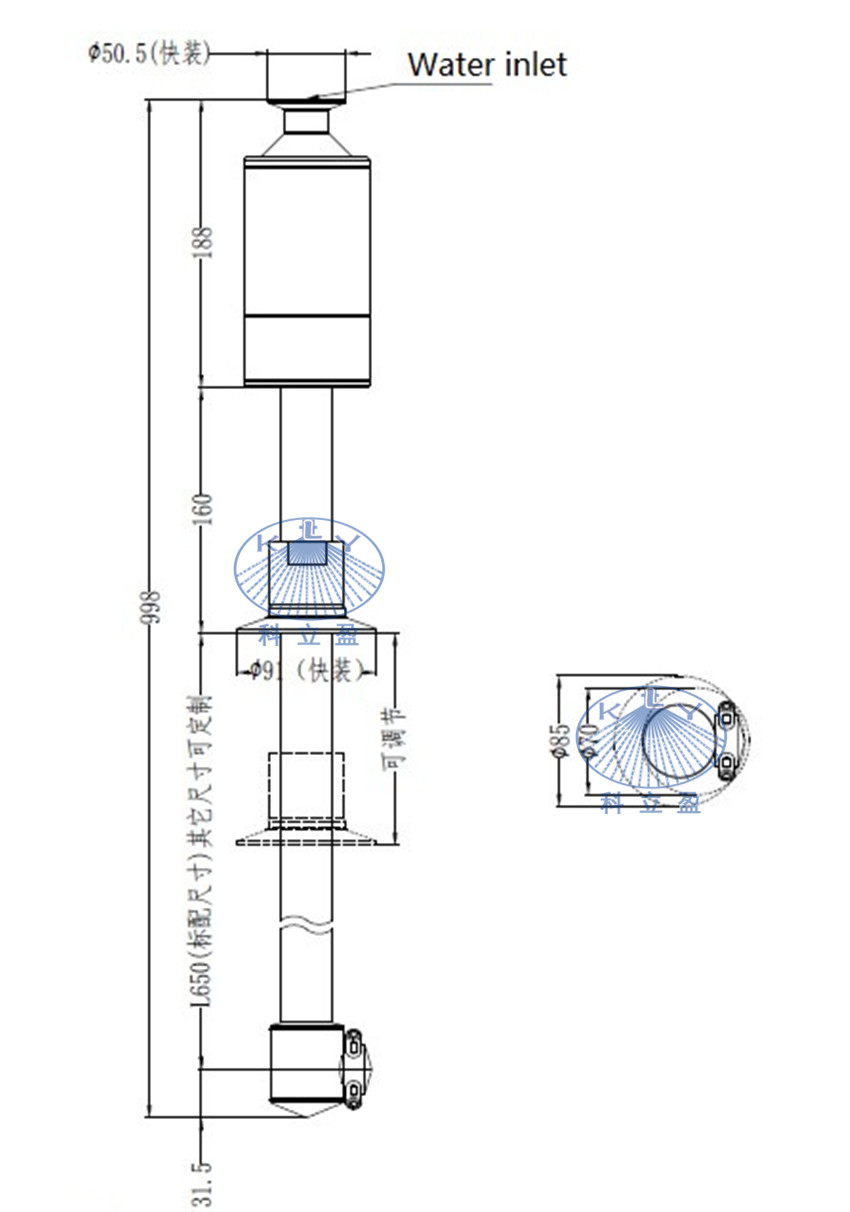

    Dimensions:

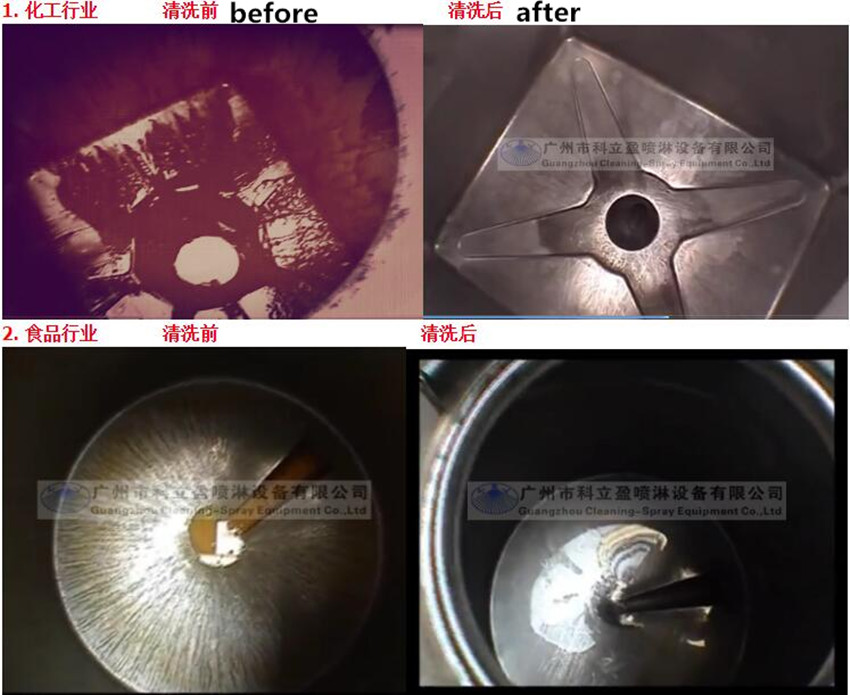

    Cleaning Effection ( Before & After ):








    Application:

    KLY TG series rotary jet head is suitable for three-dimensional cleaning of small to medium tanks and containers used in processing, storage and transportation, such as pharmaceutical, wine, food, dairy and solvent-based cleaning industries.

    KELIYING tank cleaning devices and accessories are specially designed to work together to deliver optimal cleaning that is essential for compliance with industry and government regulations. Our “jet impingent technology” improves plant productivity by increasing each tank’s production availability saving on operating costs related to water, energy, and chemical consumption. We are the greener
