Oil tank cleaning machine,railroad tank car cleaning equipment

 Tip: click the picture to enlarge.
    DG15 3D rotary jet head


    Model DG15 3D rotary tank car cleaning equipment
    Material 316L SS
    Max. tank diameter  15m
    Operating pressure 3-20Bar
    Tempreture range 2-80°
    Installation Vertically facing downward
    Application

    Cleaning and rinsing of large tanks

    i.e. chemical industry,drink and food industry.




    DG15 3D rotary tank washing nozzles for the largest tanks and most difficult applications, this gear driven cleaning nozzle is our most powerful.

    • Very high cleaning performance already at low pressure
    • Driven and lubricated by the cleaning fluid
    • Systematically cleans the entire tank interior(360°)
    • Robust, low-maintenance stainless steel construction
    • 100% thoroughly clean,every time
    • Optimized structural design makes water jet with greater impact
    • Excellent seal design, only 1% leakage of water
    • Designed with a separate gearbox,uneasy to get clogging


    Programmed rotation machines:

    The cleaning fluid drives via the turbine an internal gear reducer that keeps the sprayer turning in two planes.
    In the course of spraying cycle, the jets sweep the entire inside surface of the tank according to the preprogrammed, model-specific pattern.
    This takes a certain amount of time, but these models generate the highest jet pressures (= force of impact) and are therefore ideal for very large tanks and the toughest of cleaning tasks.



    The standard machine configuration uses two or four nozzles to blast the tank walls and rinse all surfaces. In operation, the unit has to run for the cycle time between on type 8 and 12 min depending on type and pressure. This ensures full cleaning. For extremely difficult applications the cleaning time might have to be extend.




    Oil tank cleaning equipment application:

    DG15 rotating tank washing nozzles are suitable for medium to large tanks, such as Oil, Dairy , Food, Pharmaceutical, Beer, Chemical, Fuel ethanol, industrial fermentation industries and many others.

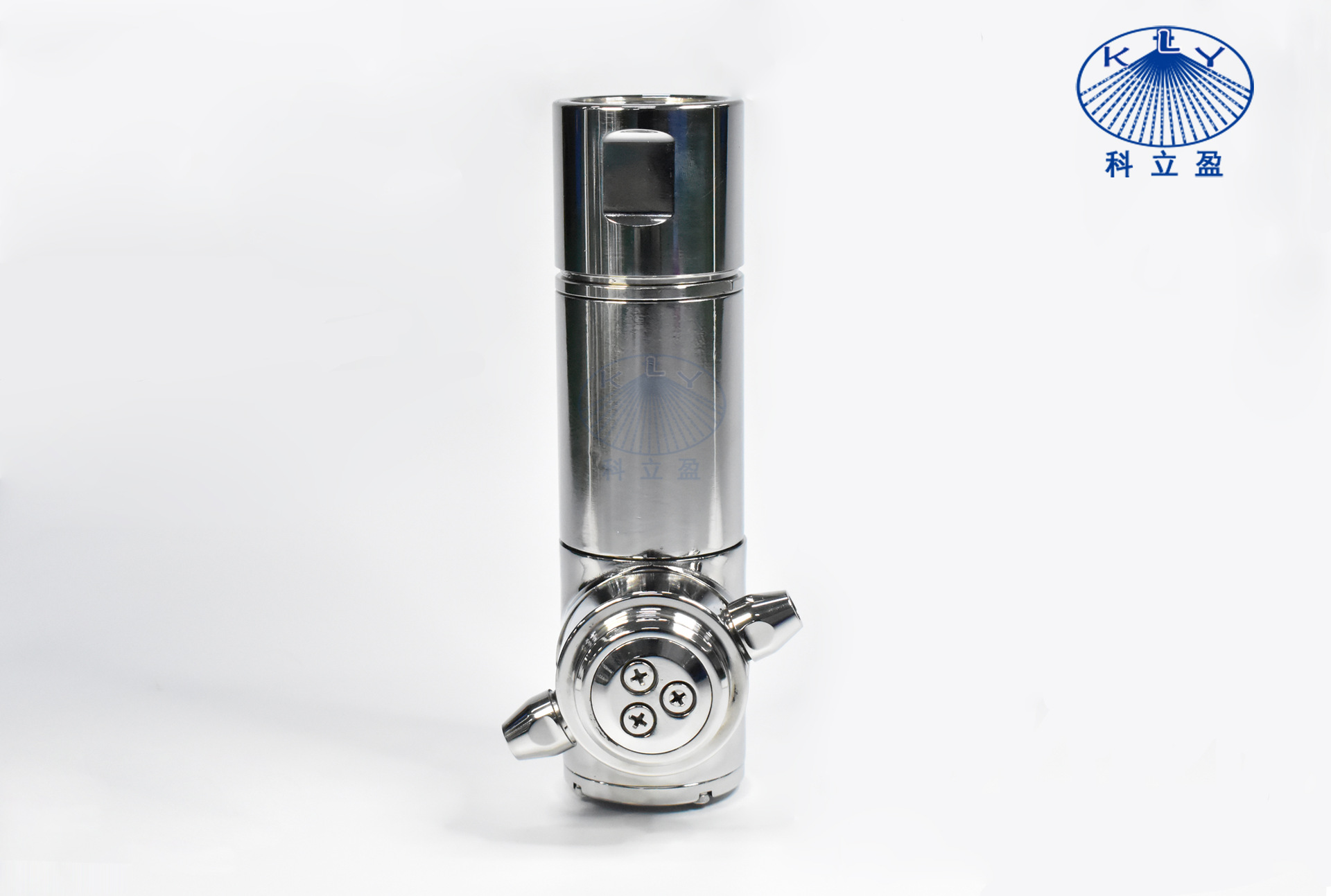

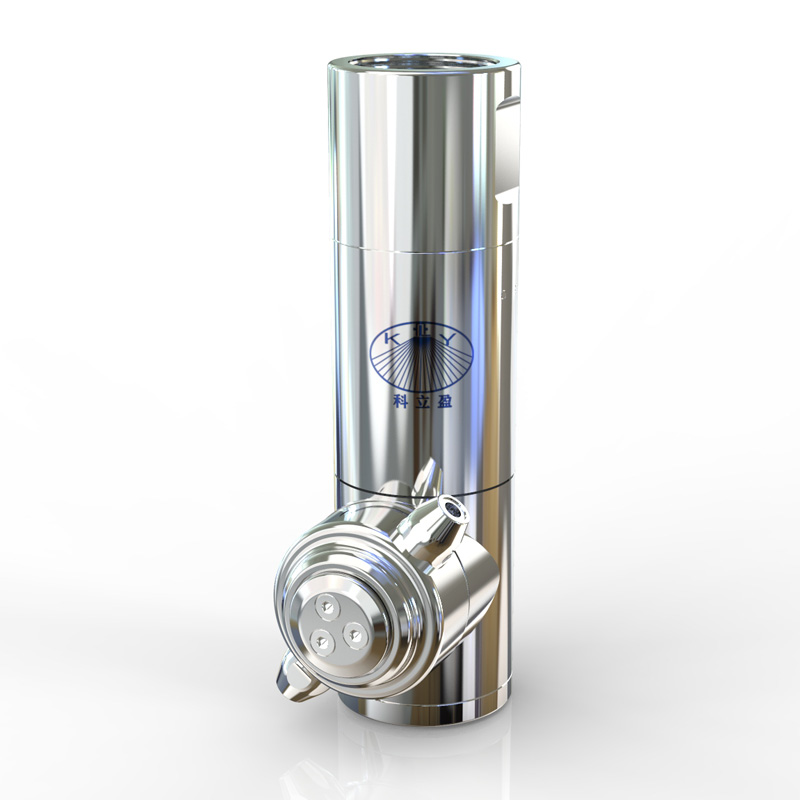

    Product Photos:

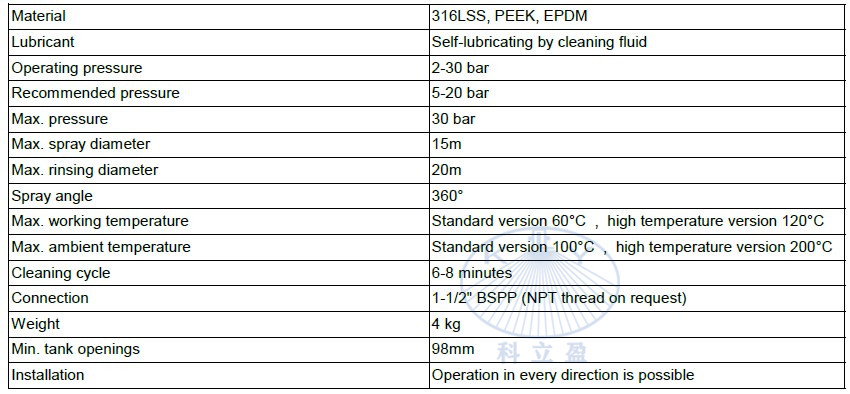

    Performance data:

    DG15 3D rotary tank washing nozzle for tanks to diameter 15m

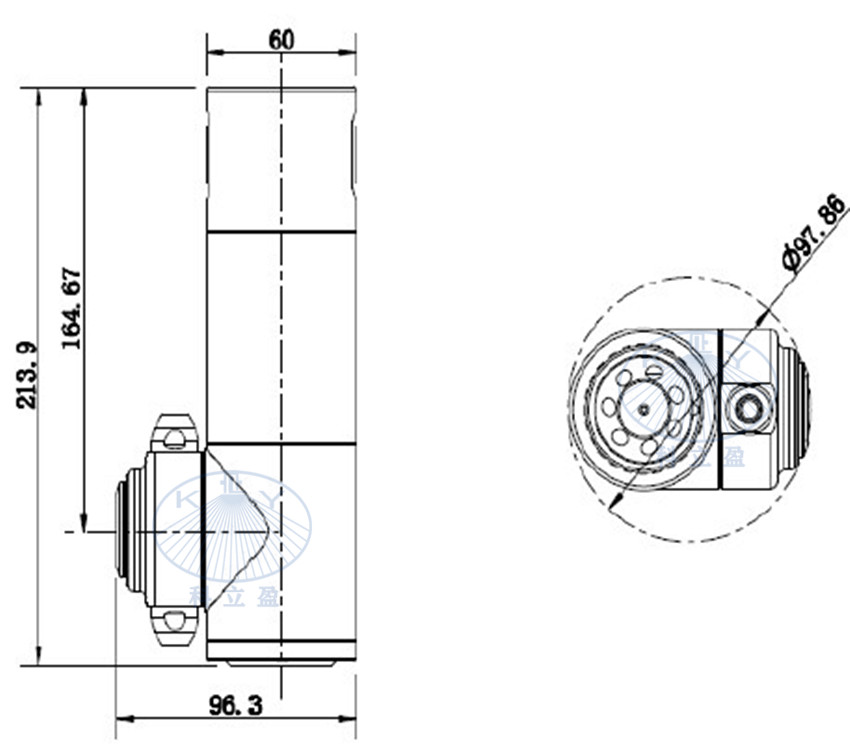

    Dimensions of DG15 rotary jet head:

    DG15 3D rotary tank washing nozzle for tanks to diameter 15m









    tank cleaning equipment cleaning process:

    DG15 3D rotary tank washing nozzle for tanks to diameter 15m



    Cleaning effect:


    Application of DG15 3D rotary tank cleaning nozzle:

    underground fuel tank cleaning equipmentoil railroad tank car cleaning equipment machine

    DG15 3D rotary tank washing nozzle for tanks to diameter 15mrotary tank washing nozzle for railroad tank car cleaning equipment
    crude oil tank cleaning machine, railroad tank car cleaning equipment,oil tank cleaning equipment,underground fuel tank cleaning equipment
    underground fuel tank cleaning equipment ,railroad tank car cleaning equipment DG15 3D rotary tank washing nozzle for tanks to diameter 15m,
    storage tank cleaning equipment
