Automatic motor drive rotary tank cleaning machine

 Tip: click the picture to enlarge.

    Motor driven high pressure water tank cleaning machine

    Model MD series high pressure water tank cleaning machine
    Material 316LSS
    Connection thread or flange connection
    Recommanded pressure 3-100 bar
    Temperature 95°
    Max. tank diameter 4m
    Application rinsing and cleaning of tanks / containers
    Filteration Line strainer with a mesh size of 0,3 mm/50 mesh






    Design features :

    MD series are driven by the motor with external gear and provides 360° impact indexed coverage for the cleaning of the inside of tanks and process vessels.

    1.Using dynamic seal at leakage point to reduce leakage, only 3% leakage, thus save cleaning fluid.
    2. The nozzle have a unique steady flow design which can make the jet be more concentrated, greater impact.
    3. Driven by external motor, thereby reducing the pressure loss of water flow, resulting in higher water impact.
    4.Compact build ideal for small openings



    Common application:

    Model MD series is a highly versatile machine and is applicable in most all types of
    tanks for process, storage, and transportation. It can be used as a portable unit or permanently mounted.

    e.g: in food industry, beverage industry, pharmaceutical industry and chemical industry

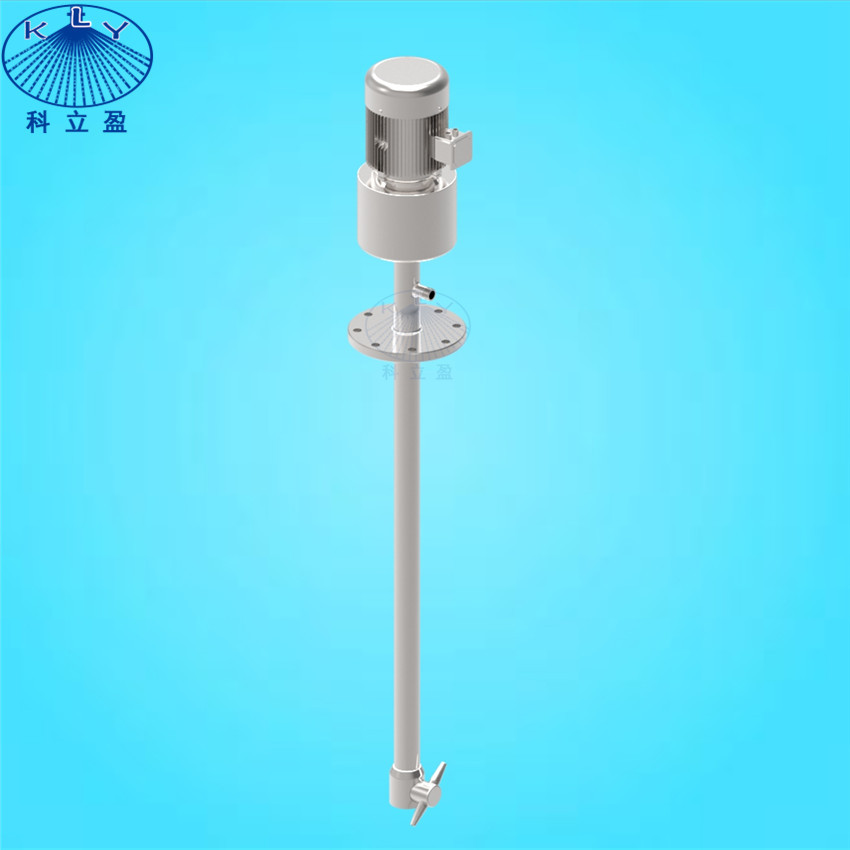

    Product photo:

    自动洗罐器清洗喷嘴效果

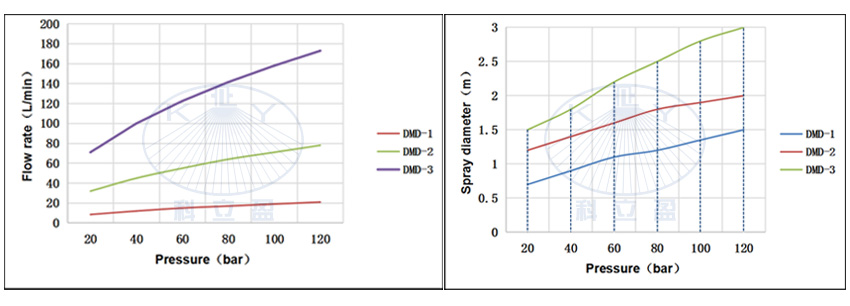

    Performance Data:

    Motor driven high pressure water tank cleaning machine

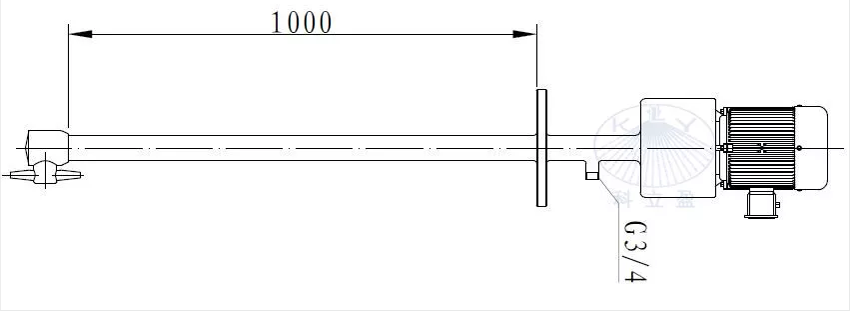

    Dimension:

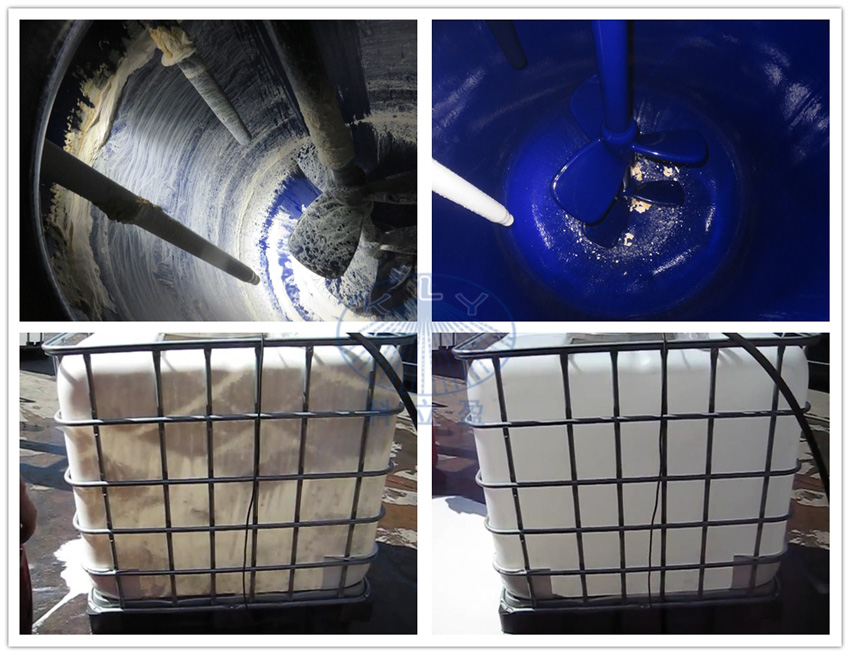

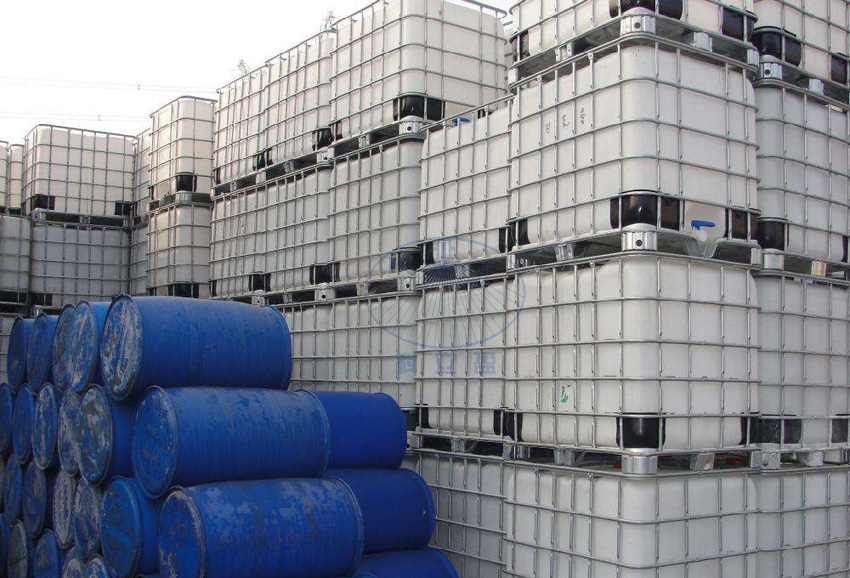

    Application:

    Motor driven high pressure water tank cleaning machine



    Motor driven high pressure water tank cleaning machineMotor driven high pressure water tank cleaning machine

    Motor driven high pressure water tank cleaning machine
