CIP cleaning system
Tip: click the picture to enlarge.
-
CIP cleaning system
Clean-in-place (CIP) is an automated method of cleaning the interior surfaces of pipes, vessels, equipment, filters and associated fittings, without major disassembly. CIP is commonly used for equipment such as piping, tanks, and fillers.
CIP employs turbulent flow through piping, and/or spray balls for large surfaces. In some cases, CIP can also be accomplished with fill, soak and agitate. The benefit to industries that use CIP is that the cleaning is faster, less labor-intensive and more repeatable, and poses less of a chemical exposure risk. CIP started as a manual practice involving a balance tank, centrifugal pump, and connection to the system being cleaned. Simple, manually operated CIP systems can still be found in use today.
Keliying CIP cleaning system should formulate different cleaning and disinfection processes for different sites, and control them separately according to different CIP cleaning systems; design the CIP system on the basis of ensuring the effective operation of the CIP process, and at the same time, consider the flexibility of the system , economy and safety, environmental protection requirements, and reduce the chance of cross-contamination, etc. The cleaning of fermentation tanks should be based on normal temperature alkaline cleaning, which should be combined with regular pickling. During the design process of the CIP system, the factors that affect the normal operation of the system, such as: cavitation problem, liquid return filtration, circulation heating, etc., are all designed in order to make the CIP system more perfect.
The working principle of Keliying automatic CIP cleaning system: The CIP cleaning and disinfection system uses the dissolution of water, scouring and kicking, heat exchange, and the chemical action of cleaning agents and cleaning agents to remove pollutants on the inner walls of tanks, equipment, and pipelines. The working principle of the automatic CIP cleaning system is to control the opening and closing of the steam valve by measuring the temperature through the thermal resistance; to control the opening and closing of the water valve by measuring the level of the liquid level through the pressure transmitter; to measure the conductivity through the conductivity meter The size of the rate is used to control the opening and closing of the alkali and acid diaphragm valves. The overall control process is adding water and heating--alkali cleaning--hot water rinsing--acid cleaning--hot water rinsing.
Fully automatic CIP cleaning system consists of: acid tank, alkali tank, hot water tank, pure water tank, concentrated acid, concentrated alkali tank, heat exchanger, various pipes and pneumatic valves, pressure transmitter, conductivity meter, platinum thermal resistance and control systems.
CIP employs turbulent flow through piping, and/or spray balls for large surfaces. In some cases, CIP can also be accomplished with fill, soak and agitate. The benefit to industries that use CIP is that the cleaning is faster, less labor-intensive and more repeatable, and poses less of a chemical exposure risk. CIP started as a manual practice involving a balance tank, centrifugal pump, and connection to the system being cleaned. Simple, manually operated CIP systems can still be found in use today.
Keliying CIP cleaning system should formulate different cleaning and disinfection processes for different sites, and control them separately according to different CIP cleaning systems; design the CIP system on the basis of ensuring the effective operation of the CIP process, and at the same time, consider the flexibility of the system , economy and safety, environmental protection requirements, and reduce the chance of cross-contamination, etc. The cleaning of fermentation tanks should be based on normal temperature alkaline cleaning, which should be combined with regular pickling. During the design process of the CIP system, the factors that affect the normal operation of the system, such as: cavitation problem, liquid return filtration, circulation heating, etc., are all designed in order to make the CIP system more perfect.
The working principle of Keliying automatic CIP cleaning system: The CIP cleaning and disinfection system uses the dissolution of water, scouring and kicking, heat exchange, and the chemical action of cleaning agents and cleaning agents to remove pollutants on the inner walls of tanks, equipment, and pipelines. The working principle of the automatic CIP cleaning system is to control the opening and closing of the steam valve by measuring the temperature through the thermal resistance; to control the opening and closing of the water valve by measuring the level of the liquid level through the pressure transmitter; to measure the conductivity through the conductivity meter The size of the rate is used to control the opening and closing of the alkali and acid diaphragm valves. The overall control process is adding water and heating--alkali cleaning--hot water rinsing--acid cleaning--hot water rinsing.
Fully automatic CIP cleaning system consists of: acid tank, alkali tank, hot water tank, pure water tank, concentrated acid, concentrated alkali tank, heat exchanger, various pipes and pneumatic valves, pressure transmitter, conductivity meter, platinum thermal resistance and control systems.
Application:
CIP cleaning system is widely used in food and beverage production enterprises with a high degree of mechanization, such as food and beverage, pharmaceuticals, dairy products, fruit juice, fruit pulp, jam, wine, etc.

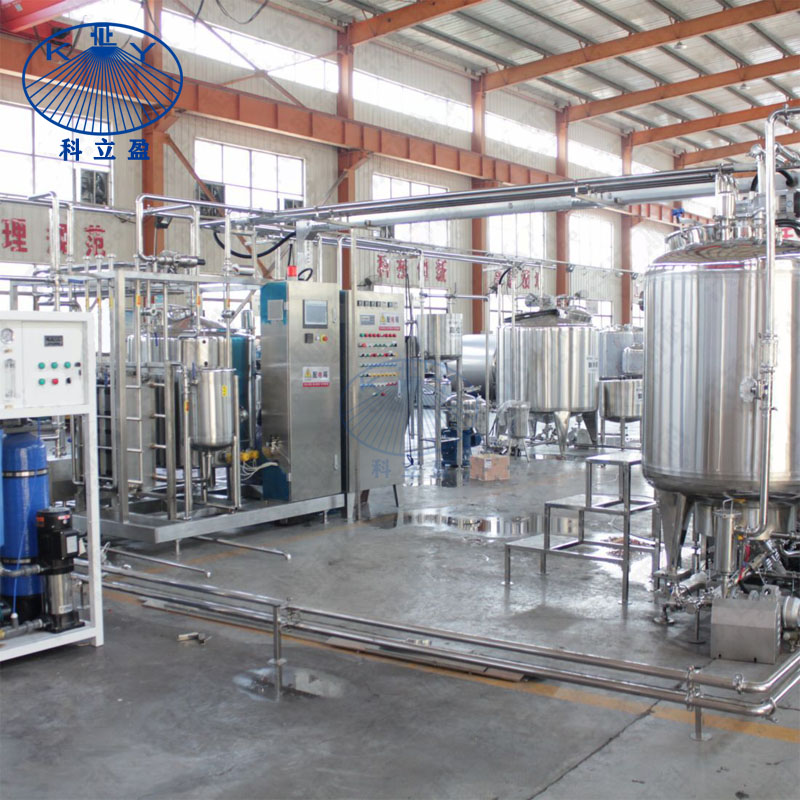

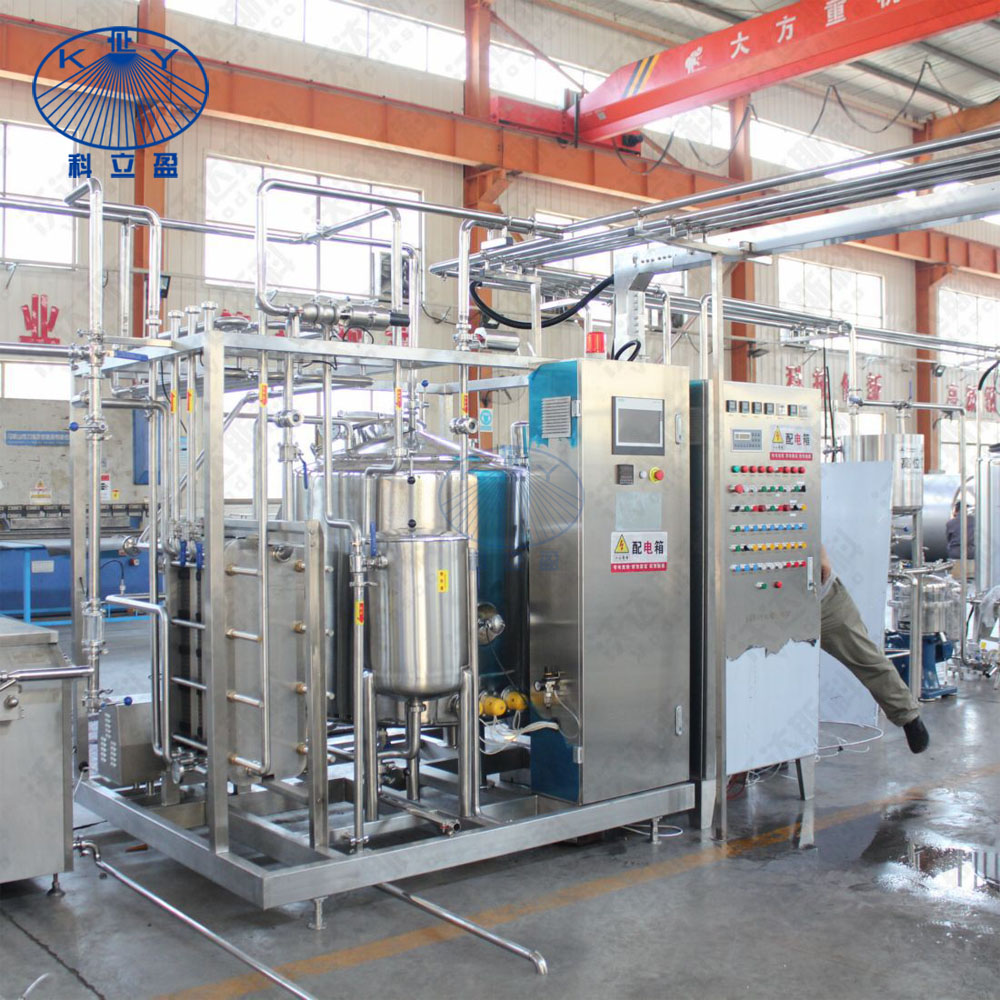

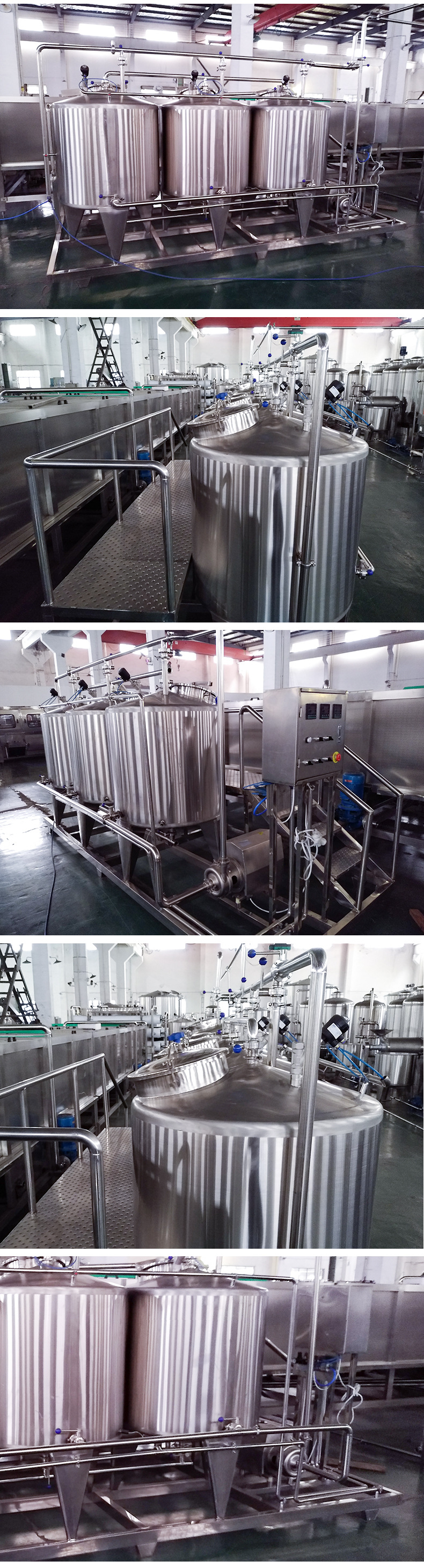

Proudct photo:

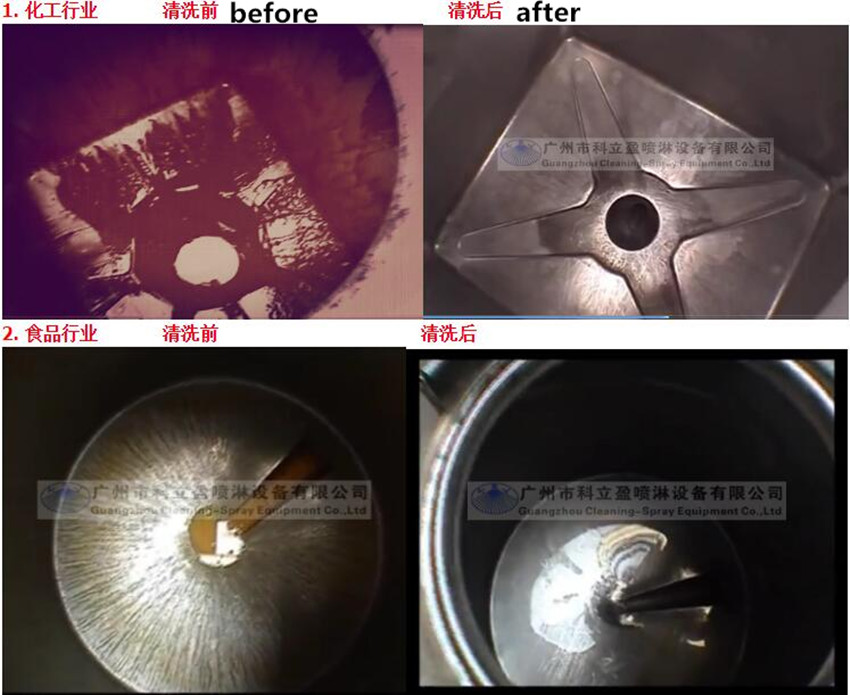

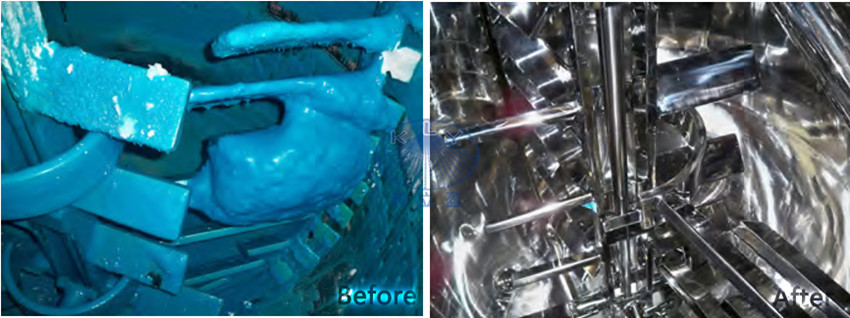

Cleaning effect:
Cleaning process:

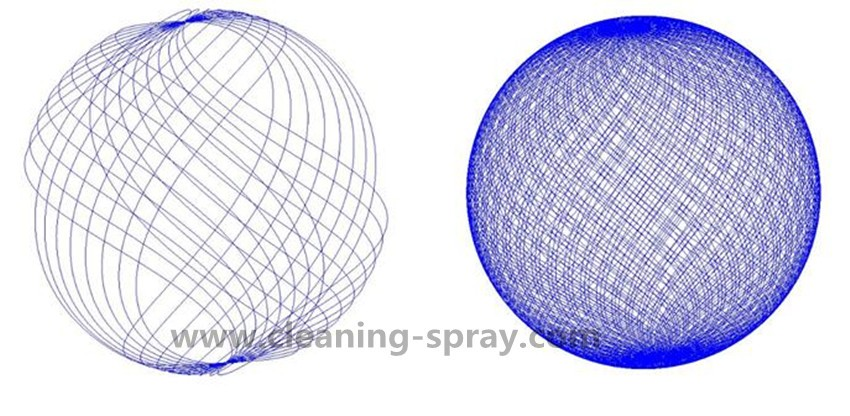

Application of 3D rotary tank cleaning nozzle:
