Santary tank cleaning nozzle, CIP rotary orbital tank washer

 Tip: click the picture to enlarge.
  • Product introduction
  • Inquiry now

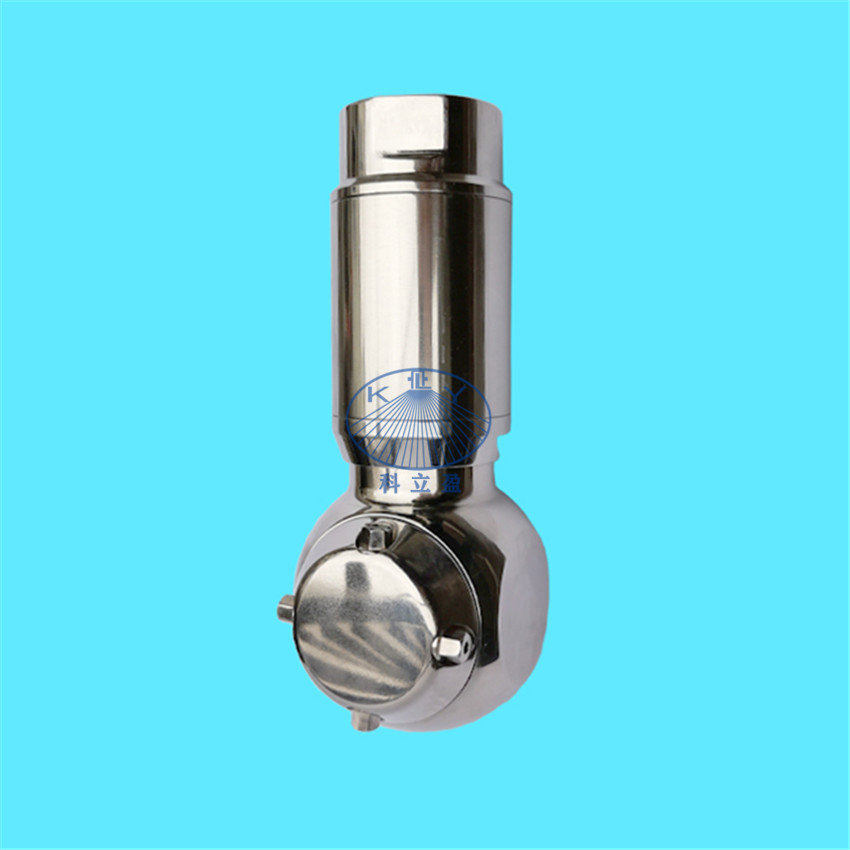

    High impact 3D rotary tank washer
    Model number: ZG4  3D tank cleaning nozzle






    Application:
     KLY ZG4 rotary tank washer is suitable for 3D cleaning of small to medium sized tanks,vessel or machines. It is commonly used in pharmaceutical , food and beverage, beer, petroleum, beverage,fuel ethanol, chemical, industrial fermentation,marine and where a high cleaning performance is required.




    Working principle:
    Impeller is driven by cleaning fluid and drives internal reduction mechanism. Gear mechanism operates according to set track to realize the revolution and the rotation, thereby achieving 360° thorough cleaning.





    Feature of tank cleaning nozzle
     ● Optimized structural design results in a water jet that produces greater impact
     ● Excellent sealing design, less than 3% leakage, thus saves cleaning fluid
     ● Very high cleaning performance at low pressure
     ● Overall optimized design,able to insert in small openings of 85MM
     ● Meet the sanitary requirement

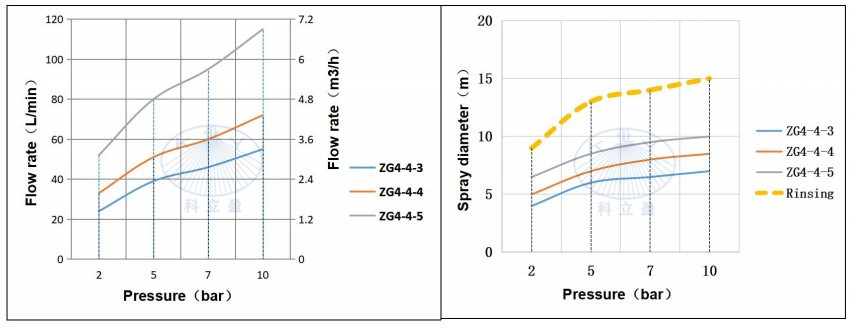

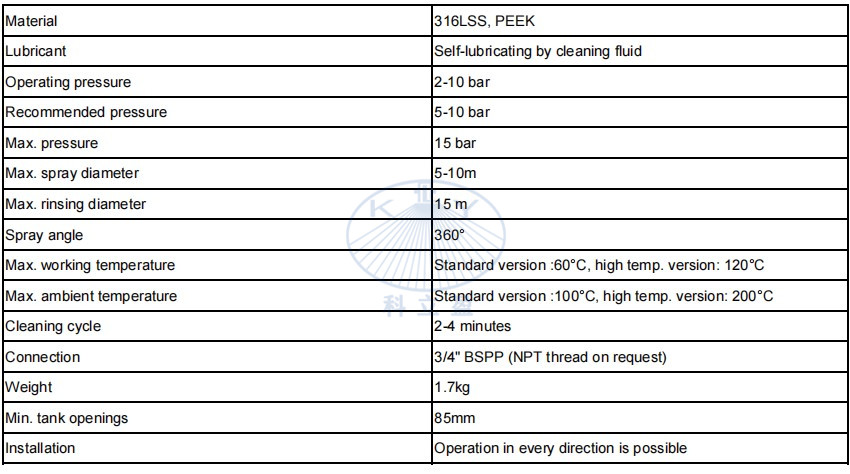

    Technical data

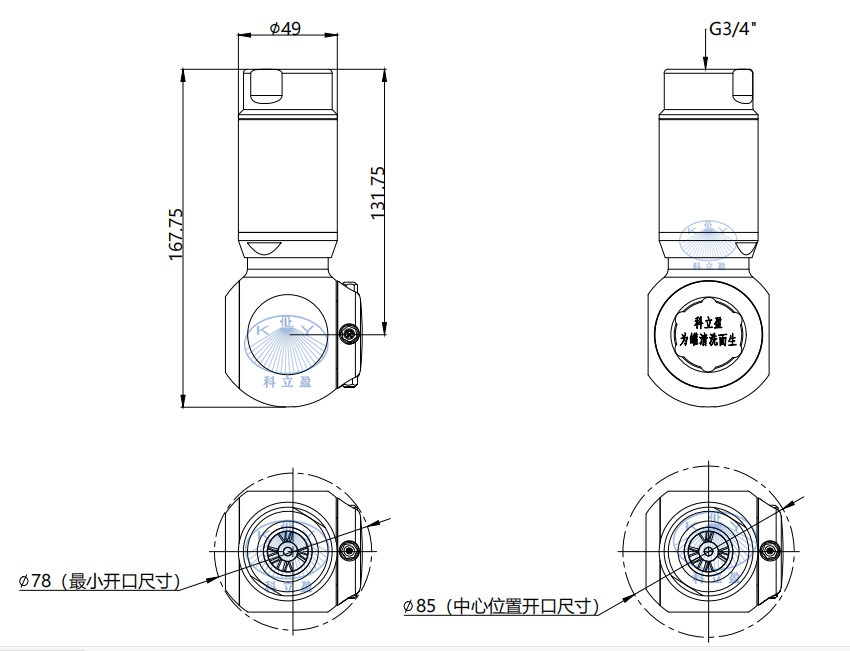

    Dimension of tank cleaning nozzle


    Cleaning Effection ( Before & After ):












    Feature of tank cleaning nozzle



Last：CIP cleaning system Last：Semi-automatic drum cleaning equipment , chemical barrel washer

Recommended 推荐内容

Related products 产品

Contact Information
TEL: +86 02036269566
Fax: +86-020-36269969
Mob: +86 13725126489
E-mail: fiona@cleanspraying.com
E-mail:
E-mail:
Address: No.5,Nanling Industrial Zone, Longgui, Taihe Street,Taihe Town, Baiyun District, Guangzhou, 510445 Guangdong, China

Automated washing vs manual washing

●Improvement of the washing process: less time, less consumption and better and more reliable quality. The washing procedures can be inserted into the company quality system.
●safety of operators at the workplace.
●Need to reduce unskilled labor(KELIYING automatic washing machine : 2 to 5 minutes).
●Economic need to reduce the waste produced.
●Economic need for the reduction of the washing fluid in purchase.
●Increased washing quality.
●Increased control and measurement of production levels.

KELIYING vs other washing machines

●Highest quality Tank cleaning nozzles:KELIYING offers tank cleaning nozzles with 5 to1500 bar pressure for container or tank volume of 0.1 cubic to 10000 cubic meters.
●Customized Tank Cleaning and tank washing equipment products:We offer a total solution by providing onsite surveys, analysis, design, and engineering support for tank cleaning projects.
●Washing tests and consulting:Suitable machine configuration (type of pump and recommended options) to optimize consumption and achieve the required production quota.
●Service:"On-line" support and remote assistance also thanks to step-by-step video tutorials that allow the customer to perform maintenance activities.
