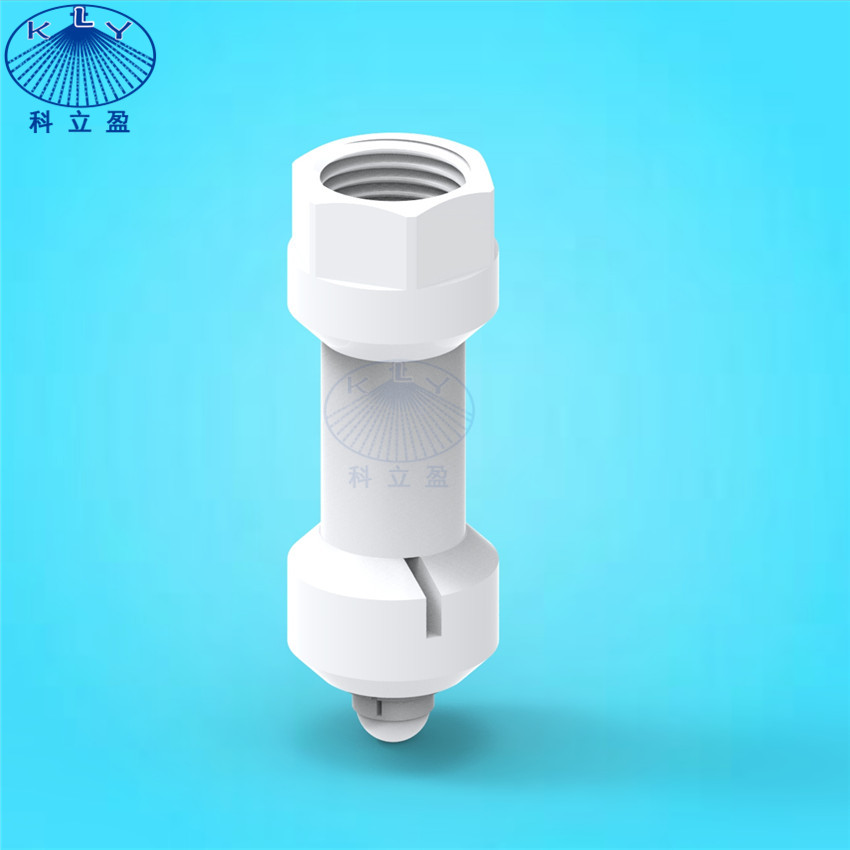

    360° Rotating spray nozzles PVDF rotary spray nozzle
    Model no.: SL20 Small rotary nozzles




    Working Principle:

    Using the force and reaction force of cleaning liquid to generate self-rotation, through scientific nozzle design on the ball head, fan-shaped liquid surface is sprayed to the surface of tank to achieve the purpose of cleaning.



    Features & Benefits:

     ●  Inexpensive rotating spray nozzle

     ●  Good corrosion resistance

     ● 360° and partial coverage

     ● Slide bearing

     ●  Very compact design, self rotating

     ● Driven and lubricated by the cleaning fluid

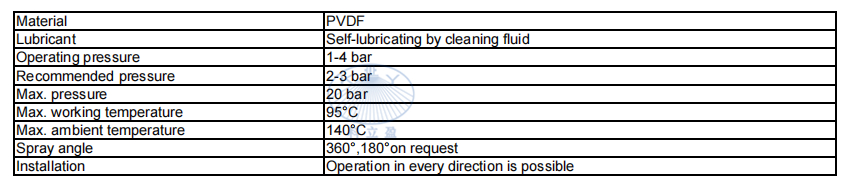

    Technical Data:

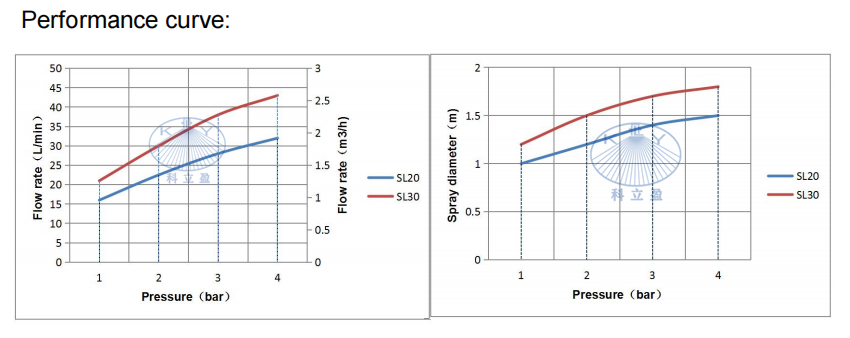

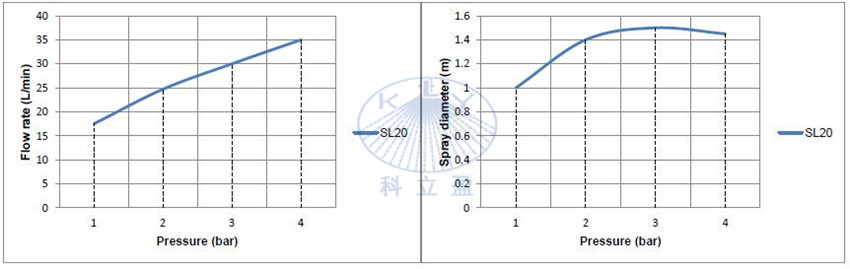

    Performance Curve:

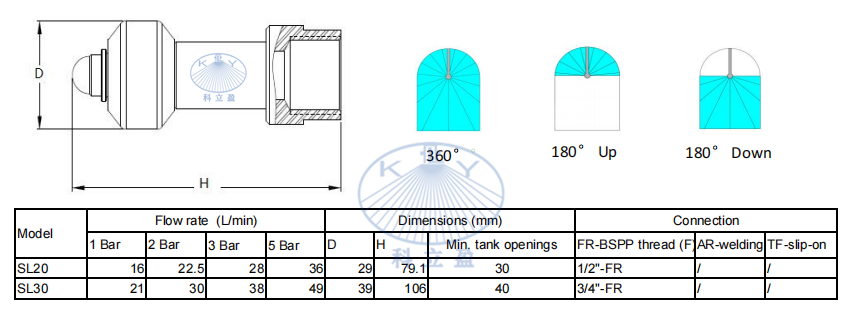

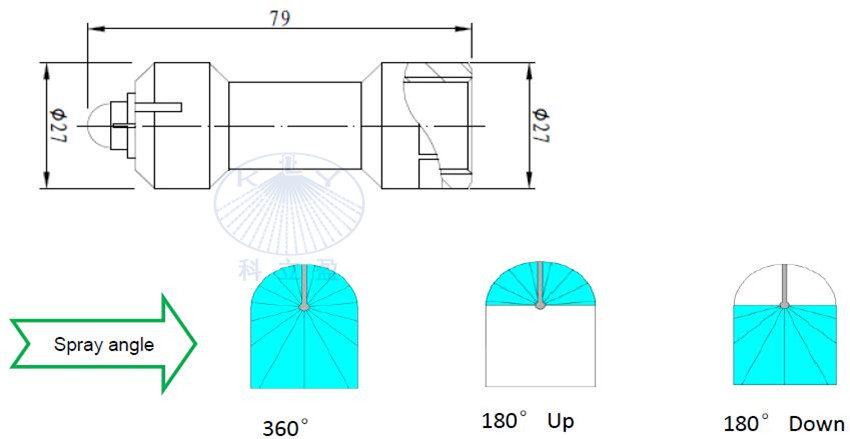

    Dimensions:




    Application:

    SL series rotary spray nozzles are driven by cleaning fluid. These rotary spray nozzles are all made of PVDF and have good corrosion resistance.

    This series is mainly used in small and medium storage tanks, reactors and other vessels with a capacity between 1-3m³.
