We offer the perfect tank cleaning solution for every application in many fields including petrochemical, food and beverage process, bio pharmaceutical, fermentaion and etc..

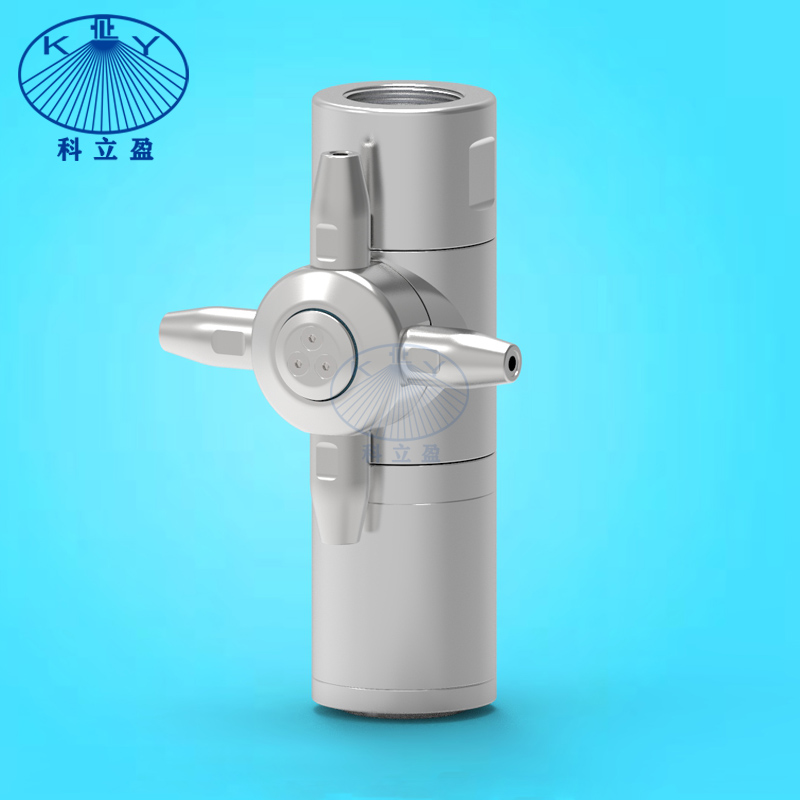

Model: DG25 Tank Cleaning Machine

•Utilizing rotary impingement technology to blast hard-to-remove residues inside of tank in a precise and global pattern.

•360-Degree full coverage cleaning tank interior with high efficiency.

•No manual access to tank interior, ensuring to keep your operator safe enough when going on cleaning operation.

•Cleaning with high pressure water jet, easy to quickly blast stubborn residues with less cleaning liquid. It can save your time, energy and be helpful for sustainable development.

•Effectively improving the recycling usage rate of tank in production process and ensure your production progress.

•Providing consistent, 360-degree full coverage, high-efficiency cleaning in a short cycle time over the entire pressure range.

Fluid-driven 360-degree rotating tank cleaning nozzle with maximun waterjet diameter up to 25 meters.This powerful tank cleaning machine is widely used to clean tank for production, shipment and storage in many industries like petrochemical, food and beverage process, bio pharmaceutical, fermentaion and so on. Besides, it is a high-impact unit to powerfully clean trash bin washing with high pressure, reducing the workload of cleaner.

This tank cleaning nozzle can be suitable for two types cleaning:

•high-concentration chemical recirculation cleaning

•low-pressure and high-volume cleaning

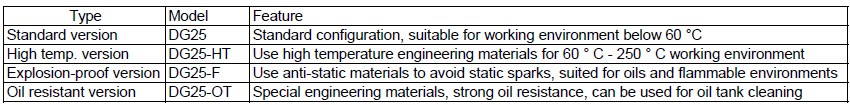

There are different versions of the powerful tank cleaning machine including:

standard type, high temperature resistence type, explosion-proof type and oil resistant type.

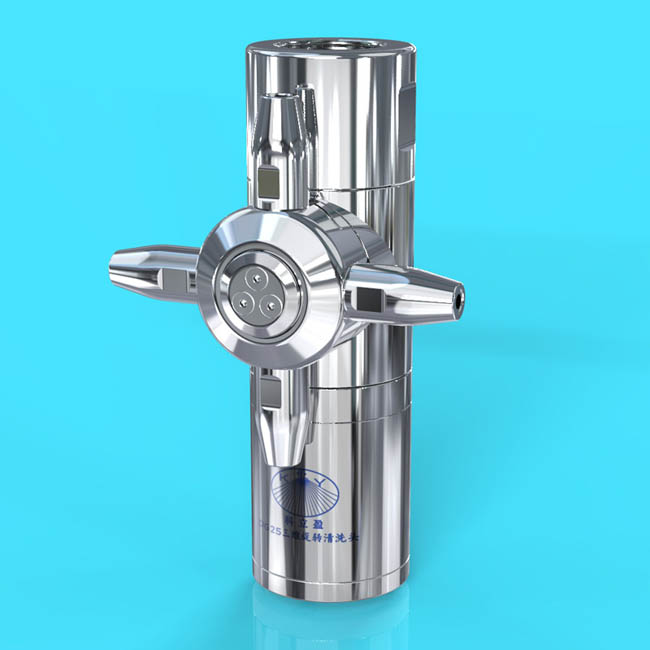

High impact 3 D tank cleaning machine


Working Principle:

Tank cleaning machine, tank cleaning nozzle, tank cleaning head, tank washing nozzle
Impeller is driven by cleaning fluid and drives internal reduction mechanism. Gear mechanism operates according to set track to realize the revolution and the rotation, thereby achieving 360° thorough cleaning.

Features & Benefits:

 Tank cleaning machine, tank cleaning nozzle, tank cleaning head, tank washing nozzle ，tank cleaning device

 ● Optimized structural design results in a water jet that produces greater impact

 ● Excellent sealing design, less than 3% leakage, thus saves cleaning fluid

 ● Independent gearbox design protects gear from damage and can work in poor water quality

 ● Adopt high hardness and wear resistant materials, long service life

 ● The rotating shaft and other parts are made of tungsten carbide, which has a longer service life
 ● Independent gearbox is designed withseparate sealing, cleaning fluid does not pass through gearbox

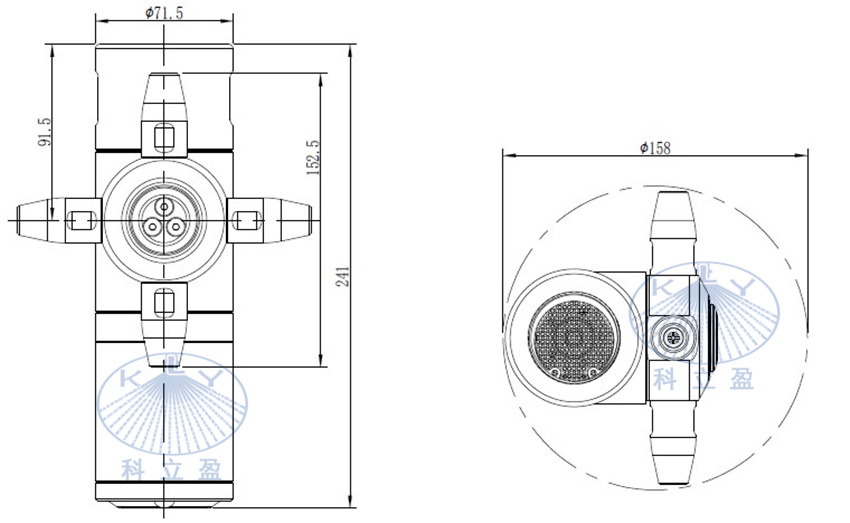

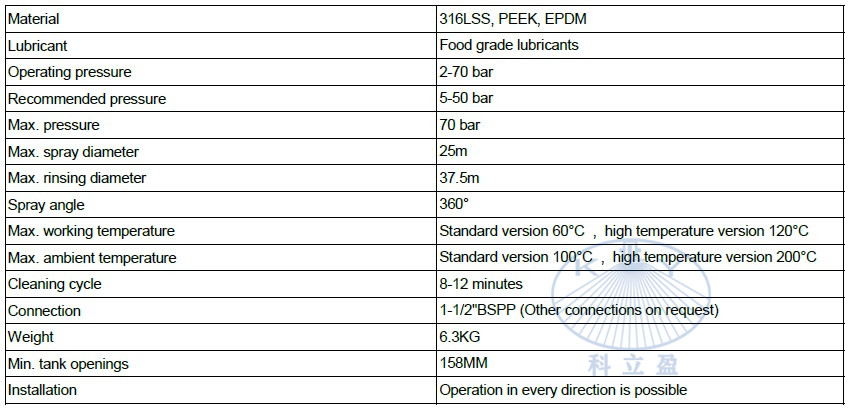

Technical Data:

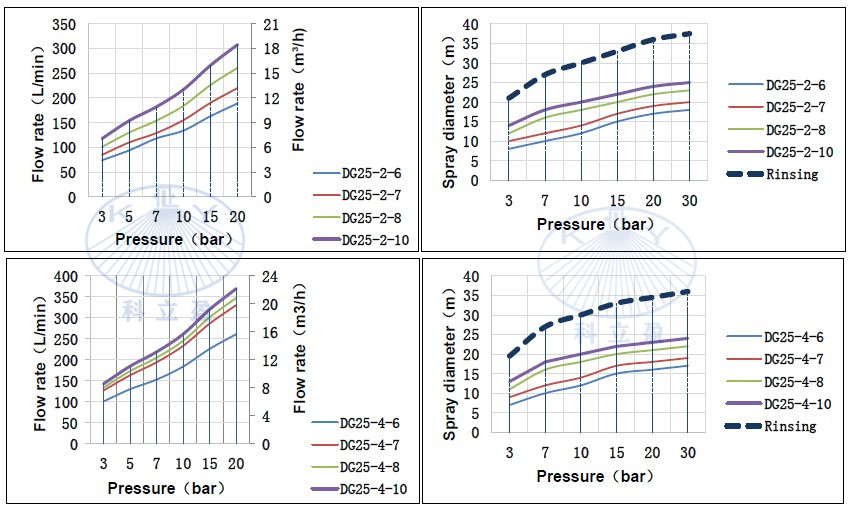

Performance curve:

Tank cleaning machine, tank cleaning nozzle, tank cleaning head, tank washing nozzle ，tank cleaning device
