    Tank cleaning machine

    High impact 3D rotary tank washer

    Model number: DG8 jet wash water tank cleaning machine





    Working Principle:

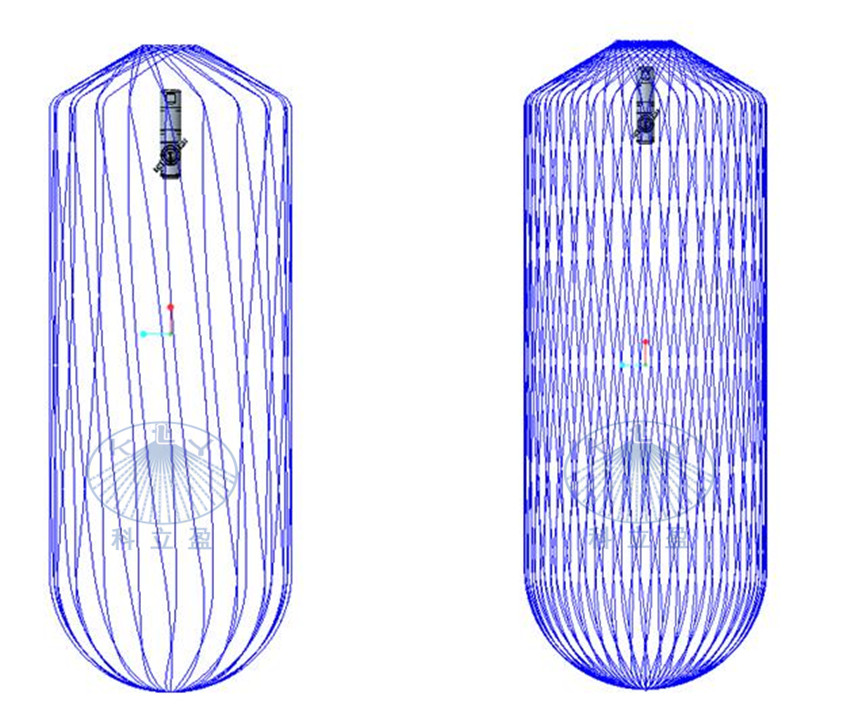

    Impeller is driven by cleaning fluid and drives internal reduction mechanism. Gear mechanism operates according to set track to realize the revolution and the rotation, thereby achieving 360° and 180°  thorough cleaning.




    Features & Benefits:



     ● Optimized structural design results in a water jet that produces greater impact

     ● Excellent sealing design, less than 3% leakage, thus saves cleaning fluid

     ● Independent gearbox design protects gear from damage and can work in poor water quality

     ● Adopt high hardness and wear resistant materials, long service life

     ● The rotating shaft and other parts are made of tungsten carbide, which has a longer service life
     ● Independent gearbox is designed withseparate sealing, cleaning fluid does not pass through gearbox
     ● Overall optimized design can reach the minum passing diameter of 88mm openings

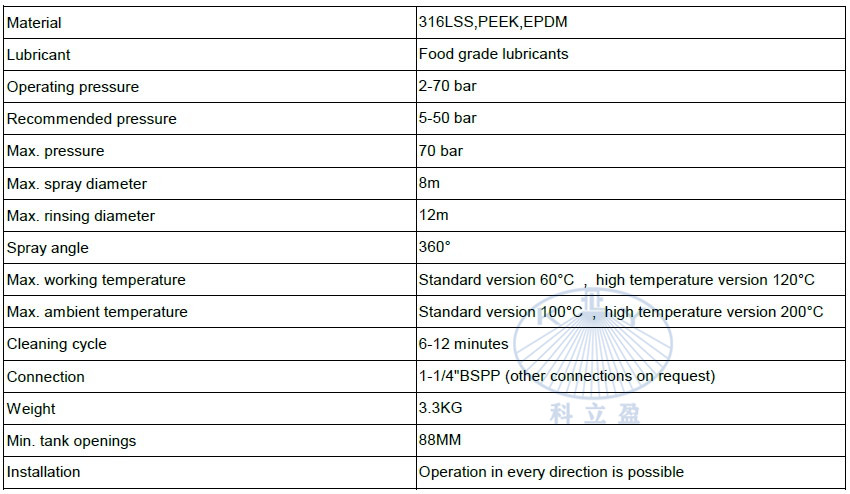

    Technical Data:

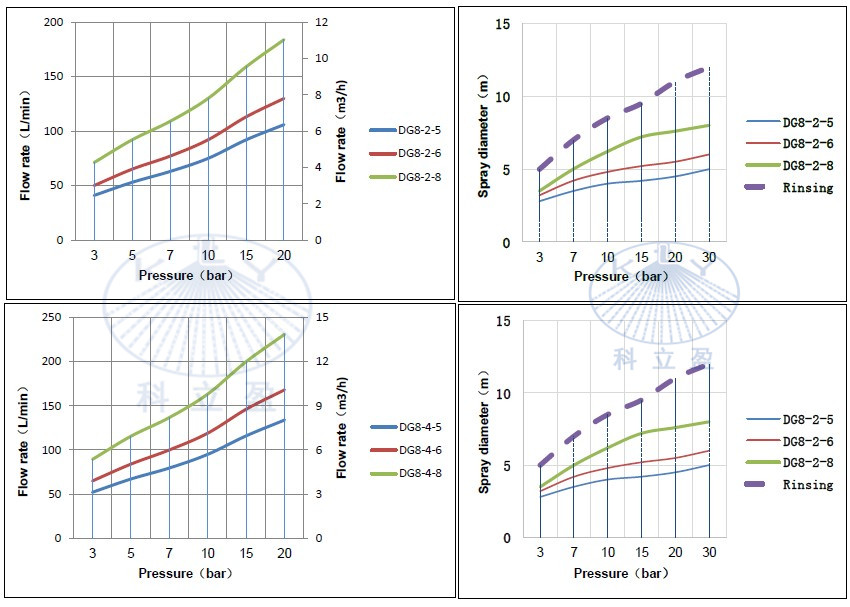

    Performance curve:

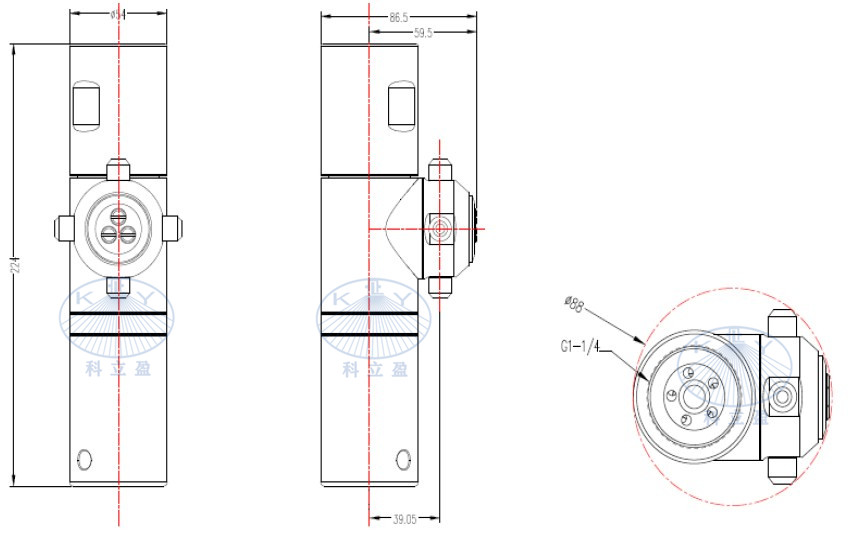

    Dimensions:



    Cleaning Effection ( Before & After ):




    Application:

    KLY DG8 rotary tank washer is suitable for 3D cleaning of small to medium sized tanks,vessel or machines. It is commonly used in beer industry, petroleum, beverage,fuel ethanol, chemical, industrial fermentation,marine and where a high cleaning performance is required.

    KELIYING broad range of tank cleaning machines, reaction drives, static spray balls, and spray nozzles,rotary spray nozzles, 3d high impact tank cleaning nozzles give us the opportunity to provide the right solution to your most challenging tank cleaning issues.
Last：Automatic tank cleaning device, portable tank washing machine Last：Portable and Detachable 3D Tank Cleaning Heads | High Pressure Cleaning Head for Tank

Recommended 推荐内容

Related products 产品

Contact Information
TEL: +86 02036269566
Fax: +86-020-36269969
Mob: +86 13725126489
E-mail: fiona@cleanspraying.com
E-mail:
E-mail:
Address: No.5,Nanling Industrial Zone, Longgui, Taihe Street,Taihe Town, Baiyun District, Guangzhou, 510445 Guangdong, China

Automated washing vs manual washing

●Improvement of the washing process: less time, less consumption and better and more reliable quality. The washing procedures can be inserted into the company quality system.
●safety of operators at the workplace.
●Need to reduce unskilled labor(KELIYING automatic washing machine : 2 to 5 minutes).
●Economic need to reduce the waste produced.
●Economic need for the reduction of the washing fluid in purchase.
●Increased washing quality.
●Increased control and measurement of production levels.

KELIYING vs other washing machines

●Highest quality Tank cleaning nozzles:KELIYING offers tank cleaning nozzles with 5 to1500 bar pressure for container or tank volume of 0.1 cubic to 10000 cubic meters.
●Customized Tank Cleaning and tank washing equipment products:We offer a total solution by providing onsite surveys, analysis, design, and engineering support for tank cleaning projects.
●Washing tests and consulting:Suitable machine configuration (type of pump and recommended options) to optimize consumption and achieve the required production quota.
●Service:"On-line" support and remote assistance also thanks to step-by-step video tutorials that allow the customer to perform maintenance activities.
