Automatic tank cleaning device, portable tank washing machine

 Tip: click the picture to enlarge.
TCM15 tank cleaning machine
  • Product introduction
  • Inquiry now

    KELIYING broad range of  tank cleaning machines, reaction drives, static spray balls, spray nozzles,rotary spray nozzles, and 3d high impact tank cleaning nozzles give us the opportunity to provide the right solution to your most challenging tank cleaning issues.

    High impact 3D rotary tank washer

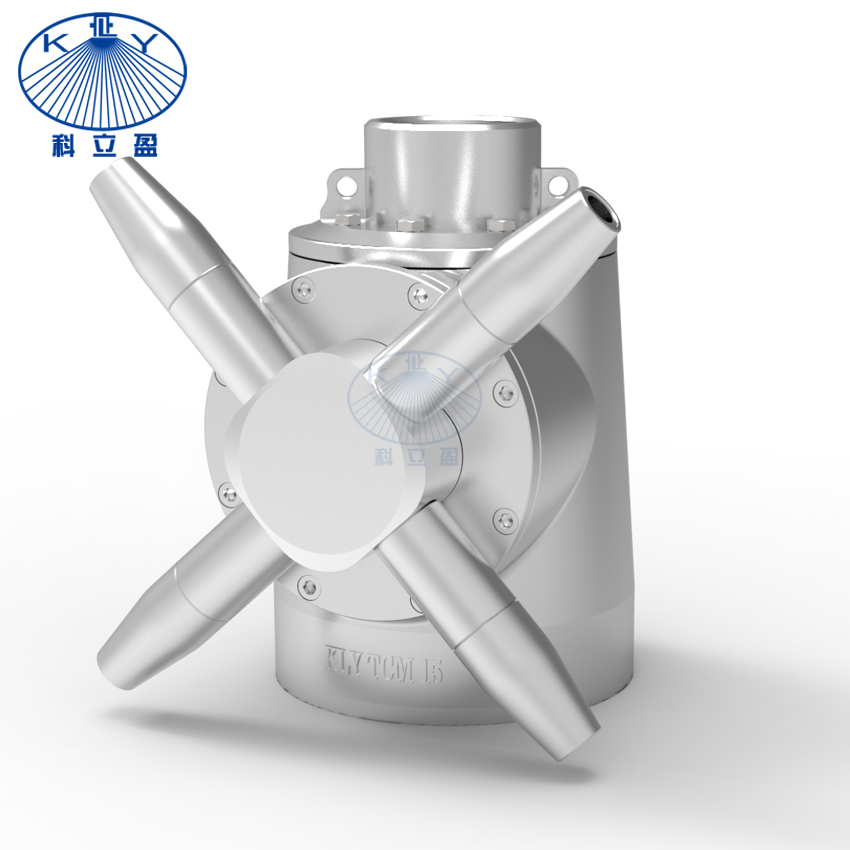

    Model number: TCM15 Automatic tank cleaning device, portable tank washing machine




    Working Principle:


    KLY TCM15 tank washer drives the impeller through cleaning liquid and drives the transmission mechanism. The speed of rotation is regulated by the worm gear reduction mechanism. Operate according to the set trajectory to realize revolution and rotation, so as to realize 360° coverage cleaning.




    Features & Benefits:



     ● Optimized structural design results in a water jet that produces greater impact

     ● Sturdy and durable, long service life, easy to maintain

     ● Optimized cycle time, lower liquid consumption and lower energy costs

     ● Design for automatic cleaning of medium and large sized tank

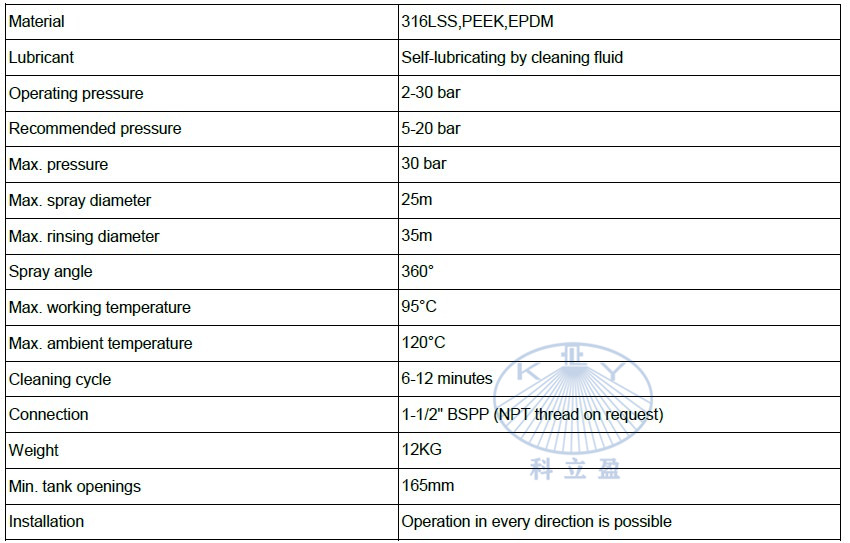

    Technical Data:

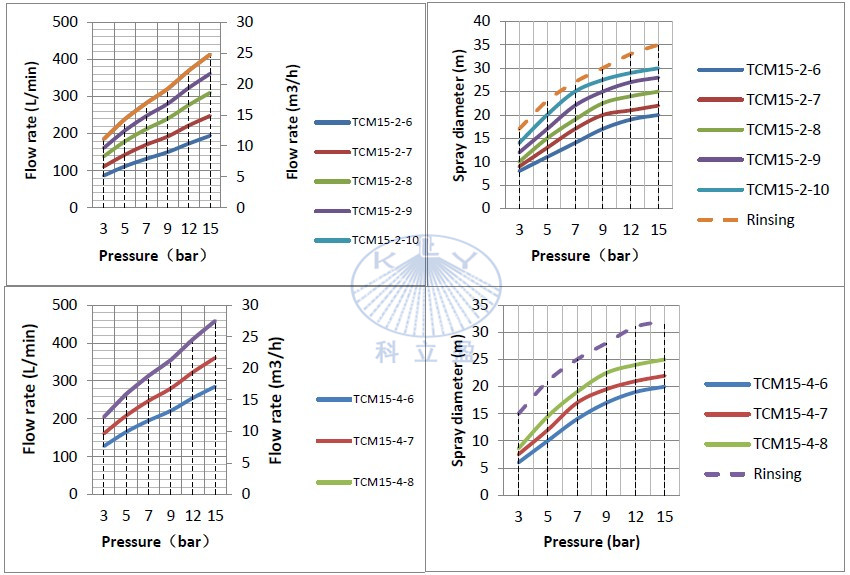

    Performance curve:

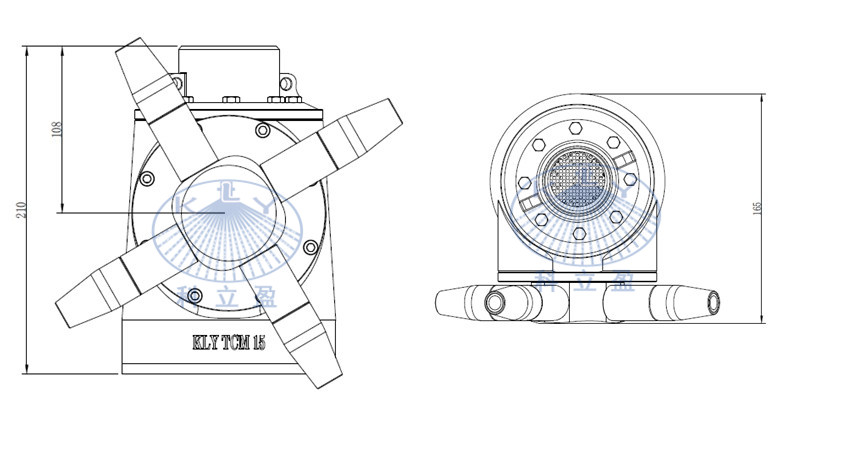

    Dimensions:



    Cleaning Effection ( Before & After ):









    Application:
    KLY TCM15 rotary tank washer is suitable for 3D cleaning of medium to large sized tanks,vessel or machines. It is commonly used in beer industry, petroleum, beverage,fuel ethanol, chemical, industrial fermentation,marine and where a high cleaning performance is required.

    ● Cleaning tanker trucks
    ● Cleaning rail cars
    ● Cleaning petrochemical reactors
    ● Cleaning residues from chemical tanks
    ● Cleaning sewage tanks
    ● Cleaning silt from water supply tanks
    ● Cleaning pharmaceutical tanks
    ● Cleaning food processing tanks
    ● Cleaning pulp storage/processing tanks
    ● Cleaning blenders
    ● Cleaning storage tanks
    ● Cargo tank cleaning
    ● Oil tankers
    ● Product tankers
    ● Chemical tankers
    ● Dry bulk carriers
    ● vessels tank cleaning
    ● Barges
    ● Offshore supply vessels (OSV) for driling mud tank cleaning systems
    ● Platform supply vessels (PSV) and drill ships for mud pit tank cleaning systems
    ● Anchor handling tugs
    ● Drill ships
    ● Platforms
    ● Ferries
    ● Cruise ships
    KELIYING is the recognized name in providing the highest quality Tank cleaning nozzles，Customized Tank Cleaning and tank washing equipment products and systems Manufacturer.
    We offer a total solution by providing onsite surveys, analysis, design, and engineering support for tank cleaning projects.
    KELIYING tank cleaning devices and accessories are specially designed to work together to deliver optimal cleaning that is essential for compliance with industry and government regulations. Our “jet impingent technology” improves plant productivity by increasing each tank‘s production availability saving on operating costs related to water, energy, and chemical consumption. We are the greener .

    KELIYING  Maximize productivity with the proven and effective ,TANK CLEANING SOLUTIONS for Industrial Applications.

    KELIYING broad range of  tank cleaning machines, reaction drives, static spray balls, spray nozzles,rotary spray nozzles, and 3d high impact tank cleaning nozzles give us the opportunity to provide the right solution to your most challenging tank cleaning issues.

Last：KELIYING Chemical Reactor Cleaning Systems Last：Jet wash water tank cleaning machine

Recommended 推荐内容

Related products 产品

Contact Information
TEL: +86 02036269566
Fax: +86-020-36269969
Mob: +86 13725126489
E-mail: fiona@cleanspraying.com
E-mail:
E-mail:
Address: No.5,Nanling Industrial Zone, Longgui, Taihe Street,Taihe Town, Baiyun District, Guangzhou, 510445 Guangdong, China

Automated washing vs manual washing

●Improvement of the washing process: less time, less consumption and better and more reliable quality. The washing procedures can be inserted into the company quality system.
●safety of operators at the workplace.
●Need to reduce unskilled labor(KELIYING automatic washing machine : 2 to 5 minutes).
●Economic need to reduce the waste produced.
●Economic need for the reduction of the washing fluid in purchase.
●Increased washing quality.
●Increased control and measurement of production levels.

KELIYING vs other washing machines

●Highest quality Tank cleaning nozzles:KELIYING offers tank cleaning nozzles with 5 to1500 bar pressure for container or tank volume of 0.1 cubic to 10000 cubic meters.
●Customized Tank Cleaning and tank washing equipment products:We offer a total solution by providing onsite surveys, analysis, design, and engineering support for tank cleaning projects.
●Washing tests and consulting:Suitable machine configuration (type of pump and recommended options) to optimize consumption and achieve the required production quota.
●Service:"On-line" support and remote assistance also thanks to step-by-step video tutorials that allow the customer to perform maintenance activities.
