TCC5 high pressure cleaning heads

 Tip: click the picture to enlarge.
  • Product introduction
  • Inquiry now

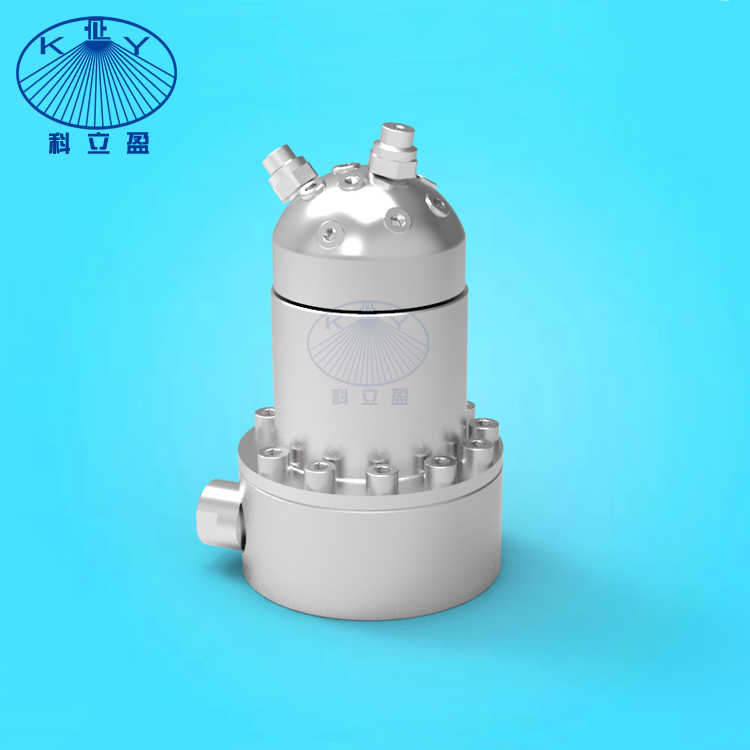

    TCC5 high pressure cleaner

    This TCC5 high pressure 2D rotary washer is designed for cleaning tanks in auto industry, chemical industry, coating industry, and where high pressure cleaning is required, such as high sppeed train carriage, car, and dustbin, etc.

    Working Principle:


    The cleaner drives the impeller through cleaning fluid, to drive the rotary ball head through the reduction gear. Using different nozzle arrangements on the spray head to change the cleaning angle from 0 to 120 degrees and ensure the effective cleaning.



    Features & Benefits:



     ● Optimized structure design enables the water jet to produce greater impact.
     ● Excellent seal design, ensure a low leakage of 1% cleaning fluid. nozzle have a unique.

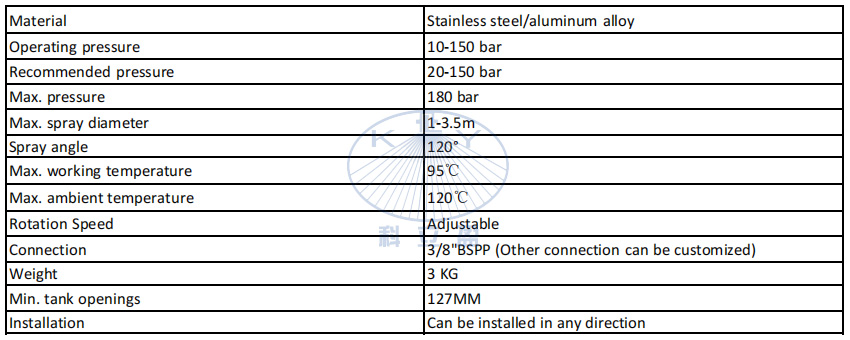

    Technical Data:

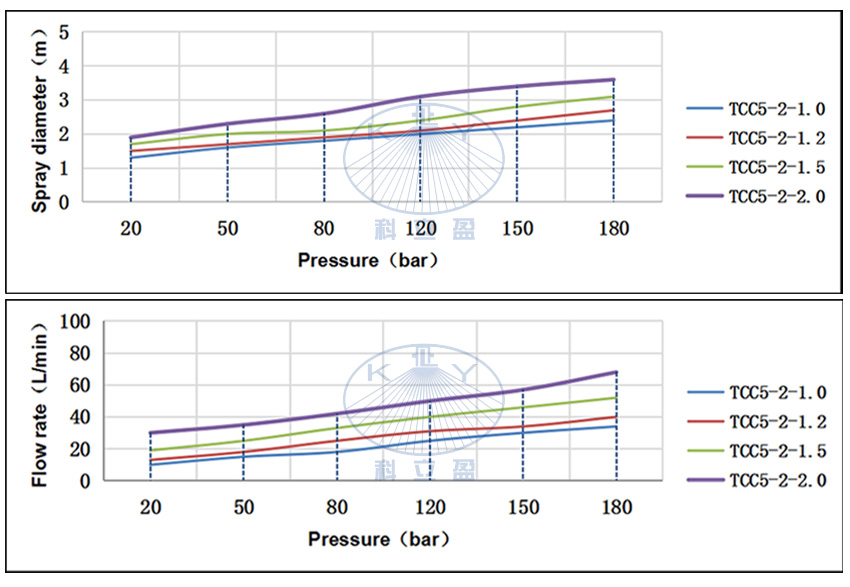

    Performance:

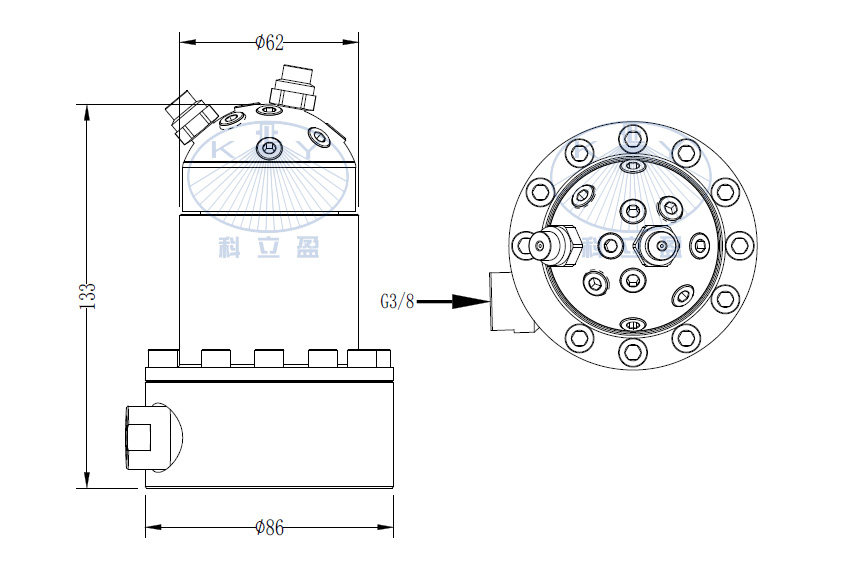

    Dimensions:

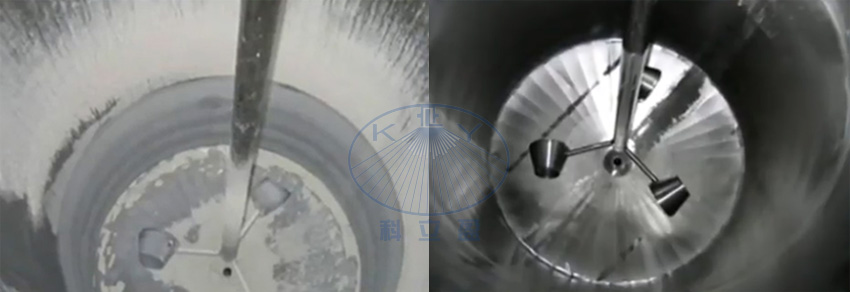

    Cleaning Effection ( Before & After ):




    Application:

    This TCC5 high pressure 2D rotary washer is designed for cleaning tanks in auto industry, chemical industry, coating industry, and where high pressure cleaning is required, such as high sppeed train carriage, car, and dustbin, etc.


    Self-rotating cleaning head for trash can




Last：TCC2 High pressure dustbin cleaning nozzle,pressure washer cleaning head Last：Air pneumatic retractable rotary cleaner

Recommended 推荐内容

Related products 产品

Contact Information
TEL: +86 02036269566
Fax: +86-020-36269969
Mob: +86 13725126489
E-mail: fiona@cleanspraying.com
E-mail:
E-mail:
Address: No.5,Nanling Industrial Zone, Longgui, Taihe Street,Taihe Town, Baiyun District, Guangzhou, 510445 Guangdong, China

Automated washing vs manual washing

●Improvement of the washing process: less time, less consumption and better and more reliable quality. The washing procedures can be inserted into the company quality system.
●safety of operators at the workplace.
●Need to reduce unskilled labor(KELIYING automatic washing machine : 2 to 5 minutes).
●Economic need to reduce the waste produced.
●Economic need for the reduction of the washing fluid in purchase.
●Increased washing quality.
●Increased control and measurement of production levels.

KELIYING vs other washing machines

●Highest quality Tank cleaning nozzles:KELIYING offers tank cleaning nozzles with 5 to1500 bar pressure for container or tank volume of 0.1 cubic to 10000 cubic meters.
●Customized Tank Cleaning and tank washing equipment products:We offer a total solution by providing onsite surveys, analysis, design, and engineering support for tank cleaning projects.
●Washing tests and consulting:Suitable machine configuration (type of pump and recommended options) to optimize consumption and achieve the required production quota.
●Service:"On-line" support and remote assistance also thanks to step-by-step video tutorials that allow the customer to perform maintenance activities.
