D38 self rotating rotary spray balls

 Tip: click the picture to enlarge.

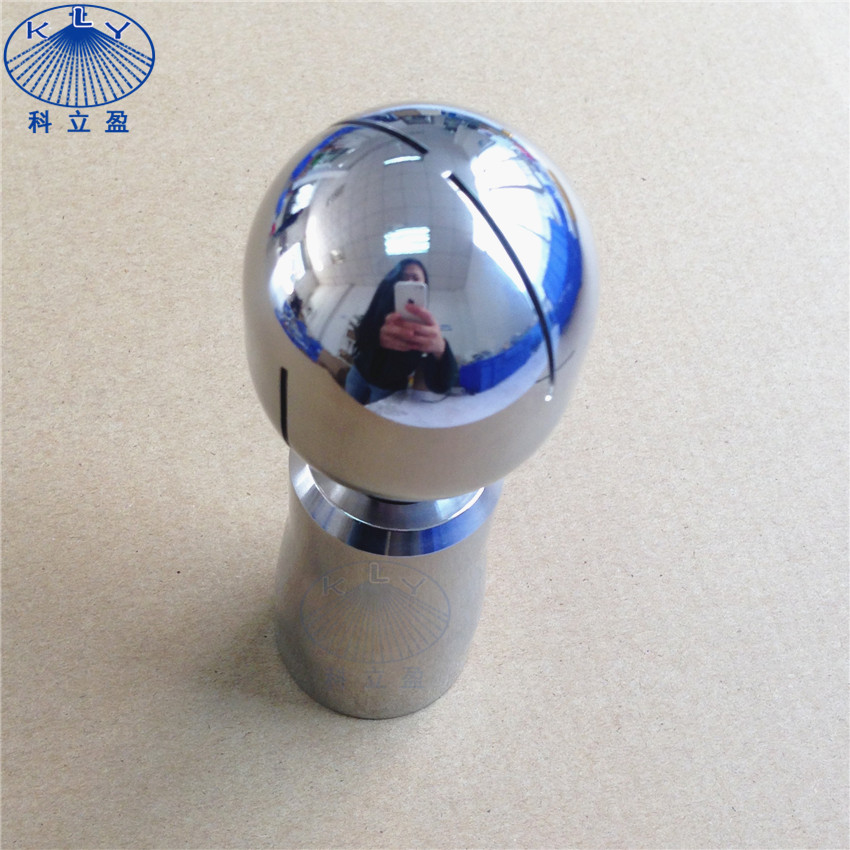

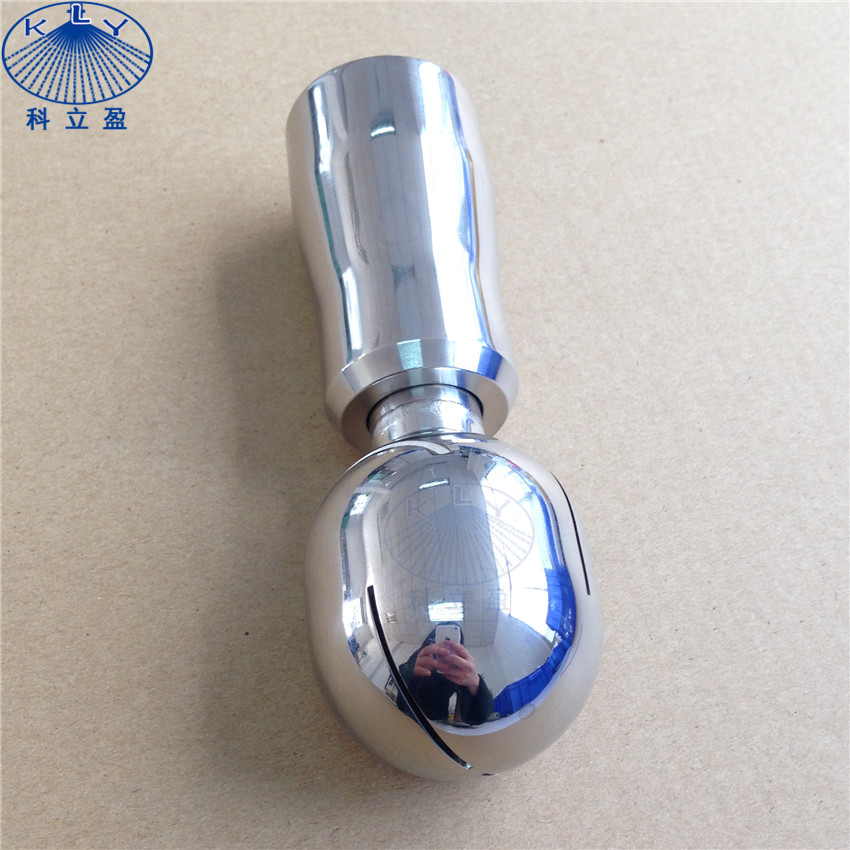

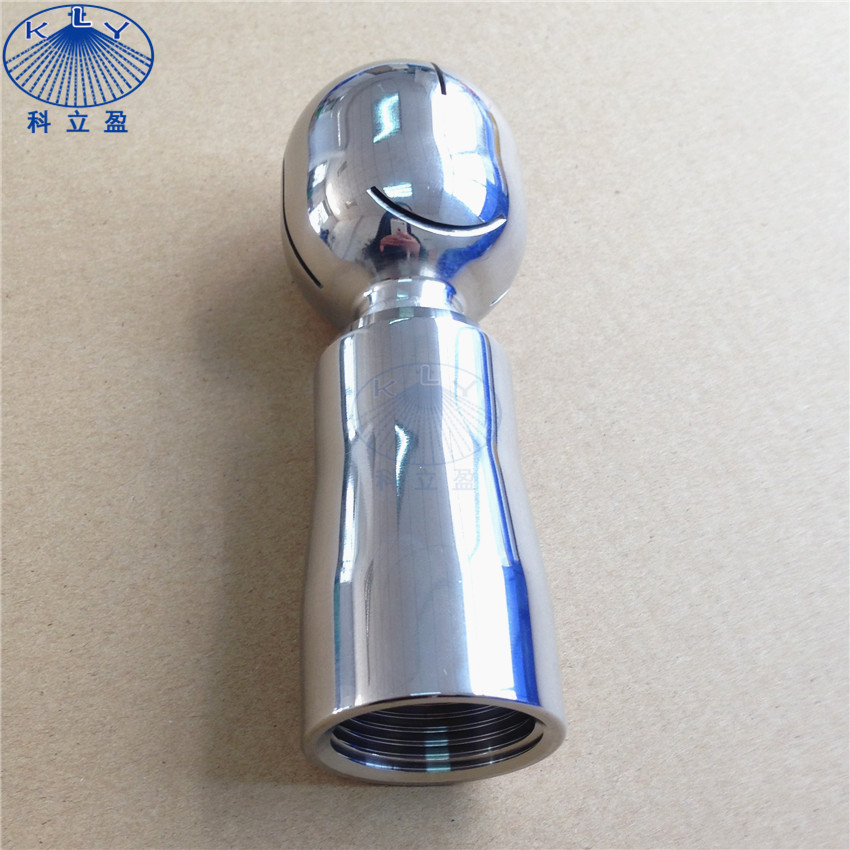

    D38 1" BSPP thread rotary spray ball





    Model D38 rotary spray ball
    Material 316LSS
    Connection 3/4" , 1" , 1 1/4" Slip-on or 1 1/2" welding
    Recommanded pressure 1.5-3 bar
    Temperature 130°
    Max. tank diameter 3.5m
    Application rinsing and cleaning of tanks / containers
    Filteration Line strainer with a mesh size of 0,3 mm/50 mesh

    cip rotating balls design features :

    1. Double bearing design with excellent rotation effects, and better stability and longer life bearing

    2. Self-cleaning self-lubricating design

    3. 360 degree self-rotating cleaning nozzle, cleaning every place of your containers

    4. Low consumption of liquid, operating at low pressure

    5. Driven and lubricated by the cleaning fluid

    6. The compact and hygienic design meets requirements for use in CIP system





    cip roaty spray balls common application:

    •  Soup kettles
    •  Yeast propagation tanks
    •  Batch processing vessels
    •  Ink and paint mixing vats
    •  Fluid bed dryers
    •  Brew kettles

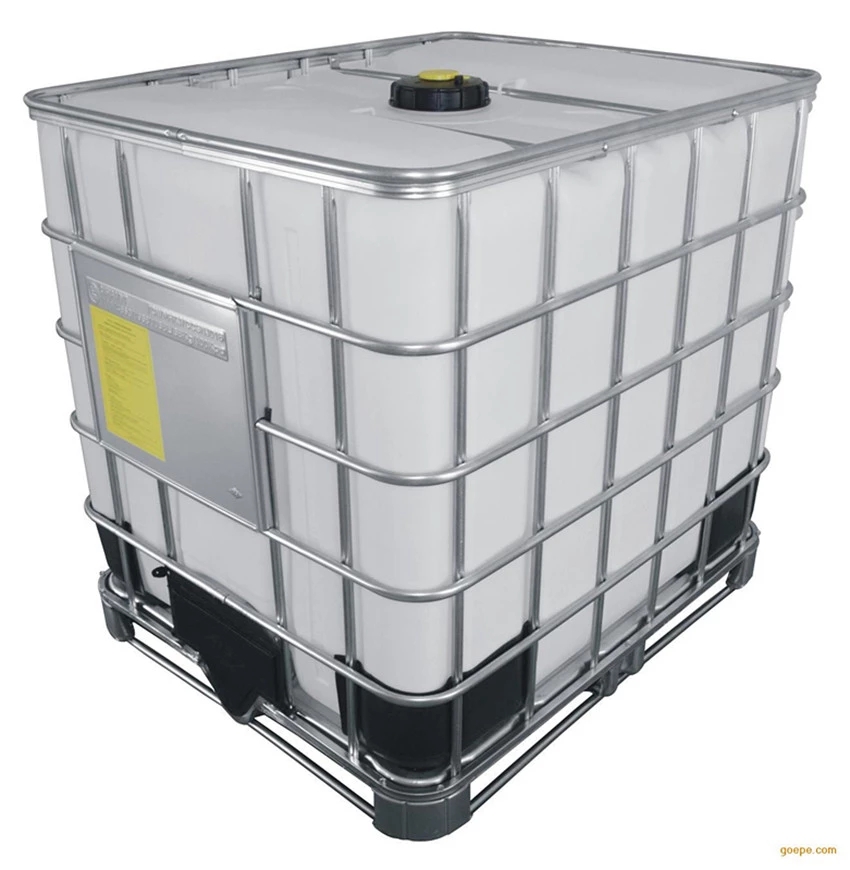

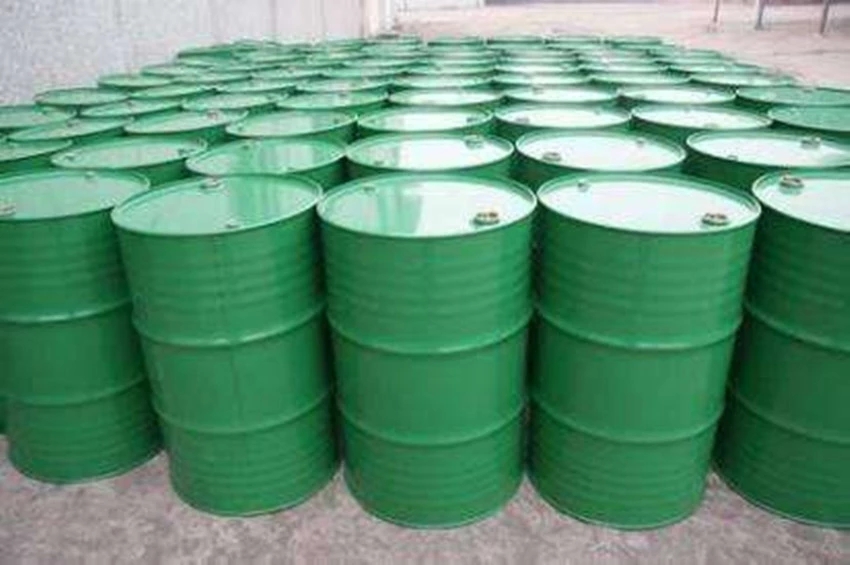

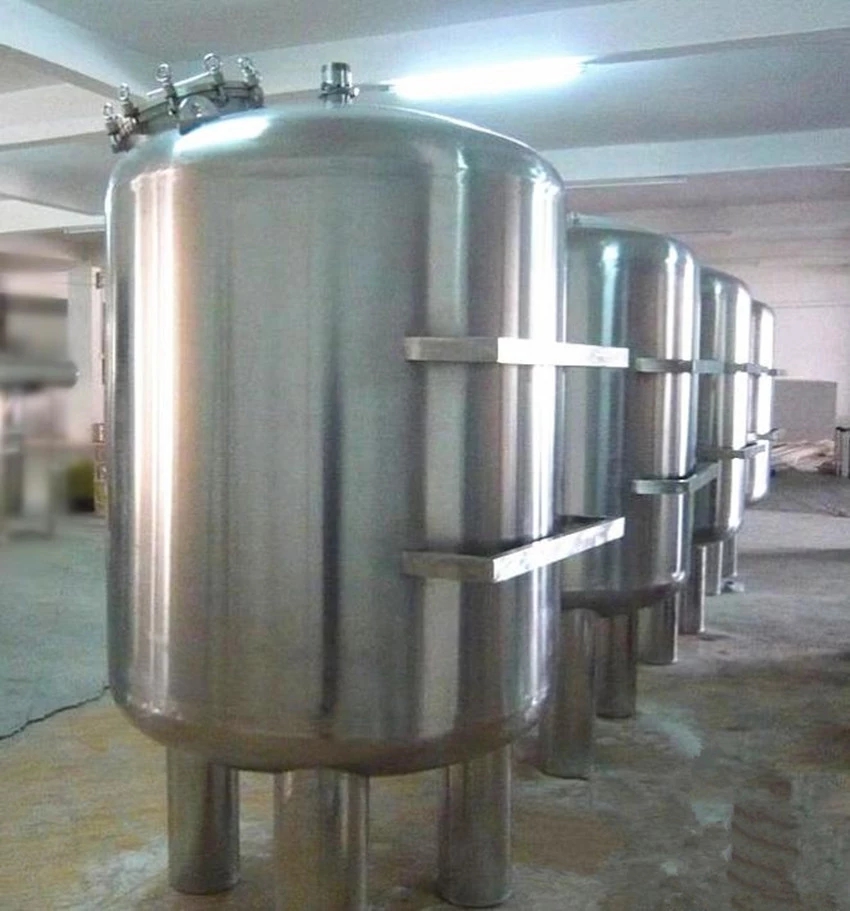

    • Storage tanks
    • Spray dryers
    • Commercial ovens

    e.g: in food industry, beverage industry, pharmaceutical industry and chemical industry



    cip spary balls

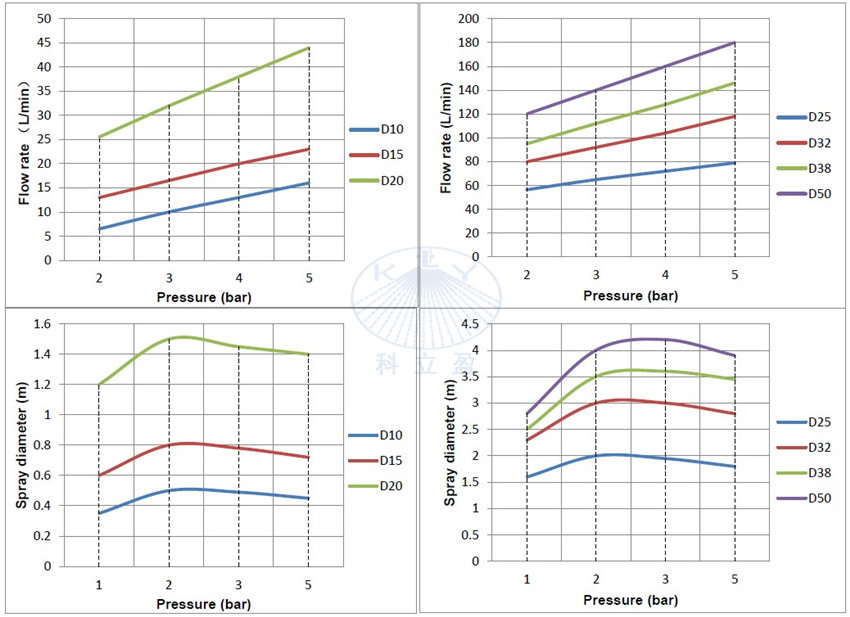

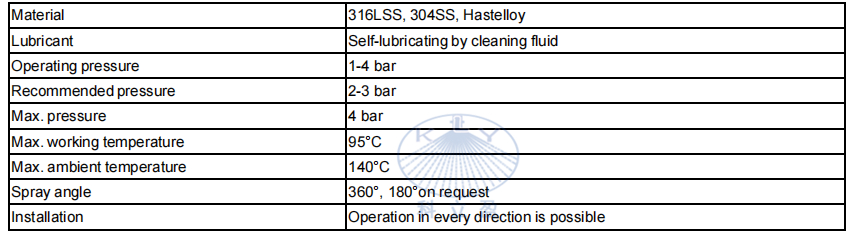

    roating spray balls performance Data

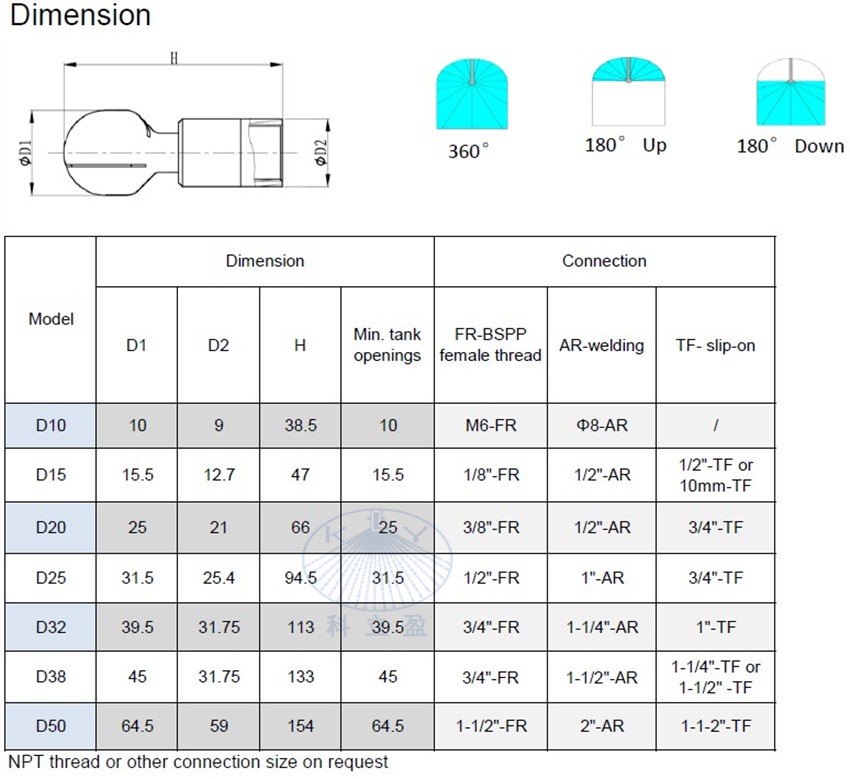

    Dimension:


    Application:


    KLY spray balls manufacturer D38 rotary spray heads are used to rinse and clean tank to 3m diameter.



    Rotating dairy milk tank cleaning nozzle
