Barrel cleaning equipment,drum washing nozzles

 Tip: click the picture to enlarge.

    3d tank cleaning heads,barrel cleaning equipment,3D 360 rotating tank drum washing nozzle

    • Model DG2 3D rotary jet head
      Material 316L SS
      Max. tank diameter  2m
      Operating pressure 5-20Bar
      Tempreture range 95°
      Installation Vertically facing downward
      Application

      Cleaning and rinsing of large tanks

      i.e. chemical industry,drink and food industry.





      Design feature:

      • Very high cleaning performance already at low pressure
      • Driven and lubricated by the cleaning fluid
      • Systematically cleans the entire tank interior(360°)
      • Robust, low-maintenance stainless steel construction
      • 100% thoroughly clean,every time
      • Optimized structural design makes water jet with greater impact
      • Excellent seal design, only 3% leakage of water
      • Designed with a separate gearbox,uneasy to get clogging



      Rorgrammed rotating machines:
      The cleaning fluid drives via the turbine an internal gear reducer that keeps the sprayer turning in two planes.
      In the course of spraying cycle, the jets sweep the entire inside surface of the tank according to the preprogrammed, model-specific pattern.
      This takes a certain amount of time, but these models generate the highest jet pressures (= force of impact) and are therefore ideal for very large tanks and the toughest of cleaning tasks.



      The standard machine configuration uses two or four nozzles to blast the tank walls and rinse all surfaces. In operation, the unit has to run for the cycle time between on type 2-4 min depending on type and pressure. This ensures full cleaning. For extremely difficult applications the cleaning time might have to be extend.




      Application:
      DG2 rotary jet head is suitable for 3D cleaning of small containers, such as oak barrels, beer barrels, 200L iron drums, etc. It is commonly used in beer industry, wine industry, beverage industry, and where a high cleaning performance is required.

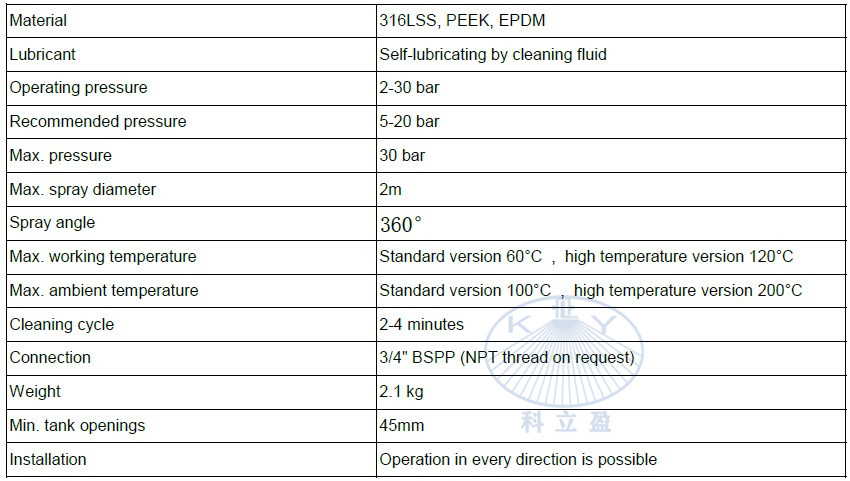

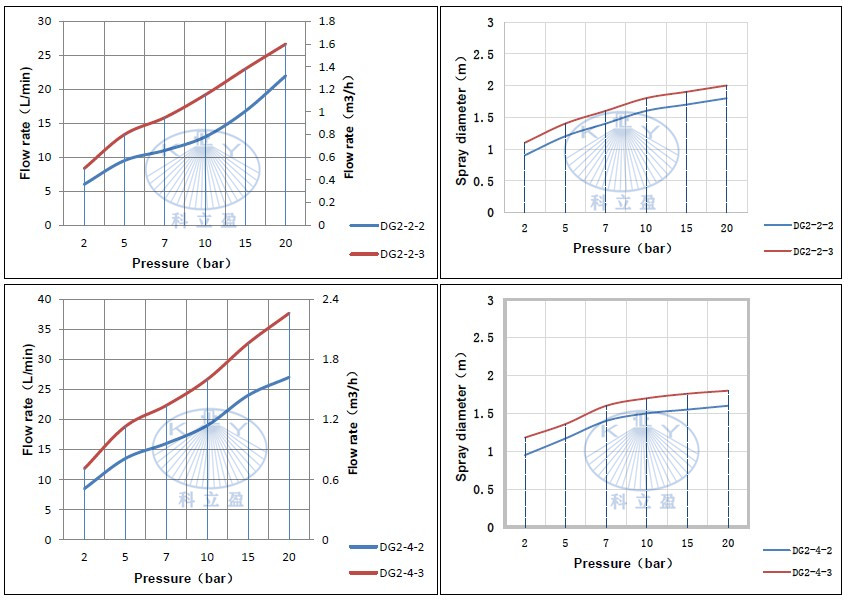

      Performance data:

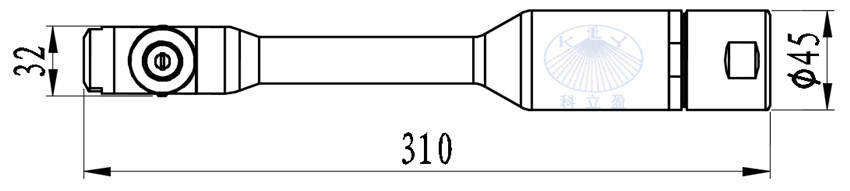

      Dimensions of DG2 tank cleaning nozzle:

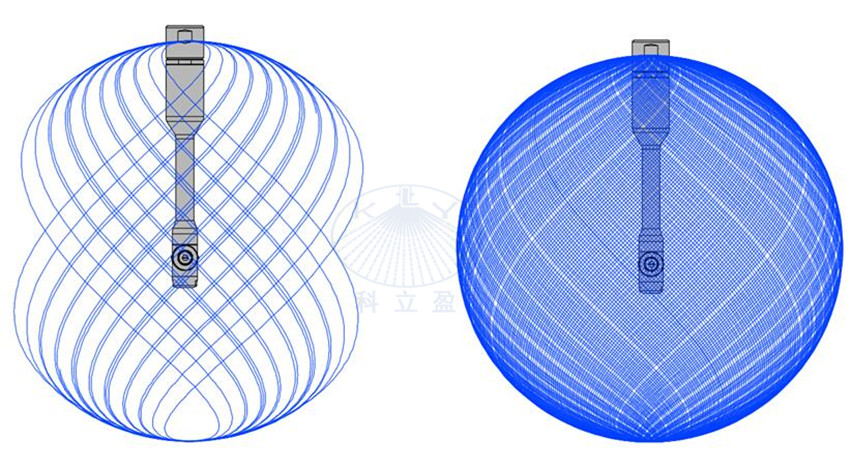

      Cleaning cycle:




      Application of DG2 3D rotary jet head:






      Cleaning effect:




      Product Packing:



      DG2 Rotary Tank Cleaning Machine Cleaning Head
