Oak barrel cleaning machine,drum washing nozzles

 Tip: click the picture to enlarge.
    Oak barrel cleaning machine,drum washing nozzles

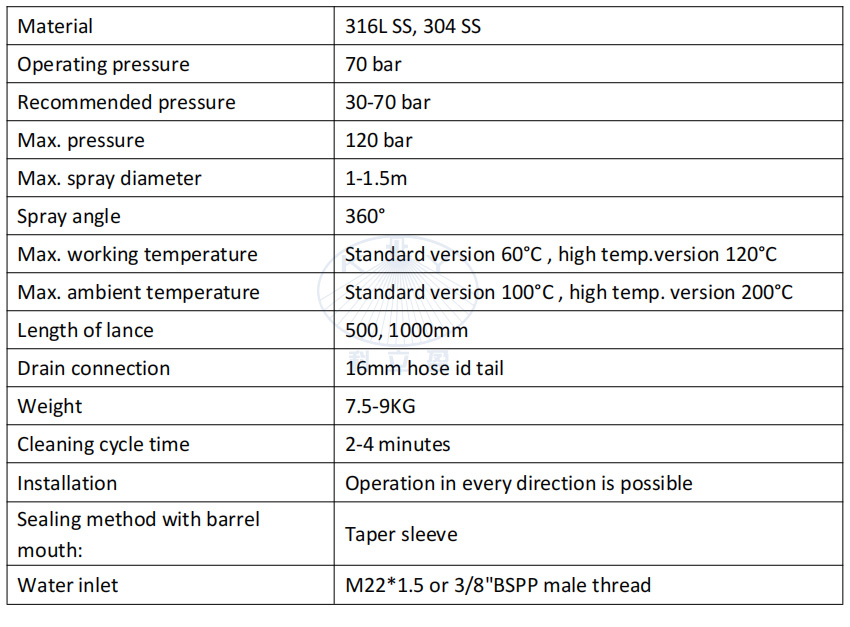

    Model

    Wine Barrel Cleaner

    Material

    316L SS

    Max. Spray Diameter

    1-1.5m

    Operating Pressure

    70Bar

    Max. Pressure

    120 Bar

    Tempreture Range

    80°

    Flow Rate

    12-18L/Min

    Connection

    Taper Sleeve

    Influent Interface

    M22*1.5 Or 3/8" Male Thread

    Drainage Interface

    Quick Connection

    Lubrication

    Cleaning Fluid

    Application

    Cleaning And Rinsing Of Barrel,Keg,Drum

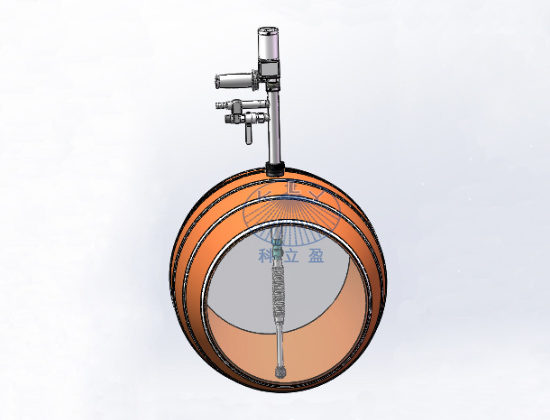

    Wine barrel cleaner

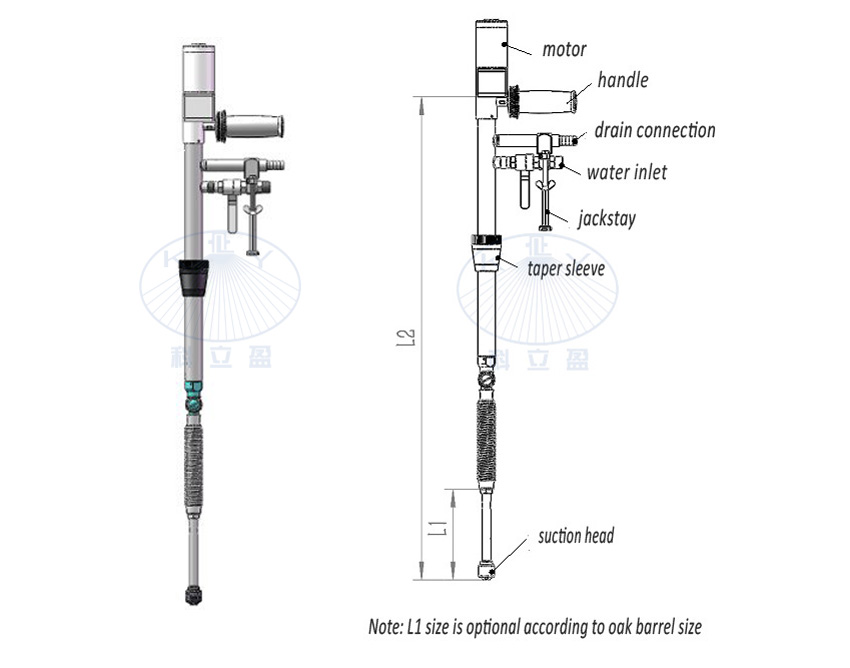

    The barrel cleaner is driven by external motor and external gear.

    The barrel cleaner work with a 3D rotary spray head, which guarantees an effective and gentle cleaning of the entire inner surface of the wine barrel with the 360-degree spray patterns.

    The slowly rotary spray head with special fan jet nozzles dissolves the tartar without damaging the wood structure.The barrel cleaners can be operated with any standard high pressure cleaner or a stationary high-pressure pump.

    Handheld unit, which cleans the inside of the barrel and siphons off the dirty water at the same time. The built-in high-pressure injector system creates a very strong vacuum, which sucks the barrel empty during and after the cleaning process.



    Design feature:

    Integrated suction system for dirty water

    Thoroughly 360° interior cleaning

    No need to turn and drain the barrel

    All parts with wash water contact made of stainless steel

    Low consumption of cleaning fluid with high cleaning performance

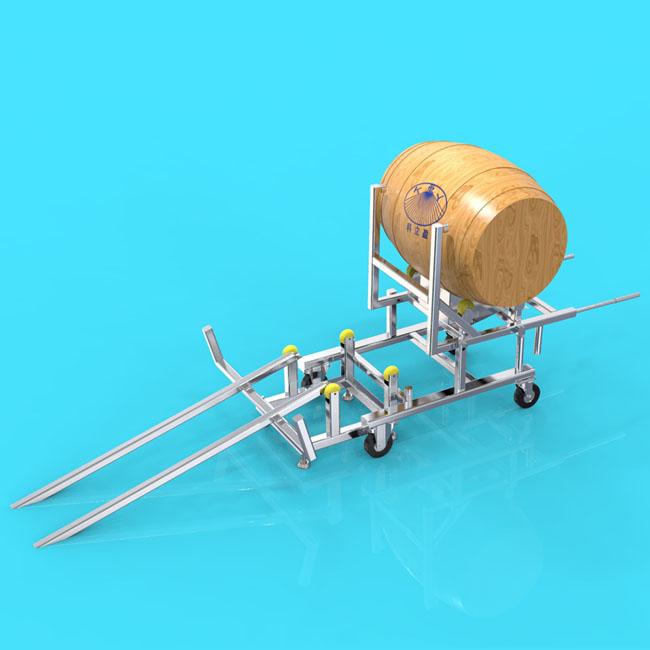

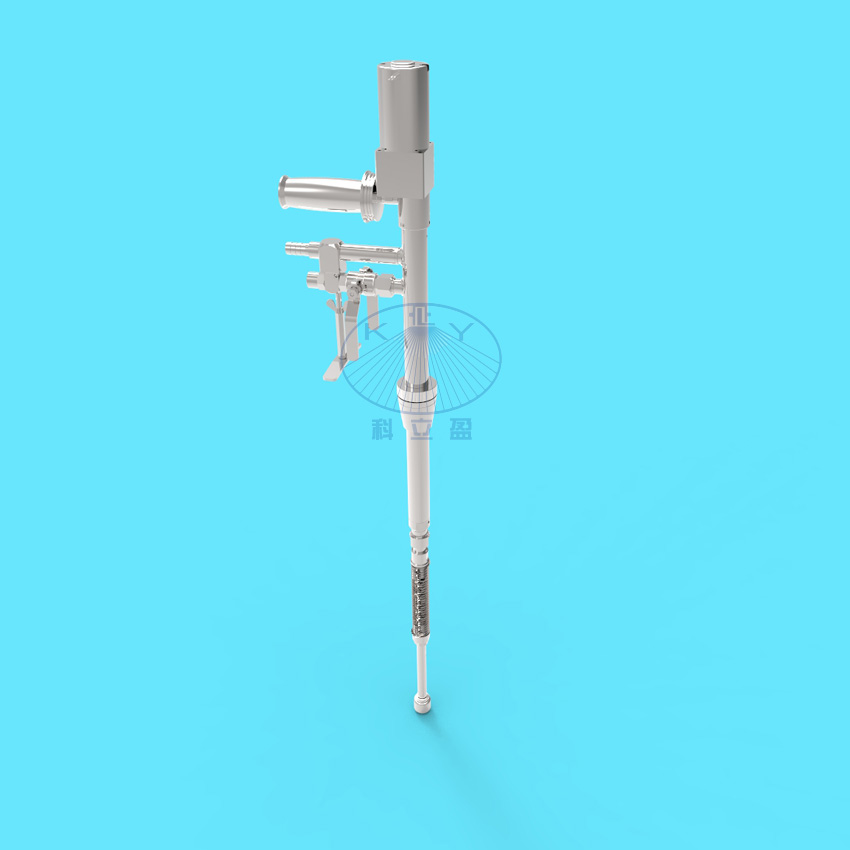

    Product Photos:

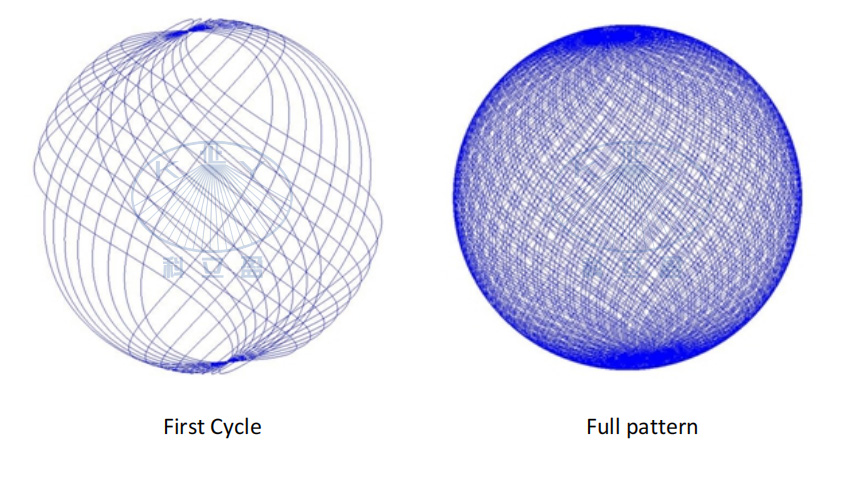

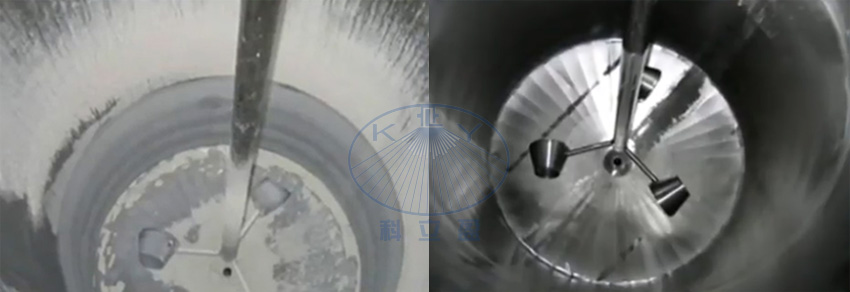

    Cleaning cycle:

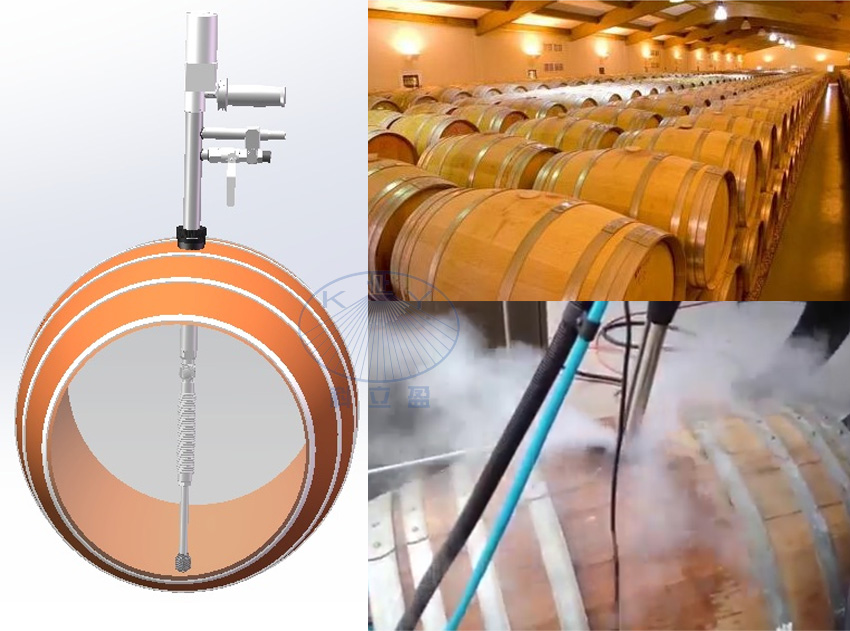

    Application of barrel cleaner:
