IBC rotary cleaning head for tank cleaning

 Tip: click the picture to enlarge.

    Max. spray diameter 5m,DG5 3D rotating tank cleaning nozzle




    Model DG5 3D rotating tank cleaning nozzle
    Material 316L SS
    Max. tank diameter  5m
    Operating pressure 5-20Bar
    Tempreture range 95°
    Installation Vertically facing downward
    Application

    Cleaning and rinsing of large tanks

    i.e. chemical industry,drink and food industry.



    Design feature:

    • Very high cleaning performance already at low pressure
    • Driven and lubricated by the cleaning fluid
    • Systematically cleans the entire tank interior(360°)
    • Robust, low-maintenance stainless steel construction
    • 100% thoroughly clean,every time
    • Optimized structural design makes water jet with greater impact
    • Excellent seal design, only 3% leakage of water
    • Designed with a separate gearbox,uneasy to get clogging

    Programmed rotation machines:

    The cleaning fluid drives via the turbine an internal gear reducer that keeps the sprayer turning in two planes.
    In the course of spraying cycle, the jets sweep the entire inside surface of the tank according to the preprogrammed, model-specific pattern.
    This takes a certain amount of time, but these models generate the highest jet pressures (= force of impact) and are therefore ideal for very large tanks and the toughest of cleaning tasks.



    The standard machine configuration uses two or four nozzles to blast the tank walls and rinse all surfaces. In operation, the unit has to run for the cycle time between on type 8 and 12 min depending on type and pressure. This ensures full cleaning. For extremely difficult applications the cleaning time might have to be extend.



    Application:







    DG5 rotating tank cleaning nozzle are suitable for small tanks, such as fuel ethanol, beer, chemical, industrial fermentation industry and the need for high impact cleaning occasions.

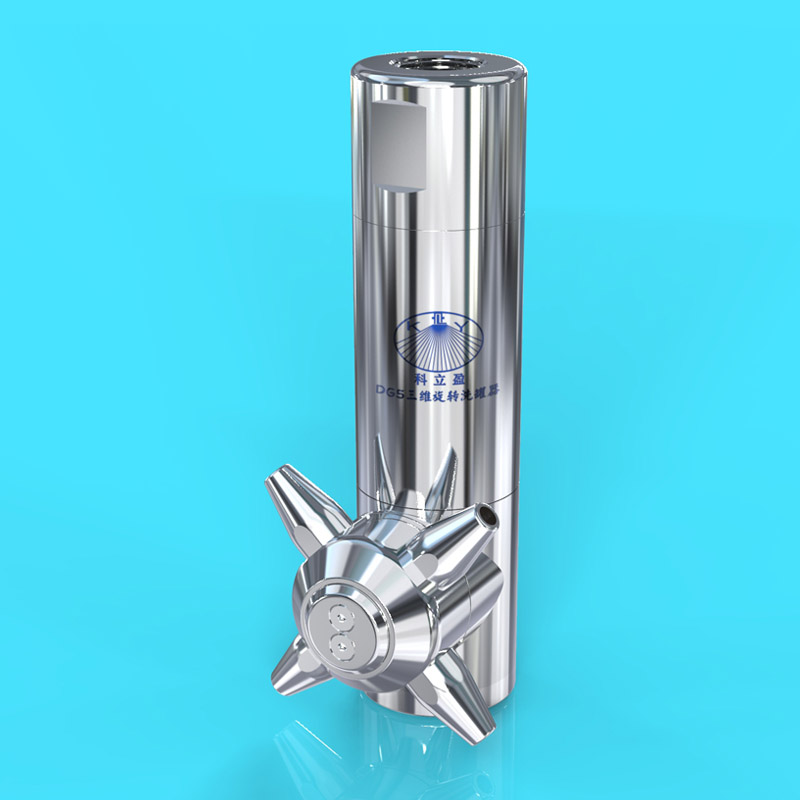

    Product Photos:

    Max. spray diameter 5m,DG5 3D rotating tank cleaning nozzle



    Performance data:




    Dimensions of DG5 tank cleaning nozzle:

    Max. spray diameter 5m,DG5 3D rotating tank cleaning nozzle









    Cleaning process:

    Max. spray diameter 5m,DG5 3D rotating tank cleaning nozzle

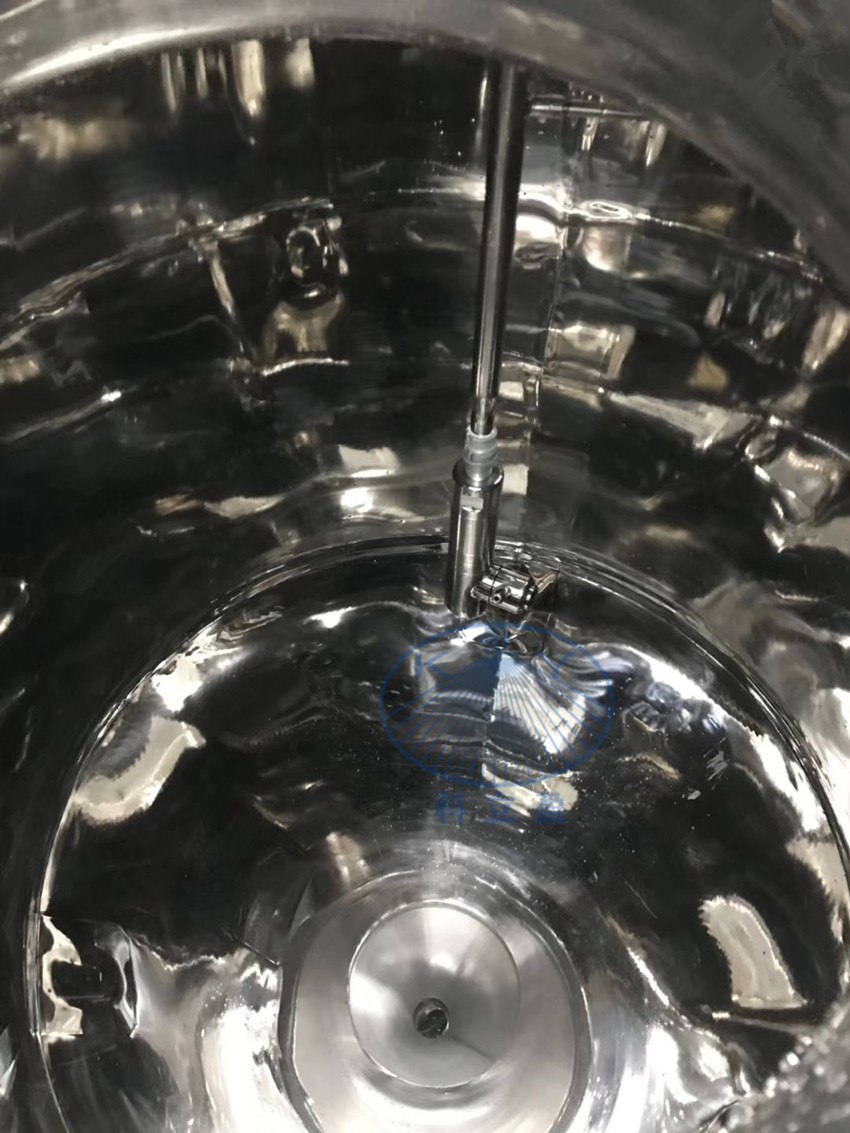

    Application of DG5 3D rotary tank cleaning nozzle:
