HP1000 high pressure 3D rotating nozzle, 3D tank cleaning heads

 Tip: click the picture to enlarge.
3D tank cleaning heads
  • Product introduction
  • Inquiry now

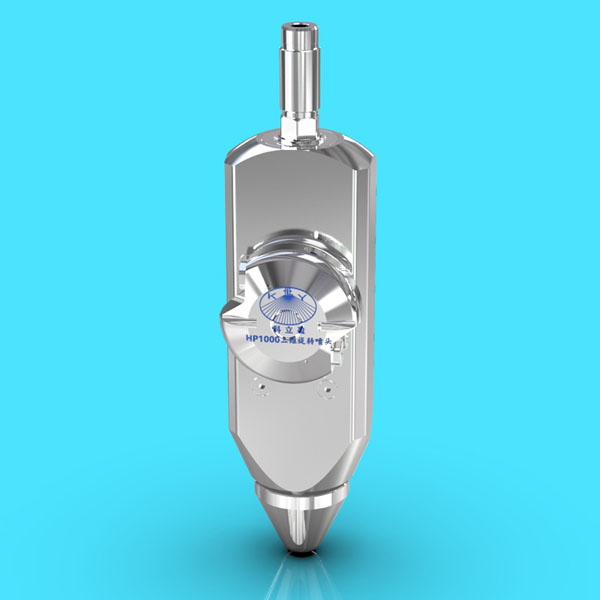

    HP1000 3D tank cleaning heads


    HP1000 high pressure tank cleaning machine can effectively clean boiler deposits, Coke, polymer, PVC resin or residue that is difficult to remove.


    Working Principle:


       The washer drives the transmission mechanism to rotate through the reaction force, regulates the rotation speed through the
       reducer    , and realizes the revolution and rotation through the transmission mechanism according to the set trajectory, thus
       forming a 360-degree injection mode to achieve complete tank coverage.



    Features & Benefits:


     ● Dynamic balance design is adopted to keep the rotation smooth and swing under high pressure.

     ● Stepless speed regulation, stepless control of cleaning cycle.
     ● Unique nozzle structure design enables the high-pressure water jet with greater impact force.
     ● Powerful high pressure water jet can efficiently clean the stubborn dirt.
     ● No need to enter the restricted space, greatly reduce labor intensity and avoid safety hazards.
     ● Long service life.

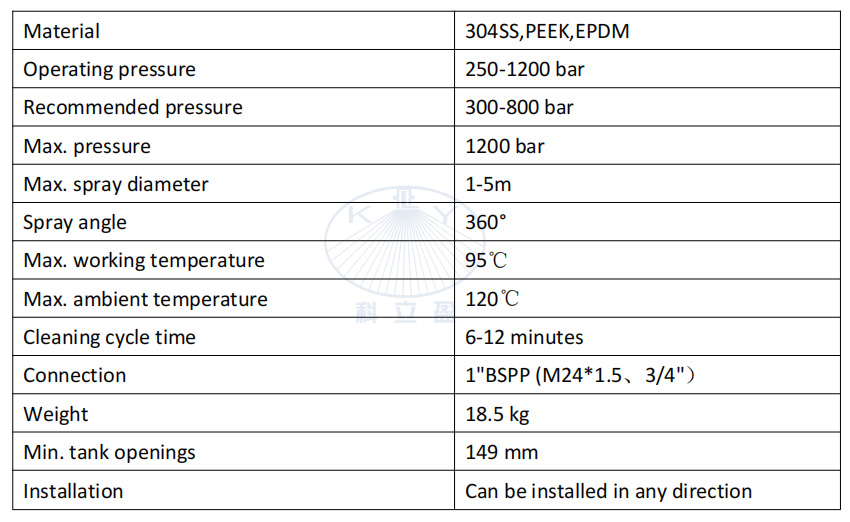

    Technical Data:

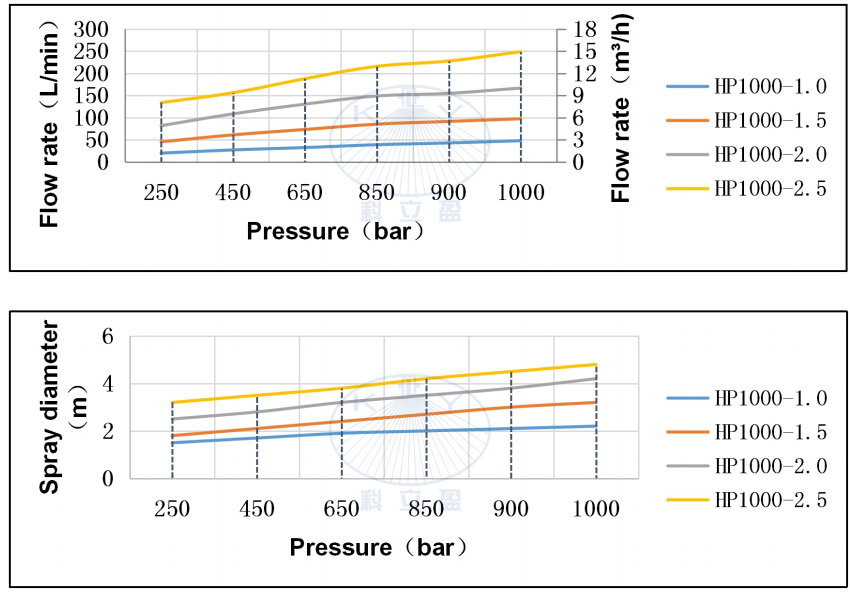

    Performance:

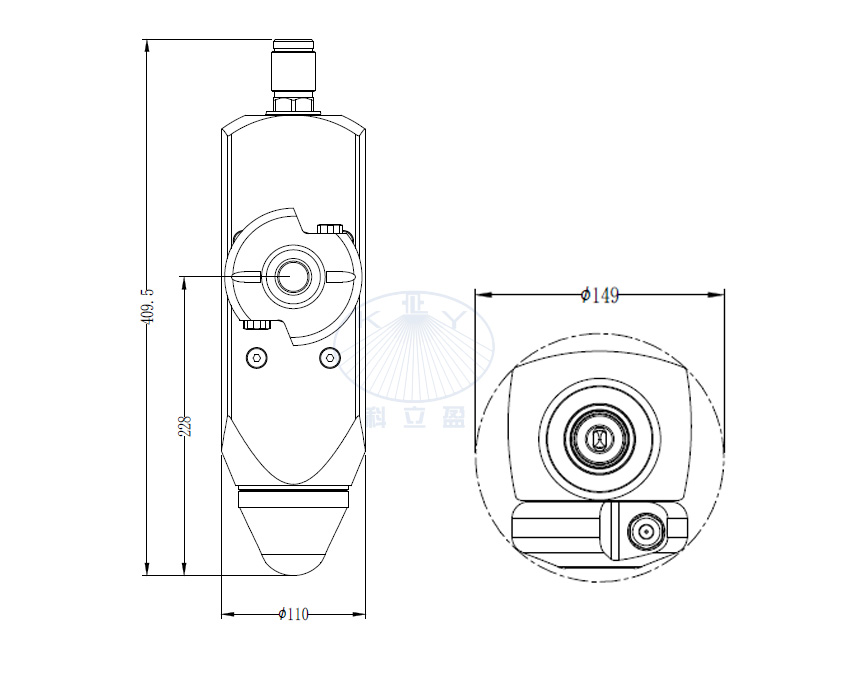

    Dimensions:

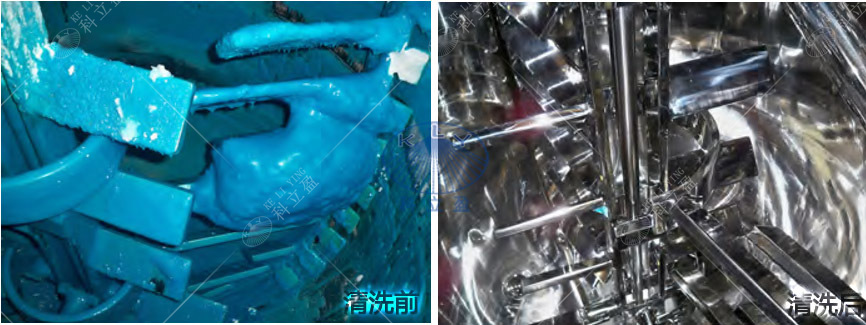

    Cleaning Effection ( Before & After ):







    Application:

      HP1000 high pressure tank cleaning nozzle is suitable for three dimension cleaning of containers, reactors, autoclaves, tanks,
       such as chemical, petrochemical, synthetic fiber, paper and food industry, chemical raw materials, coating industry and
       other occasions where requiring ultra-high pressure cleaning.
