    Rotary tank cleaning machine,water tank rotary jet head



    Model

    DG20 Rotary Jet Head For Tank Cleaning

    Material

    316L SS

    Max. Tank Diameter

    20m

    Min. Tank Openings

    160mm

    Operating Pressure

    5-20Bar

    Temperature Range

    90°

    Weight

    6kg

    Installation

    Operation In Every Direction Is Possible

    Connection

    1 1/2” BSPP (NPT Thread On Request)

    Application

    Cleaning And Rinsing Of Large Tanks

    I.E. Chemical Industry, Drink And Food Industry.



    DG20 rotary jet head for the largest tanks and most difficult applications, this gear driven cleaning nozzle is our most powerful.

    ● Very high cleaning performance already at low pressure

    ● Driven and lubricated by the cleaning fluid

    ● self-cleaning, self-flushing, and self-lubricating

    ● Systematically cleans the entire tank interior(360°)

    ● Robust, low-maintenance stainless steel construction

    ● 100% thoroughly clean, every time

    ● Optimized structural design makes water jet with greater impact

    ● Excellent seal design, only 3% leakage of water

    ● Designed with a separate gearbox, uneasy to get clogging

    ● Well suited for tank to diameter 20m



    Programmed rotation automatic water tank cleaning machine :

    The cleaning fluid drives via the turbine an internal gear reducer that keeps the sprayer turning in two planes.

    In the course of spraying cycle, the jets sweep the entire inside surface of the tank according to the set trajectory.

    This takes a certain amount of time, but these models generate the highest jet pressures (= force of impact) and are therefore ideal for the toughest of cleaning tasks.

    The standard machine configuration uses 4 nozzles to blast the tank walls and rinse all surfaces. In operation, the unit has to run for the cycle time between on type 8 and 12 min depending on type and pressure. This ensures full cleaning. For extremely difficult applications the cleaning time might have to be extend.



    Application:

    DG20 rotary jet heads are suitable for medium to large tanks, such as Dairy , Food, Pharmaceutical, Beer, Chemical, Fuel ethanol, industrial fermentation industries and many others.

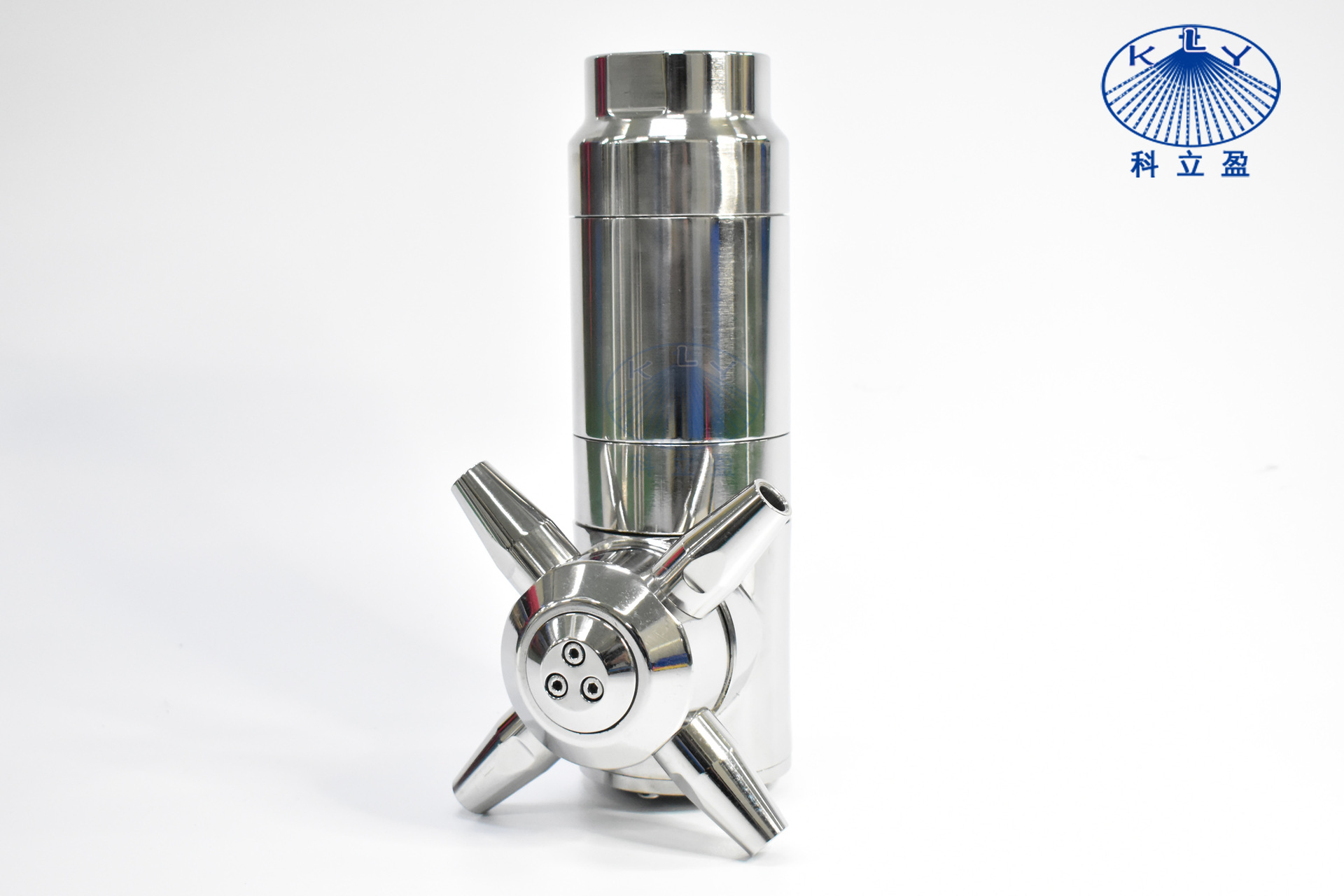

    Product Photos:

    DG20 3D tank washing rotating jet nozzle

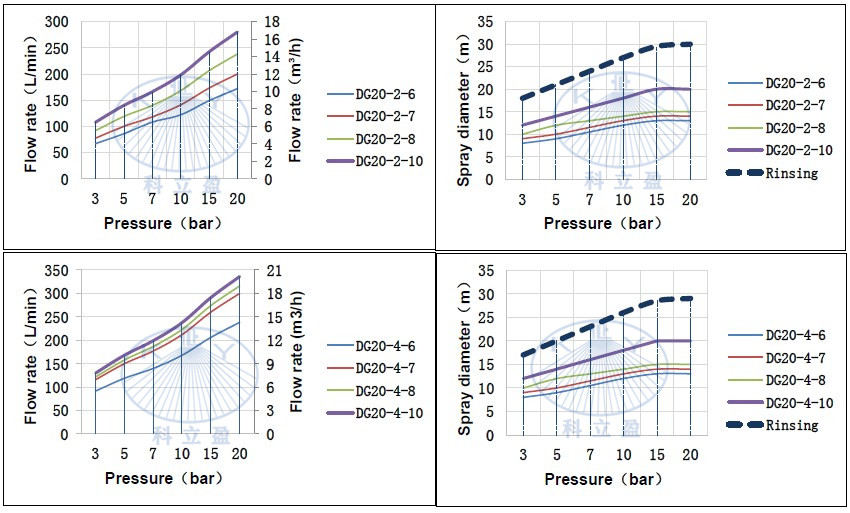

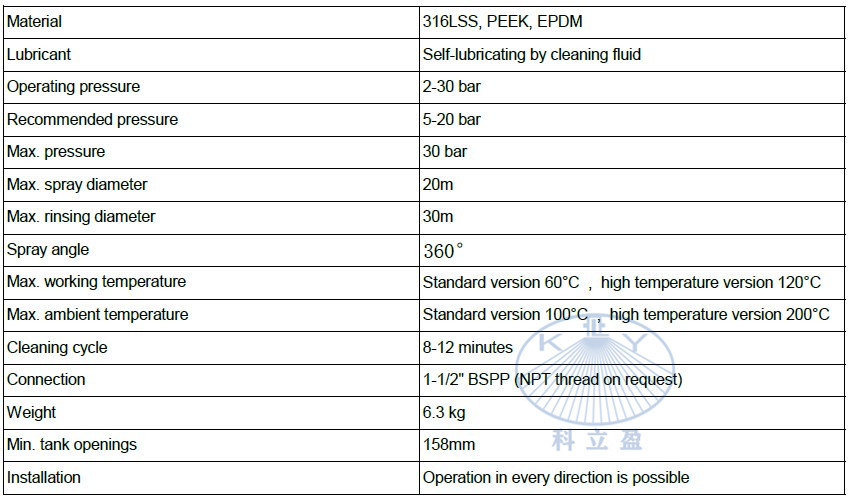

    Performance data:

    DG20 3D tank washing rotating jet nozzle

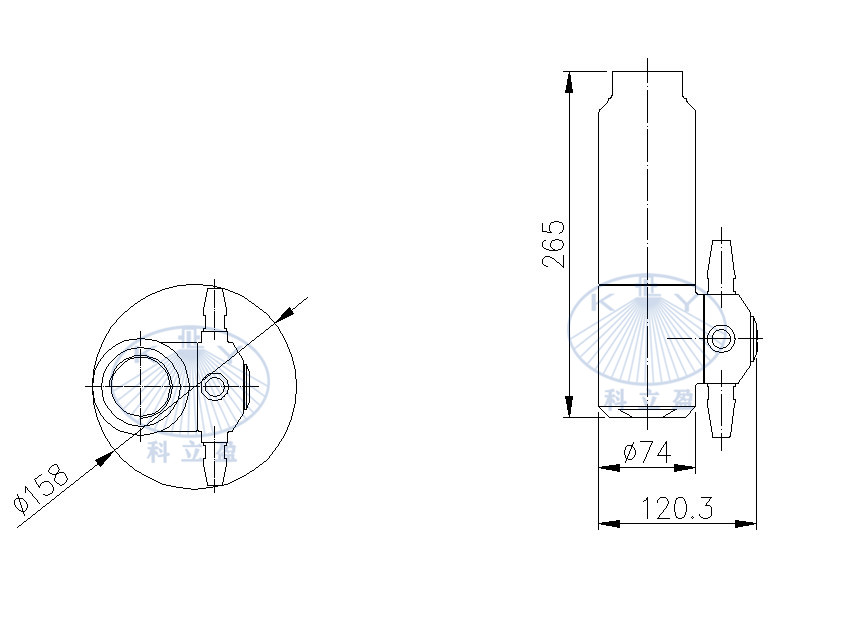

    Dimensions of DG20 tank cleaning machine:

    automatic water tank cleaning machine

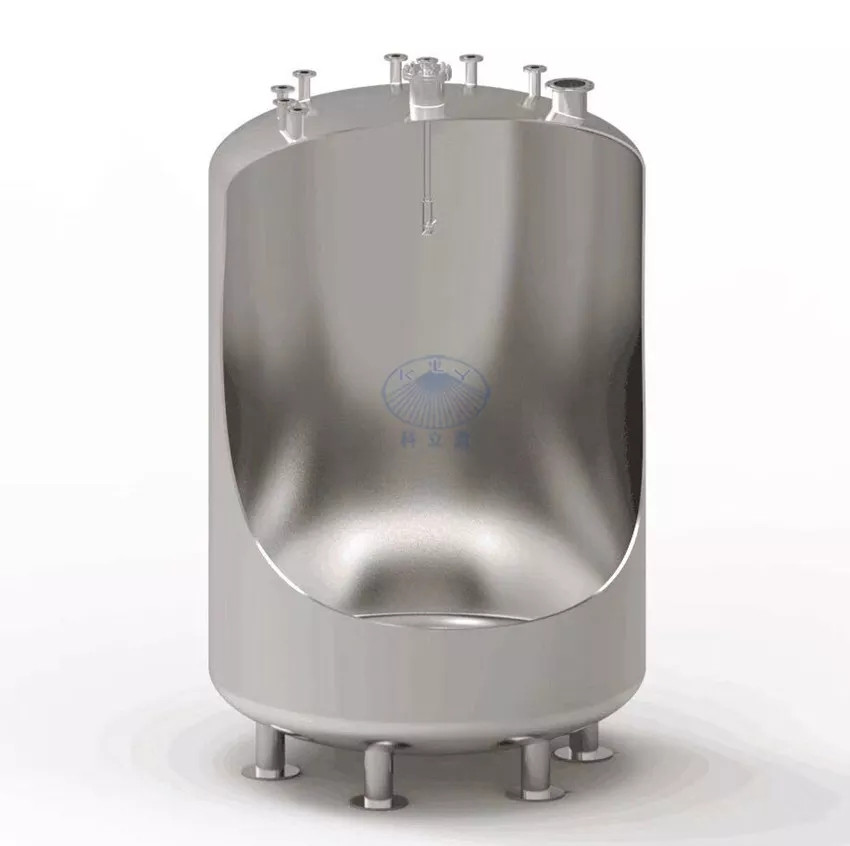

    Cleaning process:

    DG20 3D tank washing rotating jet nozzle

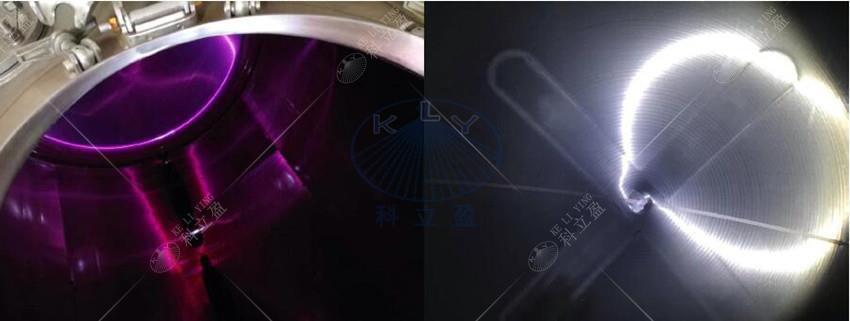

    Cleaning effect:

    KC5 high impact rotating tank cleaning nozzle

    KC5 high impact rotating tank cleaning nozzle

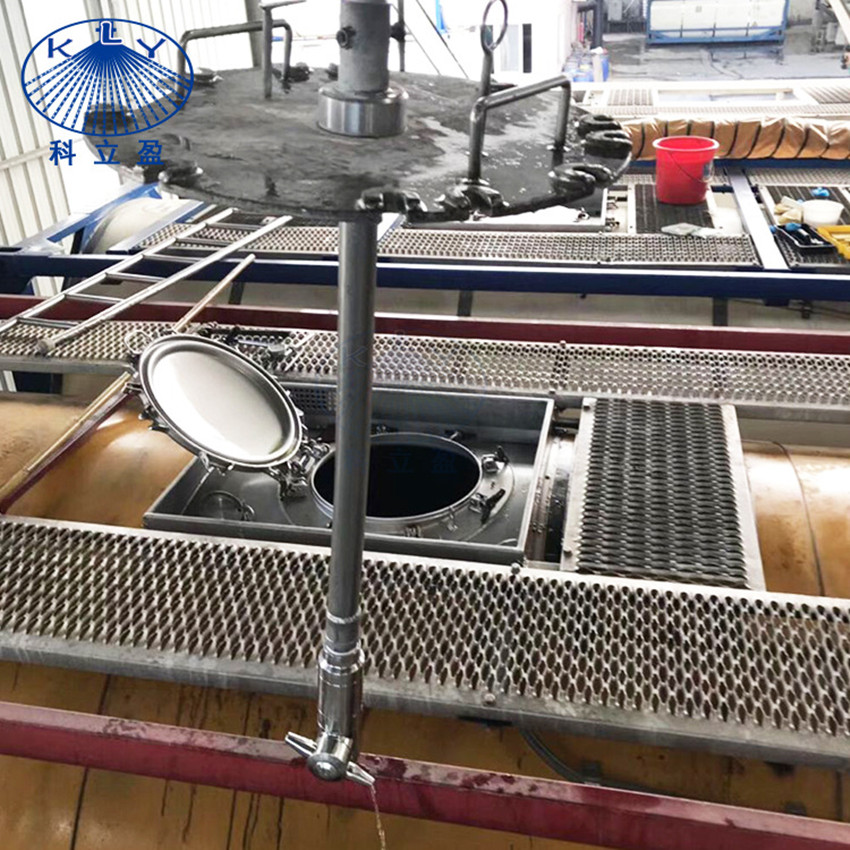

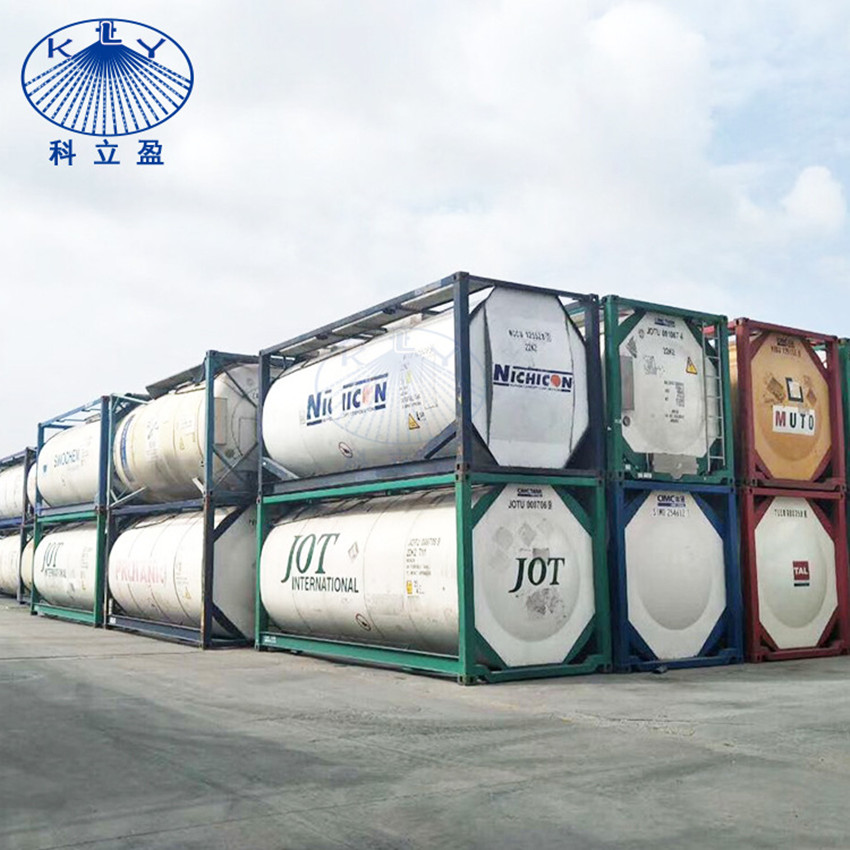

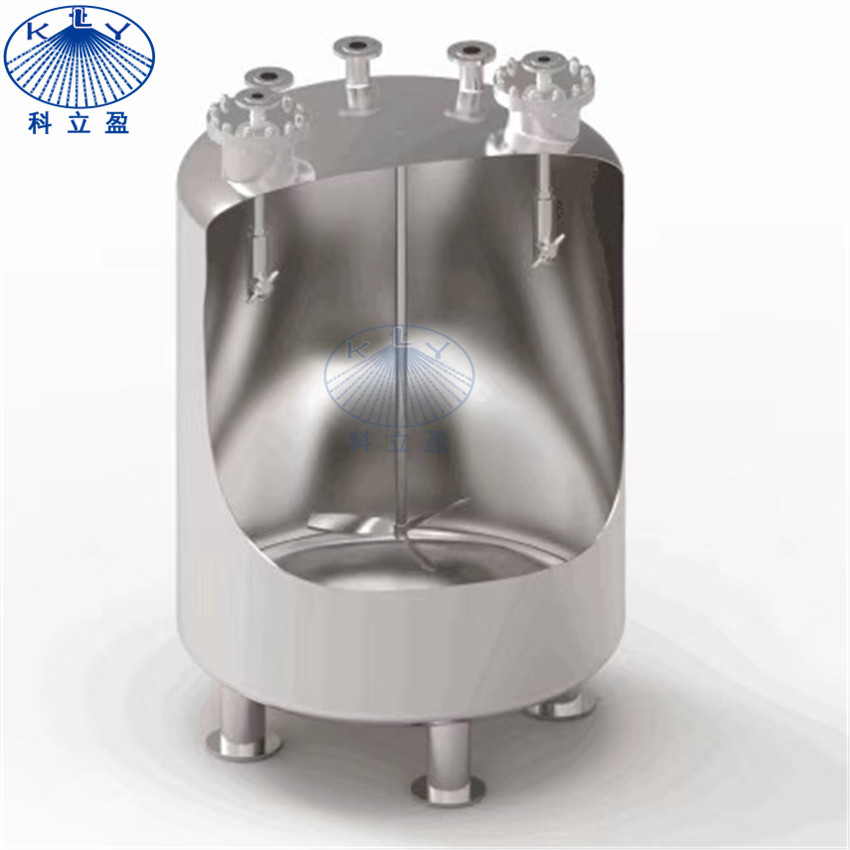

    Application of DG20 3D rotary tank washing nozzle:

    DG20 3D tank washing rotating jet nozzleDG20 3D tank washing rotating jet nozzle

     DG20 3D tank washing rotating jet nozzle

    water tank cleaning machine for the largest tanks and most difficult applications,DG20 rotating tank cleaning machine are suitable for medium to large tanks,Selecting water tank cleaning mahine,The size of the tank will dictate strongly which cleaners
