Stainless spray balls, static CIP spray ball

 Tip: click the picture to enlarge.
    Stainless spray balls, static CIP spray ball



    316L stainless steel cleaning ball / stainless steel fixed cleaning ball / spray ball / stainless steel fixed nozzle


    Model tank cleaning spray ball
    Material 304SS, 316LSS on request
    Spray angle 360° or on request
    Connection type thread, slip-on (tube clip),  welding or clamp on request
    Connection size 1/8", 1/2", 3/4'', 1", 1 1/4", 1 1/2", 2"
    Operating pressure 1-3 bar
    Cleaning diameter 1-3m


    Design feature:
    • Popular sprayball design
    • For higher flow rate
    • Corrosion resistant material
    • Available in different sizes
    • 360 degree coverage or 180 degree coverage



    Industries
    Static Spray Balls can be used in hygenic and non-hygenic applications.

    Typical Industries Served:

    • Food
    • Brewing
    • Dairy
    • Pharmaceutical
    • Cosmetic
    • Biotech
    • Chemical
    • Beverage



     Static Spray Balls project a predetermined spray pattern based on the drilling arrangement of the holes within the ball. Typically, rinsing is accomplished by creating the desired coverage and cascading effect required for the relative cleaning task.




    Sanitary static tank spray balls

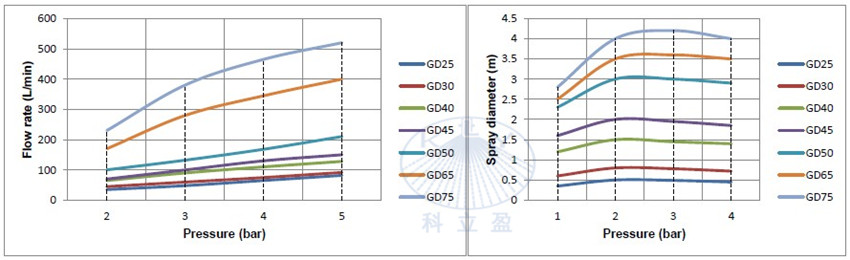

    Performance data:

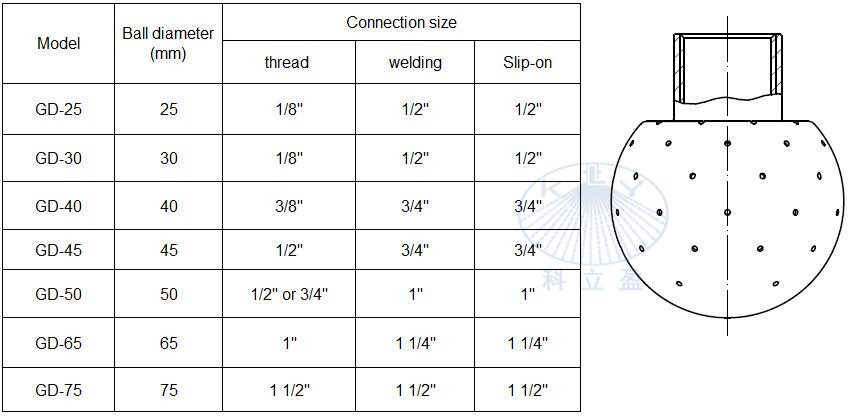

    Dimension:

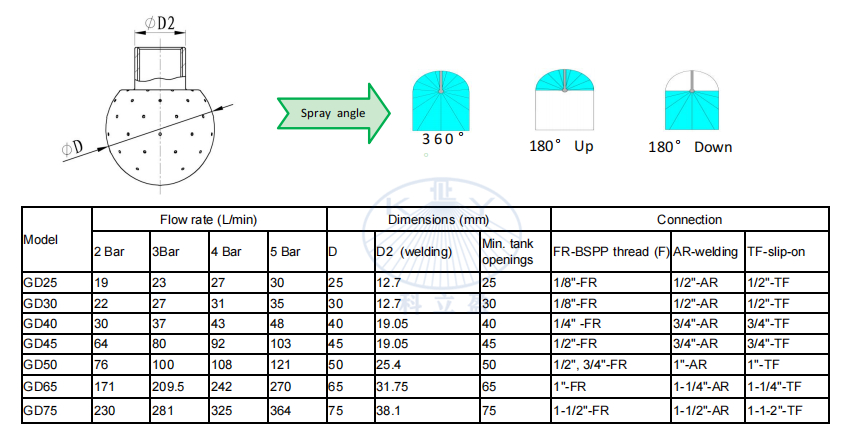

    GD series fixed cleaning ball application:
    The GD Series is a fixed spray ball used in the food and beverage industry to clean tanks. Fixed spray balls are used for lower cleaning tasks. For high flow and steam injection.

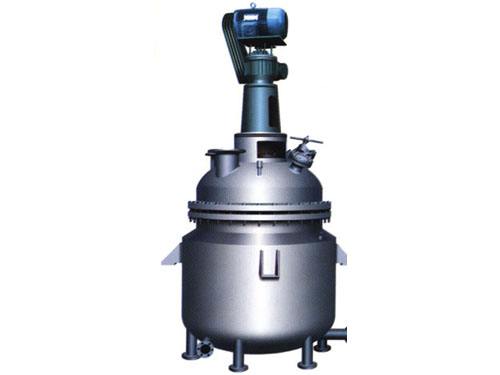

    Food processing equipment with accessories / reaction kettle / tank cleaning nozzle / stainless steel welding / thread / GD series fixed cleaning ball



    316L stainless steel cleaning ball / stainless steel fixed cleaning ball / spray ball / stainless steel fixed nozzle

    Model tank cleaning spray ball
    Material 304SS, 316LSS on request
    Spray angle 360° or on request
    Connection type thread, slip-on (tube clip),  welding or clamp on request
    Connection size 1/8", 1/2", 3/4'', 1", 1 1/4", 1 1/2", 2"
    Operating pressure 1-3 bar
    Cleaning diameter 1-3m
