Stainless steel self rotating tank cleaning nozzles

 Tip: click the picture to enlarge.
    MG5 self rotating 3D Cleaning nozzle

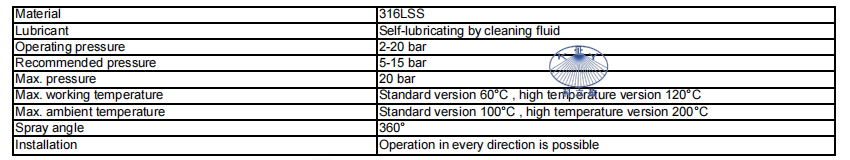

    Model MG5 3D rotary jet head
    Material 316L ss
    Max. tank diameter  5m
    Operating pressure 4-20Bar
    Tempreture range 95°
    Installation Vertically facing downward
    Application

    Cleaning and rinsing of large tanks

    i.e. chemical industry,drink and food industry.



    The MG serires rotary cleaning nozzle provides complete tank cleaning that is both thorough and cost-effective. It is fluid driven with external gears and was specifically designed to fit a 3″ (76.2 mm) opening, for cleaning of totes, IBCs and other limited access vessels.

    This model also incorporates a set of bevel gears which provide a complete 360-degree indexing pattern every 45 revolutions and has an effective cleaning diameter of 30 ft (9.2 m).

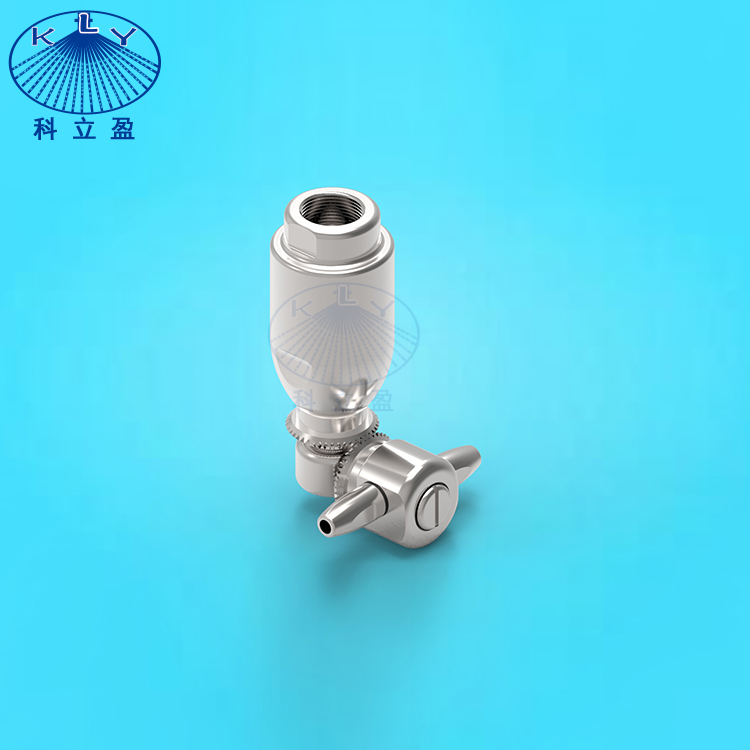

    Product Photos:

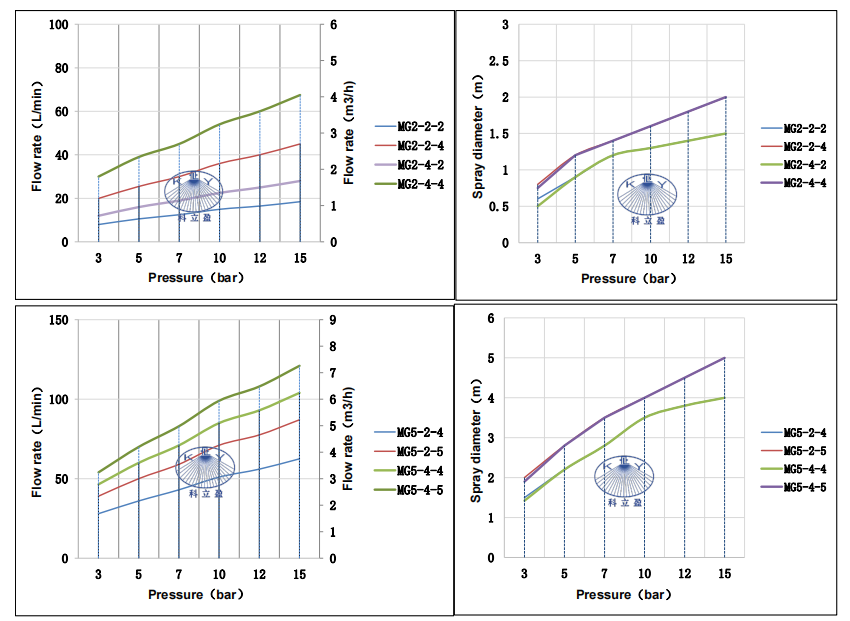

    Performance data:

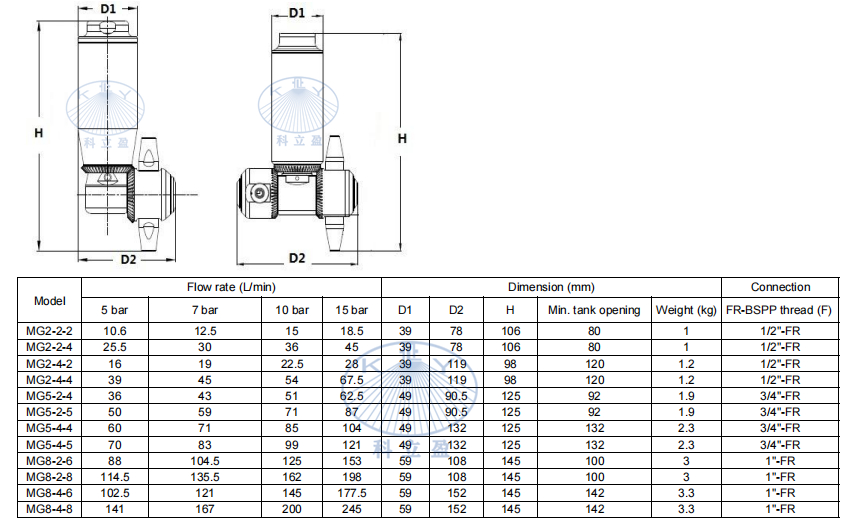

    Dimensions of MG series rotary jet head:















    Application:
    MG8 rotating tank cleaning nozzles are suitable for medium to large tanks, such as Dairy , Food, Pharmaceutical, Beer, Chemical, industrial fermentation industries and many others.







    The value brought by Keliying MG serires rotary cleaning nozzle manufacturers:

        Far away from the industry's leading cleaning technology, strong product support, more than ten years of experience to provide customers with tank cleaning solutions, Keliying washing tank customers will benefit:
    ☆100% satisfactory cleaning effect
    ☆ Reduce personnel entering confined spaces
    ☆Safer working environment,
    ☆ reduce cleaning time by 80%
    ☆ Reduce consumption of energy, water and chemicals
    ☆Save human resources
    ☆ Improve the quality of products and production processes, increase production capacity

    low flow tank cleaning heads
