High efficient gear drive tank cleaning nozzle

 Tip: click the picture to enlarge.

    KZH30 high efficient gear drive tank cleaning nozzle
    The new rotary spray head works very powerfully and efficiently based on the controlled rotation. Compared to conventional rotating spray nozzles,cleaning cycle time can be reduced considerably,This saves cleaning fluid, energy costs and time.





    Model KZH30 tank cleaning nozzle
    Material 316L ss
    Bearing Slide bearing
    Operating pressure 3-7 bar
    Max. pressure 20 bar
    Max. tank diameter 3m
    Diameter 49mm
    Filtration line strainer with a mesh size of 80 or 100 mesh
    Application hign efficient cleaning of tanks, equipment, etc
    Installation Operation in every direction is possible









    Advantages

    The liquid flow powers the head by an internal gear. Either a gear reduction or a hydraulic brake is used to control the rotation. Hence the produced droplets are bigger and hit the tank wall with higher velocity. This rotary spray head keeps the speed of the head within its optimal range across a wider span of pressures, and the nozzles develops more powerful spray.





      • Controlled rotation
      • Pressure range up to 20 bar
      • Driven and lubricated by the cleaning fluid
      • Reliable slide bearing
      • Low-wear design
      • High impact flat jet, 360 degree spray, thoroughly clean
      •  Internal gear reduction make it work more stable



    Applications

    Efficient cleaning and rinsing of tanks or containers, for example

    Chemical industry

    Food industry

    Beverage industry

    Pharmaceutical industry

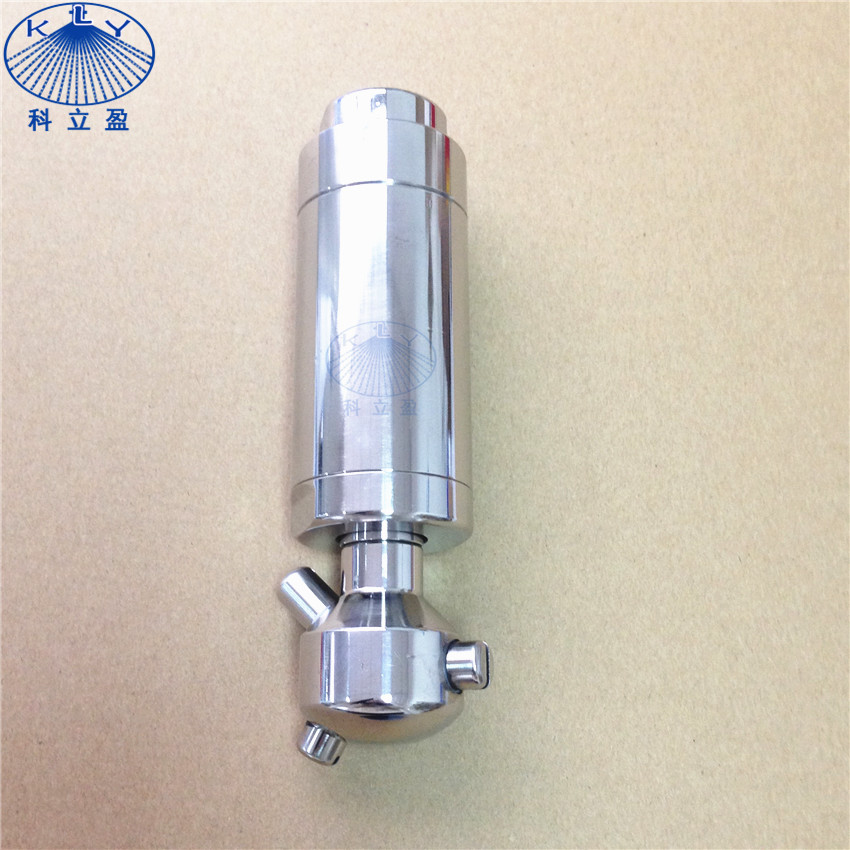

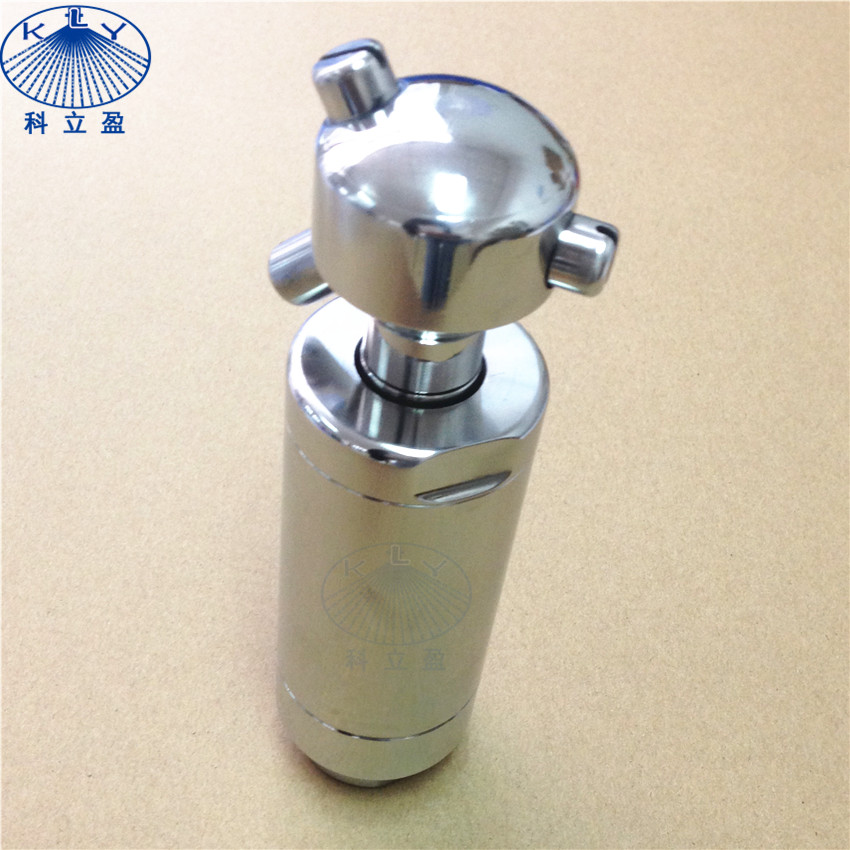

    KZH30 High impact cleaning ball washer product picture

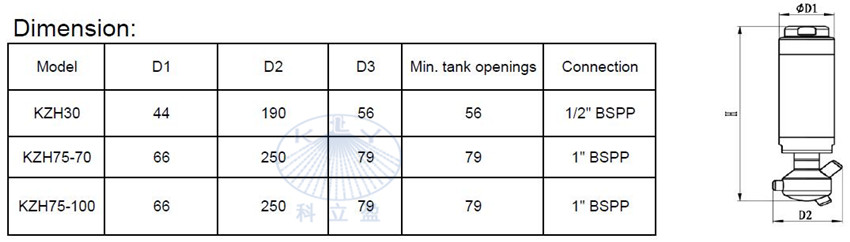

    Dimensions of KZ75 360 degree spray cleaning nozzle:

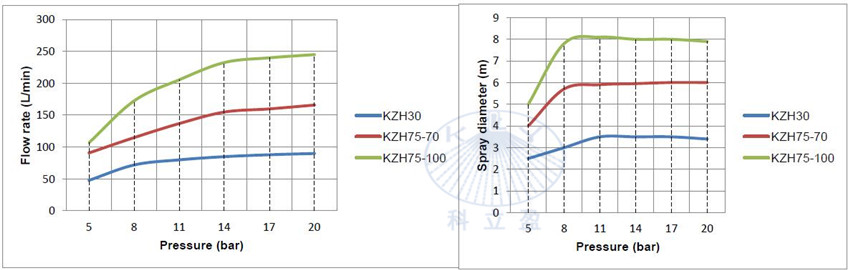

    tank cleaning nozzle Performance Data:

    360 Degree Rotary Spray Ball Cleaning Tank Nozzle,Stainless Steel Rotating Nozzle Ball,Internal Thread Rotary Cleaning Ball


    Dimensions of KZH75 360 degree spray cleaning nozzle:

    360 Degree Rotary Spray Ball Cleaning Tank Nozzle,Stainless Steel Rotating Nozzle Ball,Internal Thread Rotary Cleaning Ball

     360 Degree Rotary Spray Ball Cleaning Tank Nozzle,Stainless Steel Rotating Nozzle Ball,Internal Thread Rotary Cleaning Ball





    Comparison of the effect before and after using cleaning nozzles for Keli Ying tank tank cleaning:

    KC5 high impact rotating tank cleaning nozzle

    KC5 high impact rotating tank cleaning nozzle



    Application:

    360 Degree Rotary Spray Ball Cleaning Tank Nozzle,Stainless Steel Rotating Nozzle Ball,Internal Thread Rotary Cleaning Ball

     1            undefined             undefined

     strong tank cleaning machine          tank clean nozzles                     telescopic cleaner
    undefined

    Turbine structure cleaner


     undefined   undefined         undefined         undefined

     360° spray ball          360° rotating spray balls           PTFE cleaning ball        Fixed spray ball








    Company information

    Guangzhou Cleaning-spray Equipment Co., Ltd is one of leading company in China specialized in manufacturing and selling tank cleaning nozzles, industrial spray nozzles and other spray product which are widely used in Pharmaceutical, Chemical, Food and Beverage and other industry. We can provide you with optimal solution according to your requirement.

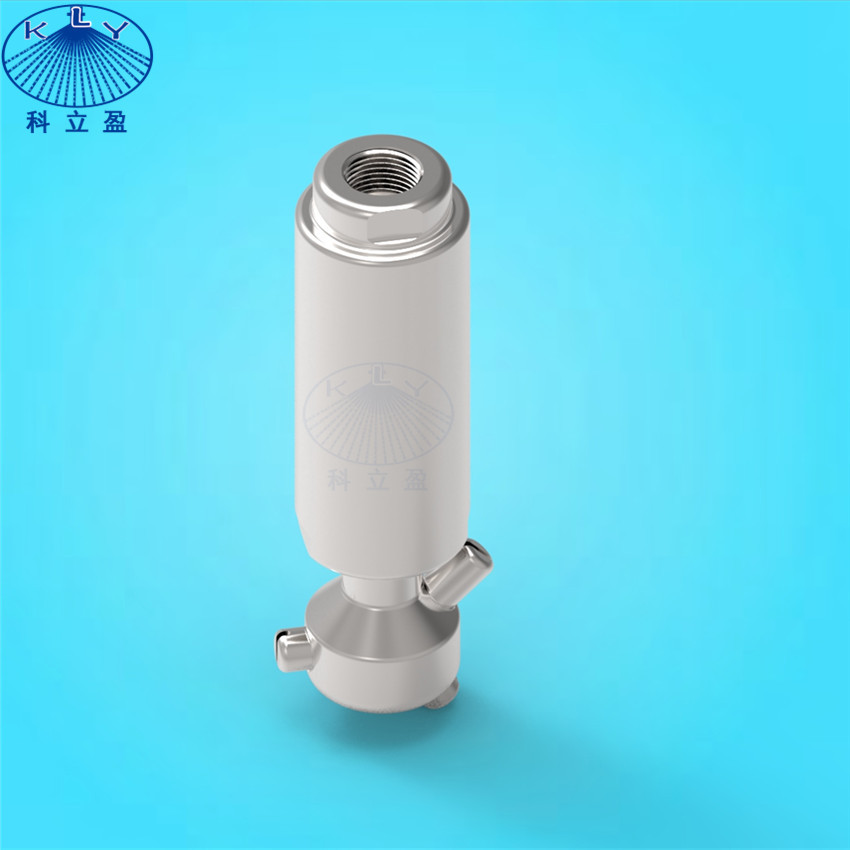

    3D rotary jet head high efficient gear drive tank cleaning nozzle



    Our Services

    1. Reply your inquiry within 24 hours.
    4. Best after-sale service. We accept return if the products is not right specification or damaged when arrived.
    5. Payment Term:T/T , Western Union, Secure payment
    6. Delivery Term: China Post/ TOLL/ DHL/ UPS/FEDEX Express; Air/ Sea Transportation
    7. All products can be customised.


      • Controlled rotation
      • Pressure range up to 20 bar
      • Driven and lubricated by the cleaning fluid
      • Reliable slide bearing
      • Low-wear design
      • High impact flat jet, 360 degree spray, thoroughly clean
      •  Internal gear reduction make it work more stable
      •
