DG15-4 3D tank cleaning meachine,rotating tank cleaning nozzle

 Tip: click the picture to enlarge.
DG15 tank cleaning nozzle
  • Product introduction
  • Inquiry now

    The "3D Nozzle" is a self-rotating nozzle unit used for cleaning polymerization tanks, reactors, spray dryers, and various other tanks.
    It is also  ideal for Marine & Industrial Applications

    High impact 3D rotary tank washer,


    Model number:  DG15-4 3D tank cleaning nozzle





    Working Principle:


    Impeller is driven by cleaning fluid and drives internal reduction mechanism. Gear mechanism operates according to set track to realize the revolution and the rotation, thereby achieving 360° thorough cleaning.



    Features & Benefits:



     ● Optimized structural design results in a water jet that produces greater impact

     ● Excellent sealing design, less than 3% leakage, thus saves cleaning fluid

     ● Independent gearbox design protects gear from damage and can work in poor water quality

     ● Overall optimized design,able to insert in small openings of 98MM
     ● Adopt high hardness and wear resistant materials, long service life

     ● Gearbox upper shaft is made of 316L stainless steel with a tungsten steel-sprayed or other protective coating for increased wear resitance
     ● Lower transmission rod is made of duplex steel for added durability

    Technical Data:

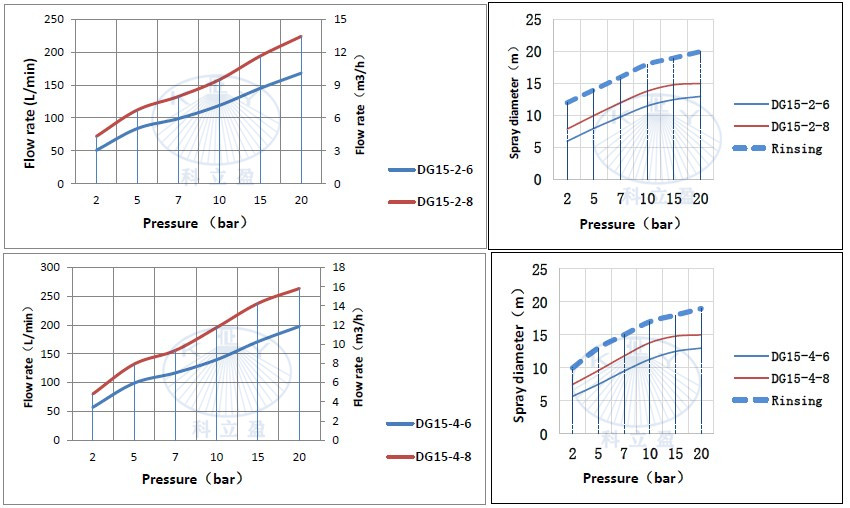

    Performance curve:






    Dimensions:



    Cleaning Effection ( Before & After ):








    Application:

     KLY DG15 rotary tank washer is suitable for 3D cleaning of medium to large sized tanks,vessel or machines. It is commonly used in beer, petroleum, beverage,fuel ethanol, chemical, industrial fermentation,marine and where a high cleaning performance is required.

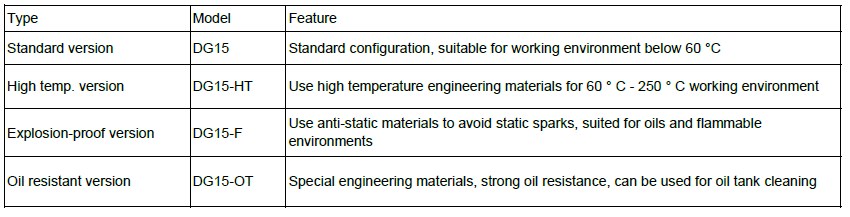

    Version:
