Rotary tank cleaning equipment,360 rotating jet head

 Tip: click the picture to enlarge.

    DG5 3D rotary 360 spray jet head


    Model DG5 3D rotary 360 spray jet head
    Material 316L ss
    Max. tank diameter  5m
    Operating pressure 5-20Bar
    Tempreture range 95°
    Installation Vertically facing downward
    Application

    Cleaning and rinsing of large tanks

    i.e. chemical industry,drink and food industry.




    360 rotary tank cleaning equipment Design feature:

    • Very high cleaning performance already at low pressure
    • Driven and lubricated by the cleaning fluid
    • Systematically cleans the entire tank interior(360°)
    • Robust, low-maintenance stainless steel construction
    • 100% thoroughly clean,every time
    • Optimized structural design makes water jet with greater impact
    • Excellent seal design, only 3% leakage of water
    • Designed with a separate gearbox,uneasy to get clogging

    Programmed rotation machines:

    The cleaning fluid drives via the turbine an internal gear reducer that keeps the sprayer turning in two planes.
    In the course of spraying cycle, the jets sweep the entire inside surface of the tank according to the preprogrammed, model-specific pattern.
    This takes a certain amount of time, but these models generate the highest jet pressures (= force of impact) and are therefore ideal for very large tanks and the toughest of cleaning tasks.



    The standard machine configuration uses two or four nozzles to blast the tank walls and rinse all surfaces. In operation, the unit has to run for the cycle time between on type 8 and 12 min depending on type and pressure. This ensures full cleaning. For extremely difficult applications the cleaning time might have to be extend.



    360 tank cleaning nozzle Application:



    DG5 rotating tank cleaning nozzle are suitable for small tanks, such as fuel ethanol, beer, chemical, industrial fermentation industry and the need for high impact cleaning occasions.

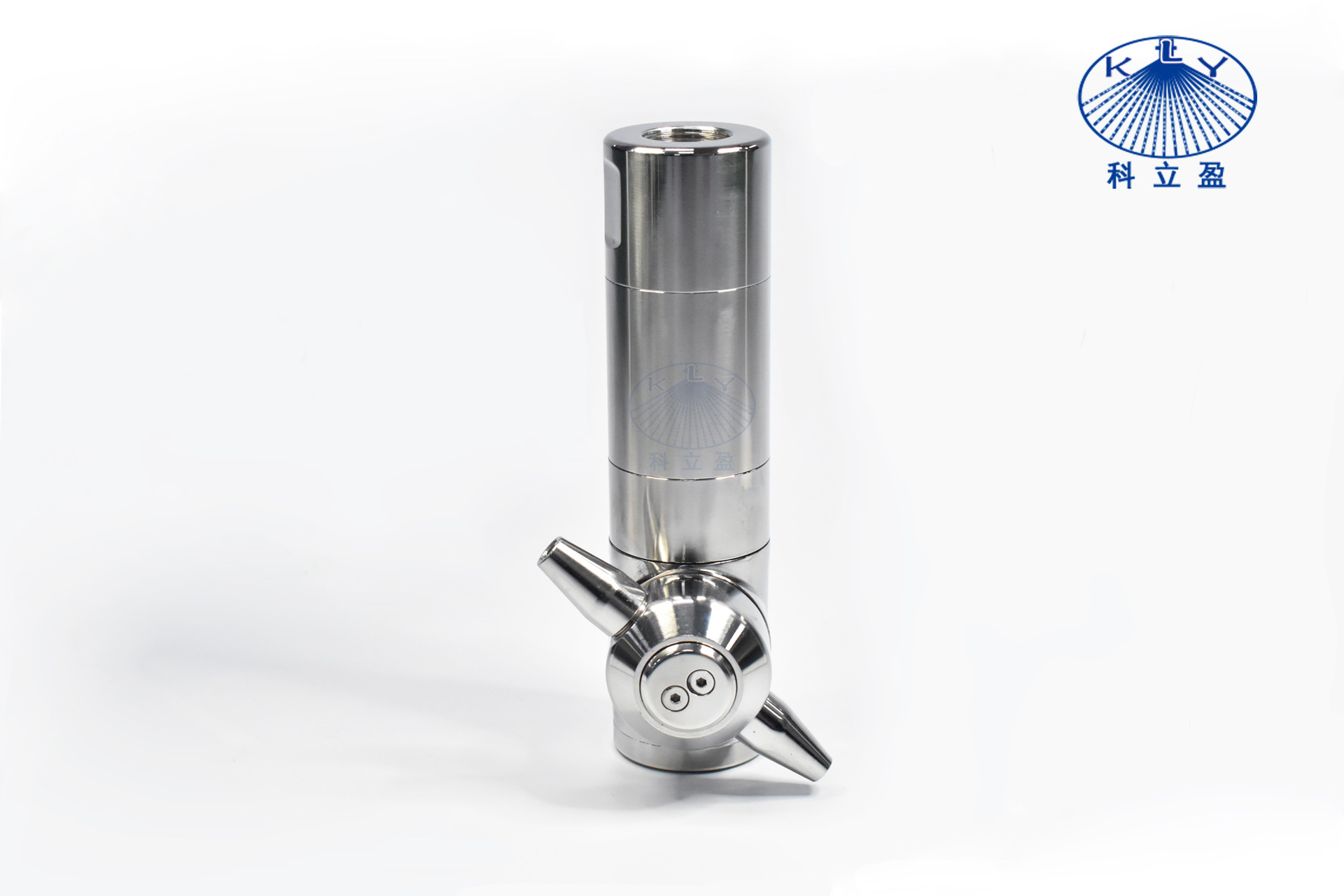

    3D rotary tank cleaning equipment Product Photos:

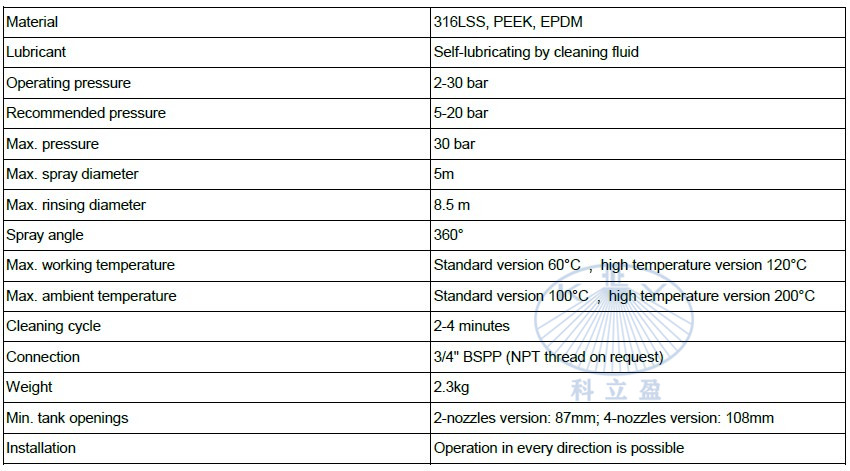

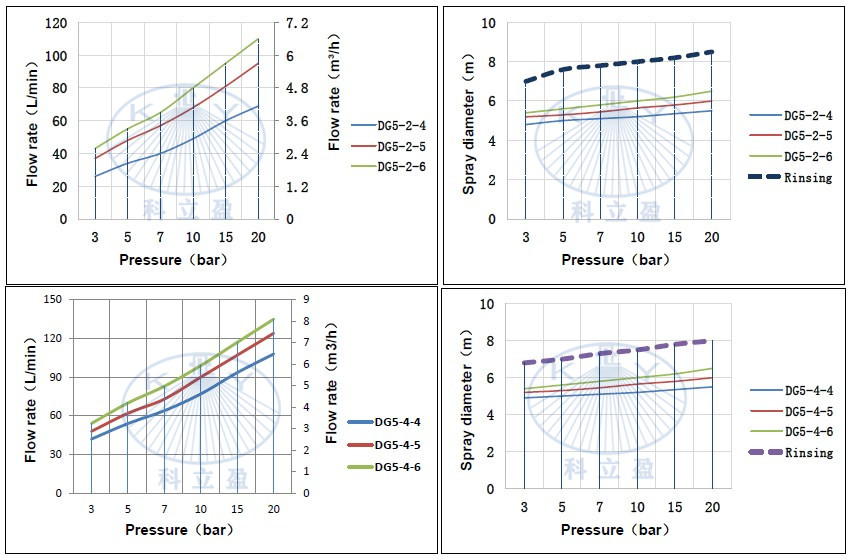

    Performance data:

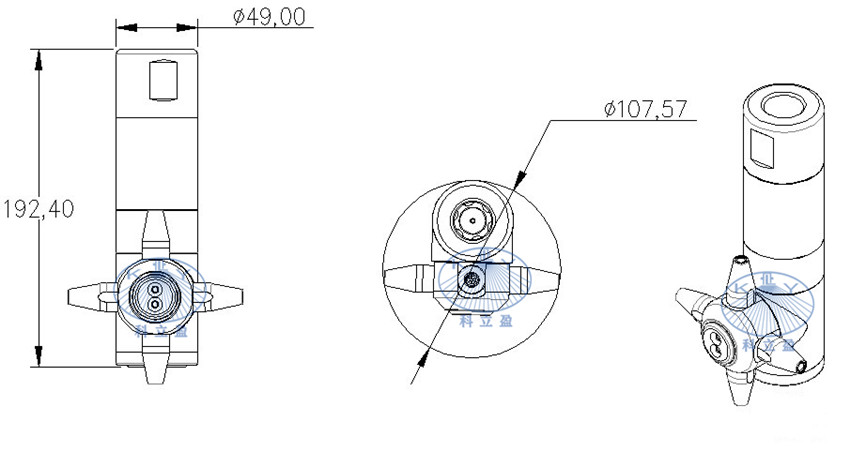

    Dimensions of DG5 tank cleaning nozzle:

    360 spray nozzles

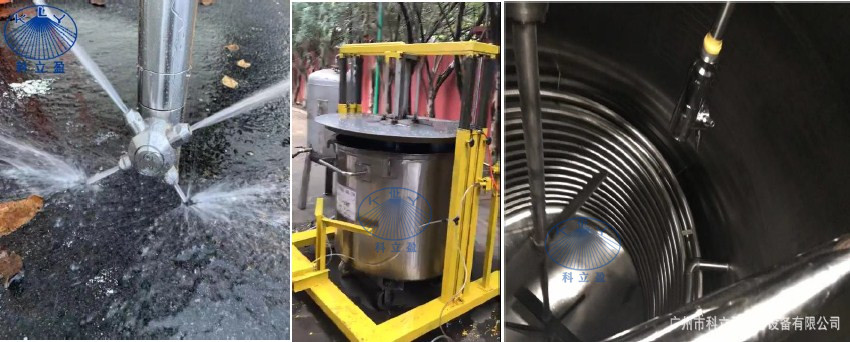

    360 spray nozzles cleaning process:

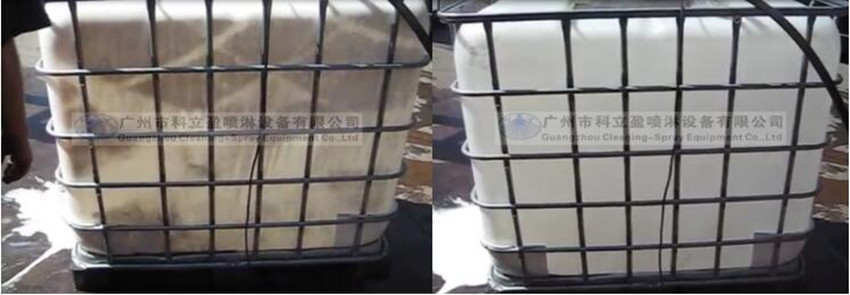

    3D rotary jet head for cleaning of IBC totes

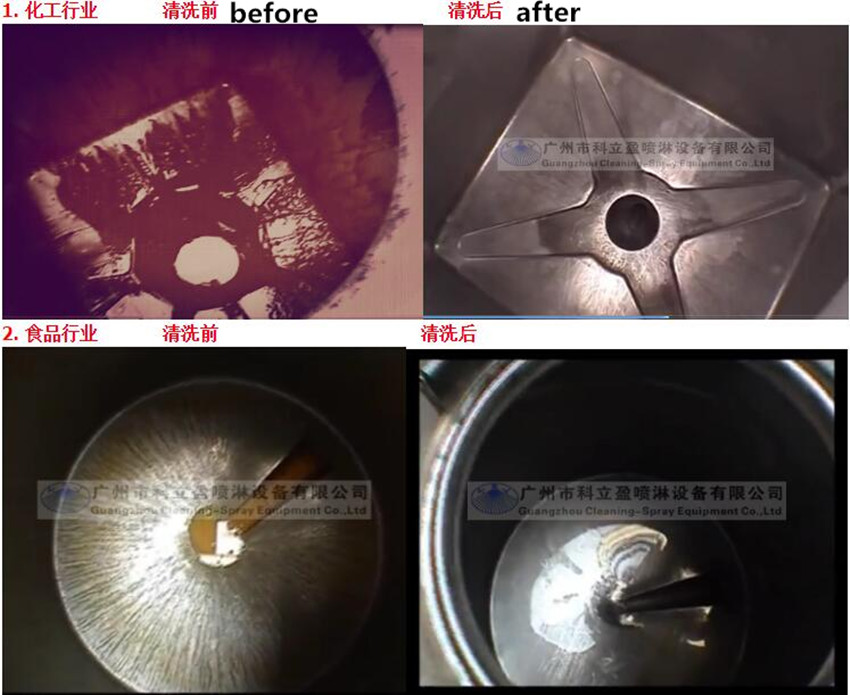

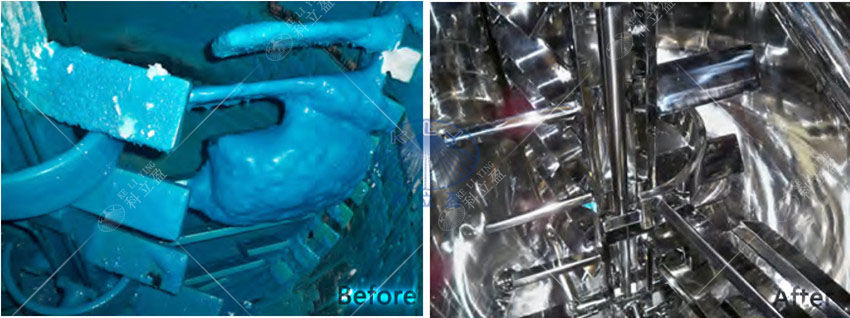

    Riboflavin test cleaning fermentation tank before and after comparison:










    Application of DG20 3D rotary tank cleaning nozzle:

    Powerful 3D rotary jet head for cleaning of fluid bed dryersPowerful 3D rotary jet head for cleaning of fluid bed dryers

     3D rotary jet head for cleaning of IBC totes

    tank clean machine
    Chian GuangZhou Keliying tank cleaning machines manufacturer's processing, manufacturing capacity, enterprise scale and supply guarantee capacity

    Keliying has more than 30 CNC processing equipment and processing centers, as well as milling machines, drilling machines and other supporting equipment. Our company has dozens of fixed cooperative equipment manufacturers and thousands of customers, providing products with high quality and quantity throughout the year.

    360 spray nozzle,Small and medium tank rotating cleaning 3D washing machine High impact rotating cleaning DG5 series small three-dimensional washing machine
    Gas station underground tank cleaning, ethanol industry fermenter cleaning, ground product tank cleaning
    rotary tank cleaning equipmen
