PTFE teflon rotary tank cleaning nozzle

 Tip: click the picture to enlarge.
  • Product introduction
  • Inquiry now
    PTFE tank cleaning nozzle
    Model NO.: DN series




    Working Principle:


       Using the force and reaction force of cleaning liquid to generate self-rotation.

       Transmission mechanism runs according to the set trajectory to form a 360-degree spray pattern to achieve a complete tank cover.



    Features & Benefits:
    Using the reaction force generated by the cleaning fluid to make the ball head rotate, spray ball adopts solid stream nozzles and scientifically arranged, so as to achieve 360° coverage cleaning, with concentrated impact force, and jet flow with vortex function.The reactionary force of the cleaning liquid rotates the Model Rotary teflon spray nozzle. When combining the nozzle's  multiple solid stream orifice configuration, and this rotating motion, a solid stream spray for quick and effective automated cleaning of tanks,vessels,containers,and equipment is produced.


    Since no external power source is required to rotate the nozzles. They are especially well suited for clean-in-place systems. The teflon spray nozzle offer exceptional performance in low-pressure cleaning and rising applications.

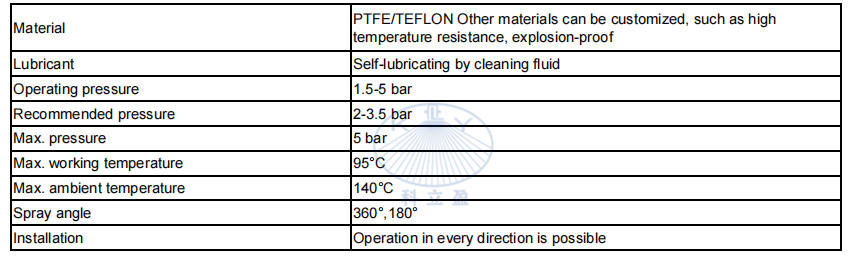

    Technical Data:

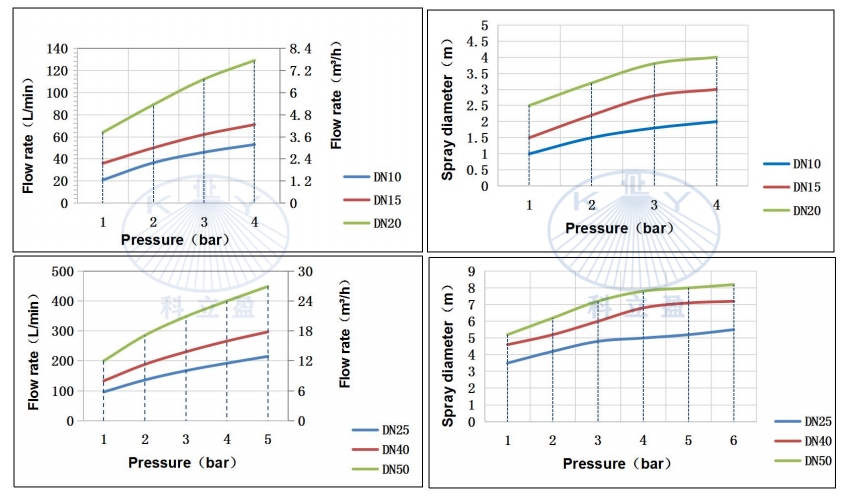

    Performance:

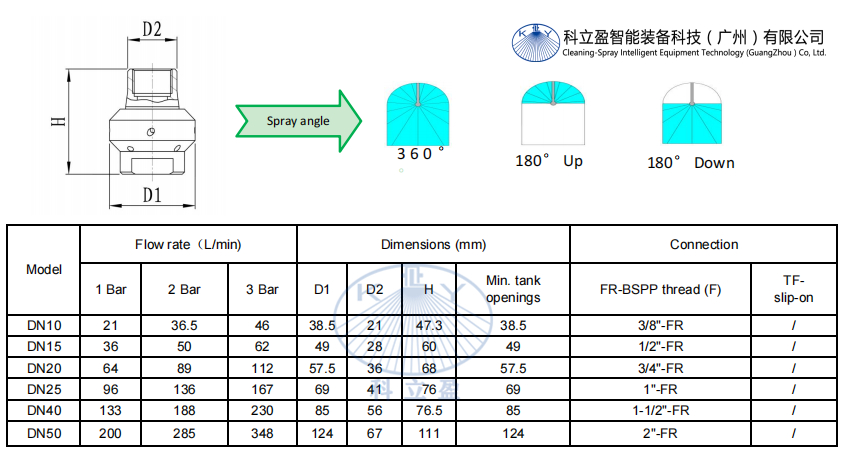

    Dimensions:







    Application:
    DN series teflon rotary spray balls are driven by cleaning fluid. They are all made of tetrafluoro PTFE, which has excellent corrosion resistance.
    DN series teflon rotary spray ball adopts slide bearings and is highly chemical resistant, which makes it suitable for all industrial cleaning applications, including enameled storage tanks, reactors, vessels, glass fiber reinforced plastics and other vessels with a capacity between 0.5-100m³.



    1-4.jpgPTFE tank cleaning nozzle



    The reaction force generated by the cleaning liquid flow causes the nozzle to rotate, and the cleaning ball adopts a column type jet nozzle, which has the characteristics of concentrated impact force and jet rinsing function

Last：Portable SG2 vessel tank cleaning nozzle Last：CIP rotary spray ball, tank cleaning spray balls

Recommended 推荐内容

Related products 产品

Contact Information
TEL: +86 02036269566
Fax: +86-020-36269969
Mob: +86 13725126489
E-mail: fiona@cleanspraying.com
E-mail:
E-mail:
Address: No.5,Nanling Industrial Zone, Longgui, Taihe Street,Taihe Town, Baiyun District, Guangzhou, 510445 Guangdong, China

Automated washing vs manual washing

●Improvement of the washing process: less time, less consumption and better and more reliable quality. The washing procedures can be inserted into the company quality system.
●safety of operators at the workplace.
●Need to reduce unskilled labor(KELIYING automatic washing machine : 2 to 5 minutes).
●Economic need to reduce the waste produced.
●Economic need for the reduction of the washing fluid in purchase.
●Increased washing quality.
●Increased control and measurement of production levels.

KELIYING vs other washing machines

●Highest quality Tank cleaning nozzles:KELIYING offers tank cleaning nozzles with 5 to1500 bar pressure for container or tank volume of 0.1 cubic to 10000 cubic meters.
●Customized Tank Cleaning and tank washing equipment products:We offer a total solution by providing onsite surveys, analysis, design, and engineering support for tank cleaning projects.
●Washing tests and consulting:Suitable machine configuration (type of pump and recommended options) to optimize consumption and achieve the required production quota.
●Service:"On-line" support and remote assistance also thanks to step-by-step video tutorials that allow the customer to perform maintenance activities.
