Portable SG2 high impact rotary tank cleaning nozzle

 Tip: click the picture to enlarge.
    SG2 Portable  high impact rotary tank cleaning nozzle


    Model SG2 tank cleaning nozzle
    Material 316L ss
    Bearing Slide bearing
    Operating pressure 3-7 bar
    Max. pressure 20 bar
    Max. tank diameter 2m
    Filtration line strainer with a mesh size of 80 or 100 mesh
    Application hign efficient cleaning of tanks, equipment, etc
    Installation Operation in every direction is possible




    SG2 high impact rotary tank cleaning nozzle Design feature:

    Driven by cleaning fluid, where the ball of the unit rotates at a slow speed, ensuring effective impingement of the cleaning solution on
    the interior walls. SG tank washing nozzle offer improved cleaning over traditional static spray balls.
    Precision Layout of hole ensure thoroughly cleaning.
    Reliable slide bearing, low wear design




    Advantages

    • Controlled rotation
    • Pressure range up to 20 bar
    • Driven and lubricated by the cleaning fluid
    • Reliable slide bearing
    • Low-wear design
    • All materials are FDA-conform





    SG2 high impact rotary tank cleaning nozzle application:
    KLY rotary tank washing nozzle are well suited for small to medium sized tanks, such as dairy , food, pharmaceutical, beer, chemical,
    industrial fermentation industry and the need for high impact cleaning occasions.

    •  Soup kettles
    •  Batch processing vessels
    •  Brew kettles
    •  Fluid bed dryers
    •  Ink and paint mixing vats
    •  Yeast propagation tanks
    • Storage tanks
    • Commercial ovens
    • Spray dryers



    Product photo:

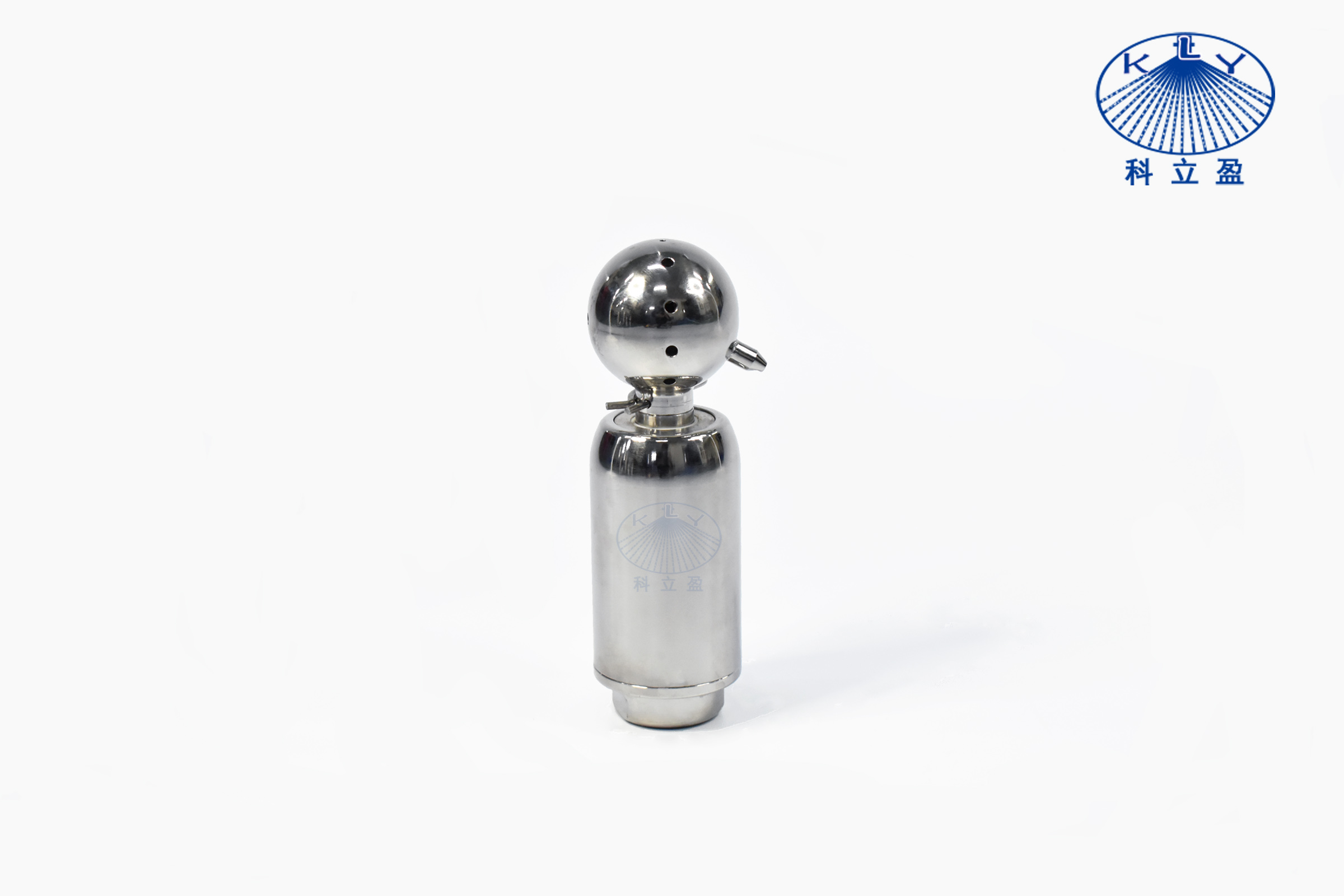

    SG2 high impact rotary tank cleaning nozzle








    Dimensions of tank washing nozzle:




    Application:

    360 degree tank cleaning machine manufacturer
    Cleaning equipment for small and medium-sized diesel tank,360 degree tank cleaning machine
