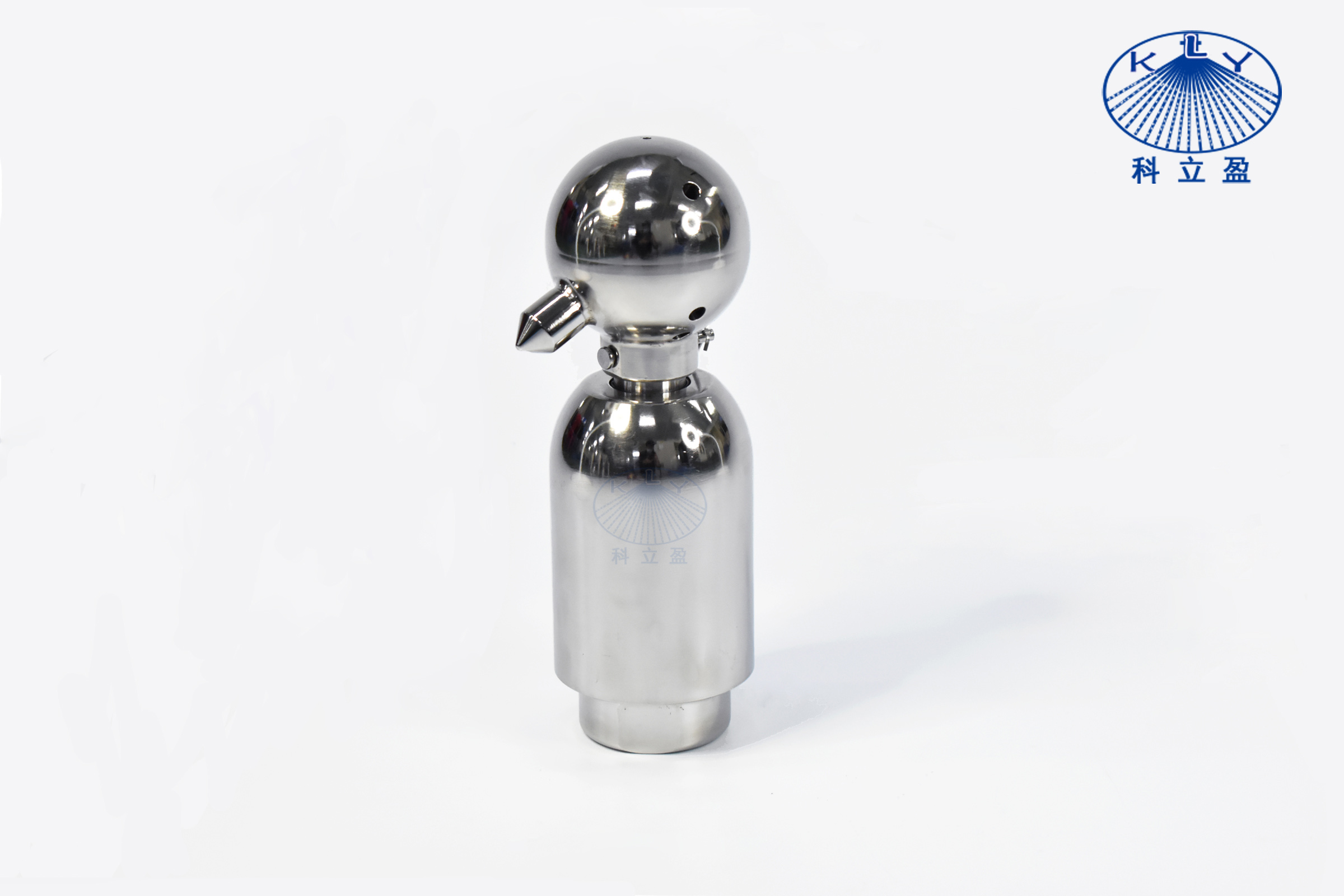

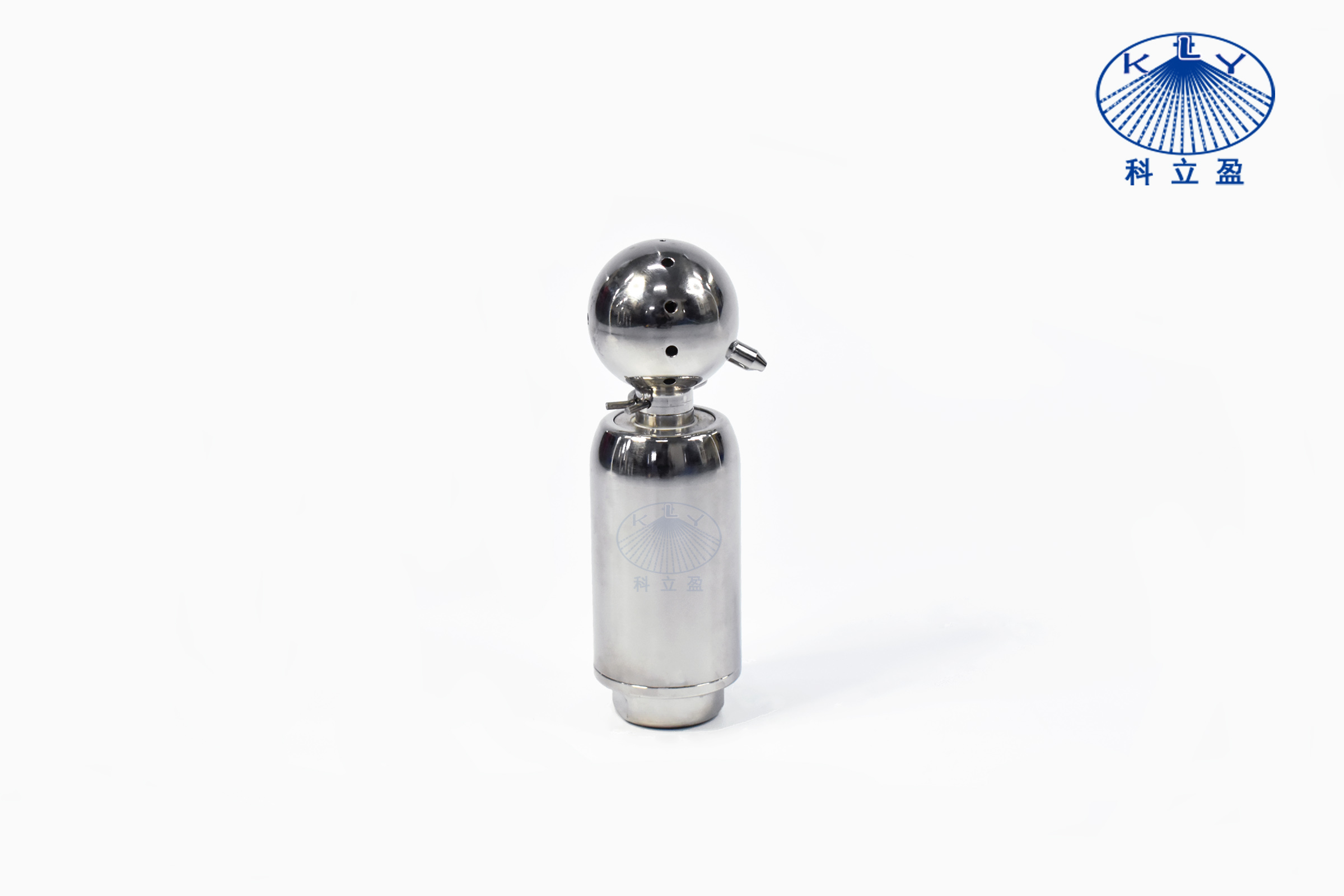

    High impact rotary tank cleaning nozzle
    Model NO.: SG4






    Working Principle:
    Impeller is driven by cleaning fluid and drives internal reduction mechanism.
    The speed is constant to obtain greater impact when increasing pressure.




    Features & Benefits:
    Cleaning fluid is sprayed out as a water column at the nozzle, and the impact force is greater, with precise layout of ball of self -rotating tank cleaning head, to achieve 360° full coverage cleaning.Built-in deceleration structure, impeller drive, stable operation, constant speed, it takes 1-3 seconds for the ball head to rotate one circle
    Operating pressure of 3-15bar

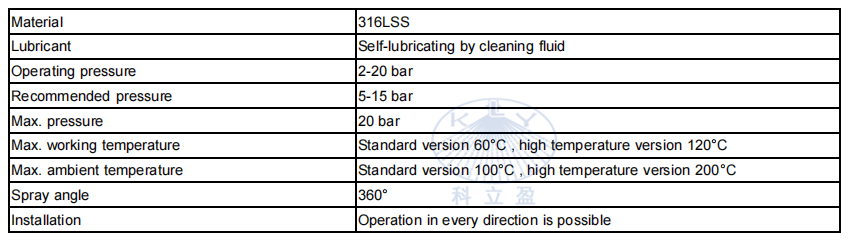

    Technical Data:

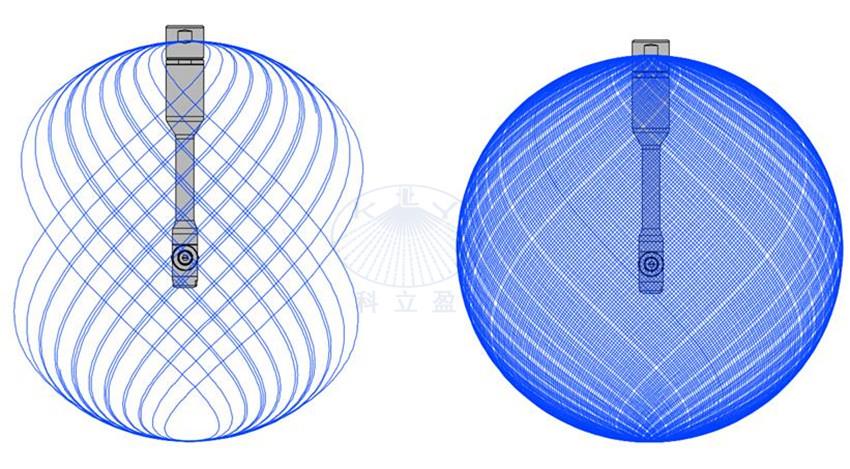

    Performance Curve:


           SG4 High efficient tank washing nozzle for small to medium sized tanks

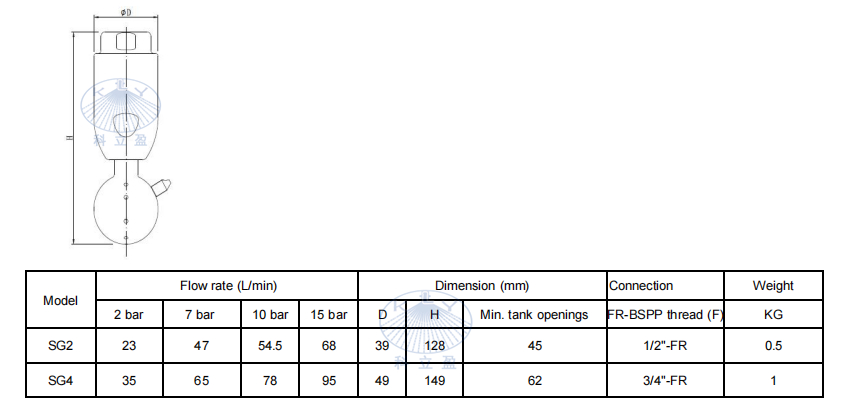

    Dimensions:



    Cleaning Effection ( Before & After ):

       KC5 high impact rotating tank cleaning nozzle
        KC5 high impact rotating tank cleaning nozzle



    Application:

    SG series rotary tank washer is suitable for small to medium sized tanks, such as dairy, food, pharmaceutical, beer, chemical, industrial fermentation industries and occasions that require high impact cleaning. Especially suitable for occasions with certain viscosity, such as syrup, powder, etc.

    •  Soup kettles
    •  Yeast propagation tanks
    •  Batch processing vessels
    •  Fluid bed dryers
    •  Ink and paint mixing vats
    •  Brew kettles
    • Storage tanks
    • Spray dryers
    • Commercial ovens


    SG4 High efficient tank washing nozzle for small to medium sized tanks3D rotary jet head for cleaning of IBC totesSG4 High efficient tank washing nozzle for small to medium sized tanks
